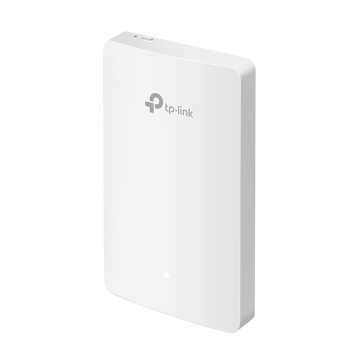

TP-Link EAP235-Wall Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point

Highlights:

* Omada SDN Ready: Ready for Omada SDN controller for centralized management and monitoring.

* Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds.†

* Four Gigabit Ports: 4 Gigabit Ethernet ports, one uplink and three access ports. PoE pass-through is available on one of the access port providing power for desk phones, cameras or other PoE devices.

* Centralized Management: Cloud access and Omada app for mobility and easy management.

* Elegant Appearance: Ultra slimmest and conspicuous design blends the access point into the walls of hotel rooms, hospitals, offices, and dormitories.

* Easy Installation and PoE Support: Easy-mount construction, compatible with US, EU and 86mm junction boxes with PoE support.

* Customer Oriented Guest Network: Along with multiple ways of login (SMS, Facebook Wi-Fi, Voucher, and customizable captive portal) allows guest access smoothly and friendly.

* Advanced Wireless Tech: Optimize network performance with airtime fairness, band steering, and beamforming technologies.

TP-Link EAP235-Wall Omada Access Point Specifications:

HARDWARE FEATURES

* Interface：
Uplink port: One 10/100/1000 Mbps Ethernet Port, accepts 802.3af or 802.3at PoE
Access ports: Three 10/100/1000 Mbps Ethernet Ports with one PoE power pass-thru port

* Physical Security Lock: Yes

* Button：Reset

* Power Supply：802.3af/802.3at PoE

* Power Consumption：
- 9.8 watts
- 24.4 watts with 13w PoE output

* Dimensions ( W x D x H )：143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)

* Antenna Type：
- Dual-Band Antennas
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 4 dBi

* Mounting: Wall Plate Mounting

WIRELESS FEATURES

* Coverage: 25㎡(300 ft²)

* Wireless Client Capacity: 200+

* Concurrent Clients: 200+

* Wireless Standards：IEEE 802.11a/b/g/n/ac

* Frequency：2.4GHz, 5GHz

* Signal Rate
5 GHz: Up to 867 Mbps
2.4 GHz: Up to 300 Mbps

* Transmit Power
≤21 dBm (2.4 GHz)
≤21 dBm (5 GHz)

* Wireless Functions：
- 16 SSIDs (Up to 8 SSIDs on each band)
- Enable/ disable SSID broadcast
- Automatic channel assignment
- Transmit power control (adjustable in 1 dBm step)
- QoS (WMM)
- Band steering
- Beamforming
- Load balance
- Rate limit
- Scheduled reboot
- Wireless scheduled on/off
- Wireless Statistics based on SSID, access point, or client

* Wireless Security
- Captive portal authentication
- Access control list
- Wireless MAC address filtering
- Wireless isolation between clients
- SSID to VLAN Mapping
- LAN port-based VLAN
- Rogue AP detection
- 802.1X EAP support
- 64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise

MANAGEMENT

* Omada App：Yes

* Centralized Management
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller

* Cloud Access：Yes

* Email Alerts: Yes

* LED ON/OFF Control: Yes

* Management MAC Access Control: Yes

* SNMP: v1, v2c, v3

* System Logging Local/Remote Syslog: Local/Remote Syslog

* SSH: Yes

* Web-based Management: HTTP/HTTPS

* L3 Management: Yes

* Multi-site Management: Yes

* Management VLAN: Yes

* Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller

OTHERS

* Certification: FCC, RoHS

* Package Contents
• Omada AC1200 Wireless Gigabit Wall Plate Access Point EAP235-Wall
• Installation guide
• Mounting screw

* System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10

* Environment
- Operating Temperature: 0–40 ℃ (32–104 ℉)
- Storage Temperature: -40–70 ℃ (-40–158 ℉)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
