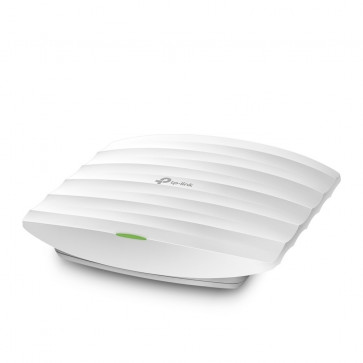

TP-Link Omada EAP245 AC1750 Wireless Dual Band Gigabit Ceiling Mount Access Point

Highlights：

* Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz totals 1750 Mbps Wi-Fi speeds.†

* Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.

* Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

* Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.§

* PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter included) for flexible installations.

* Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

* Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies.

TP-Link Omada EAP245 Gigabit Access Point Specifications：

HARDWARE FEATURES

* Interface：2 × Gigabit Ethernet (RJ-45) Ports

* Physical Security Lock: Yes

* Button：Reset

* Power Supply：
- 802.3af/at PoE or
- 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)

* Power Consumption：12.3 W

* Dimensions ( W x D x H )：8.1 × 7.1 × 1.5 in. (206 × 182 × 37 mm)

* Antenna Type：
- Internal Omni
2.4GHz: 3 × 4dBi
5GHz: 3 × 4dBi

* Mounting：Ceiling or Wall Mount (Mounting kit included)

WIRELESS FEATURES

* Wireless Standards: IEEE 802.11ac/n/g/b/a

* Frequency：2.4GHz, 5GHz

* Signal Rate
- 5GHz:Up to 1300Mbps
- 2.4GHz:Up to 450Mbps

* Wireless Functions：
- Multiple SSIDs（Up to 16 SSIDs, 8 for each band）
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control （Adjust Transmit Power on dBm）
- QoS(WMM)
- MU-MIMO
- Seamless Roaming*
- Omada Mesh*
- Band Steering
- Load Balance
- MU-MIMO
- Airtime Fairness
- Beamforming
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client

* Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK

* Transmission Power
FCC:
≤25dBm(2.4GHz)
≤27dBm(5GHz)

MANAGEMENT
* Omada App：Yes

* Centralized Management
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

* Cloud Access: Yes.

* Email Alerts: Yes

* LED ON/OFF Control: Yes

* Management MAC Access Control: Yes

* SNMP: v1, v2c

* System Logging Local/Remote Syslog: Yes

* SSH: Yes

* Web-based Management: HTTP/HTTPS

* L3 Management: Yes

* Multi-site Management: Yes

* Management VLAN: Yes

* Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller

OTHERS

* Certification: FCC, RoHS

* Package Contents
- AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP245
- Installation Guide

* System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

* Environment
- Operating Temperature: 0–40 ℃ (32–104 ℉)
- Storage Temperature: -40–70 ℃ (-40–158 ℉)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
