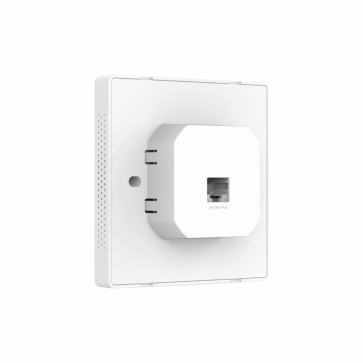

TP-Link EAP230-Wall Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point

Highlights:

* Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.†

* Gigabit Ports: 2 Gigabit Ethernet ports (1× uplink + 1× downlink).

* Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.

* Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

* Private Connection for Every Room: Designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories.

* Elegant Appearance: Unprecedented thin design with just 11 mm, the same size and shape as a light switch or power outlet faceplate to fit perfectly in any room.

* Easy Installation and PoE Support: Easy-mount construction, compatible with 86 mm & EU standard junction box, and 802.3af/at PoE support.

* Secure Guest Network: Along with multiple authentication options (SMS/Voucher, etc.) and abundant wireless security technologies.

TP-Link EAP230-Wall Omada Access Point Specifications:

HARDWARE FEATURES
---------------------------------------------------------
* Interface：
• Uplink: 1× 10/100/1000 Mbps Ethernet Port
• Downlink: 1× 10/100/1000 Mbps Ethernet Port

* Physical Security Lock: No

* Button: LED/Wi-Fi Button, RESET

* Power Supply：802.3af/802.3at PoE

* Max. Power Consumption: 7 W

* Dimensions ( W x D x H ): 3.4 × 3.4 × 1.2 in (86.8 × 86.8 × 30.2 mm)

* Antenna Type：
- 2 Dual-Band Antennas
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 3.6 dBi

* Mounting: Wall Plate Mounting

* Hardware Watch Dog: Yes

WIRELESS FEATURES
---------------------------------------------------------
* Coverage: 25㎡(300 ft²)

* Concurrent Clients: 200+

* Wireless Standards：IEEE 802.11b/g/n/ac

* Frequency：2.4GHz, 5GHz

* Signal Rate
5 GHz: Up to 867 Mbps
2.4 GHz: Up to 300 Mbps

* Wireless Functions：
• 16 SSIDs (Up to 8 SSIDs on each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Load Balance
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
• MU-MIMO
• Band Steering
• Beamforming

* Wireless Security
• Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Local LAN port based VLAN
• Rogue AP Detection
• 802.1X Support
• 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK

MANAGEMENT
---------------------------------------------------------
* Omada App：Yes

* Centralized Management
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller

* Cloud Access：Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

* Email Alerts: Yes

* LED ON/OFF Control: Yes

* Management MAC Access Control: Yes

* SNMP: v1, v2c

* System Logging Local/Remote Syslog: Local/Remote Syslog

* SSH: Yes

* Web-based Management: HTTP/HTTPS

* L3 Management: Yes

* Multi-site Management: Yes

* Management VLAN: Yes

* Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller

OTHERS
---------------------------------------------------------
* Certification: FCC, RoHS

* Package Contents
• Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point EAP230-Wall
• Installation Guide
• Mounting Screw

* System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10

* Environment
- Operating Temperature: 0–40 ℃ (32–104 ℉)
- Storage Temperature: -40–70 ℃ (-40–158 ℉)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
