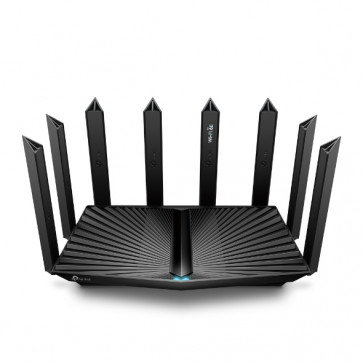

TP-Link Archer AXE95 AXE7800 Tri-Band Wi-Fi 6E Router

Highlight Features：

* AXE7800 Tri-Band WiFi – 7800 Mbps tri-band WiFi for ultra-fast browsing, 8K streaming, online gaming, and large file downloading, all at the same time.†

* WiFi 6E Unleashed – The brand new 6 GHz band brings more bandwidth, faster speeds, and near-zero latency.

* Ultra Connectivity – 1× 2.5 Gbps WAN/LAN port + 1× 1 Gbps WAN/LAN port + 3× Gigabit LAN ports and two USB ports ensure max flexibility and boosted throughput.

* Cutting-Edge Processing – Armed with a 1.7 GHz Quad-Core CPU.

* HomeShield – Customize your home network with enhanced security and control.*

* OneMesh™ – Creates a Mesh network by connecting to a TP-Link OneMesh Extender for seamless whole-home coverage.

* Compatible with Alexa – Control your router via voice commands and make your life smarter and easier with Amazon Alexa.

* Extensive Coverage – 8× antennas and Beamforming ensure broad coverage.

* More Vents, Less Heat – Improved vents area unleashes the full power of the whole machine.

TP-Link Archer AXE95 Wi-Fi 6E Router Specifications:

* Standards:
IEEE 802.11ax 6 GHz,
IEEE 802.11ax/ac/n/a 5 GHz,
IEEE 802.11ax/n/b/g 2.4 GHz

* WiFi Speeds: AXE7800
6 GHz: 2402 Mbps (802.11ax)
5 GHz: 4802 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)

* WiFi Range:
4 Bedroom Houses
8× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM
Improves transmission power to strengthen signal coverage

4T4R
Multiple streams in the same band strengthen the fault tolerance in transmission

* WiFi Capacity: Very High
Very High
Tri-Band
Allocate devices to different bands for optimal performance

4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

DFS
Access an extra band to reduce congestion

8 Streams
Connect your devices to more bandwidth

* Working Modes: Router Mode, Access Point Mode

* Network Security
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner

* Guest Network
1× 6 GHz Guest Network,
1× 5 GHz Guest Network,
1× 2.4 GHz Guest Network

* VPN server
OpenVPN Server
PPTP VPN Server
L2TP VPN Server

* VPN Client
Open VPN Client
PPTP VPN Client
L2TP VPN Client

* WiFi Encryption
WPA,
WPA2,
WPA3,
WPA/WPA2-Enterprise (802.1x)

* Processor: 1.7 GHz Quad-Core CPU

* Ethernet Ports:
1× 2.5 Gbps WAN/LAN Port
1× 1 Gbps WAN/LAN Port
3× 1 Gbps LAN Ports

* USB Support
1× USB 3.0 Port
1× USB 2.0 Port

Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32

Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server

* Buttons:
Power On/Off Button
Reset Button

* Power:
12 V ⎓ 3.3 A

* Protocols
IPv4
IPv6

* Service Kits: HomeShield

* OneMesh™: OneMesh™ Supported
OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.

* Parental Controls
HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports

* WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP

* Quality of Service: QoS by Device

* Cloud Service
Auto Firmware Upgrade
TP-Link ID
DDNS

* NAT Forwarding
Port Forwarding
Port Triggering
DMZ
UPnP
Virtual Server

* IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN

* DHCP
Address Reservation
DHCP Client List
Server

* DDNS:
TP-Link
NO-IP
DynDNS

* Management:
Tether App
Webpage

* System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

* Certification: FCC, RoHS

* Environment
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing

* Dimensions (W×D×H): 12.2 × 8.1 × 6.8 in(311 × 207 × 174 mm)

* Package Contents
Wi-Fi Router Archer AXE95
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
