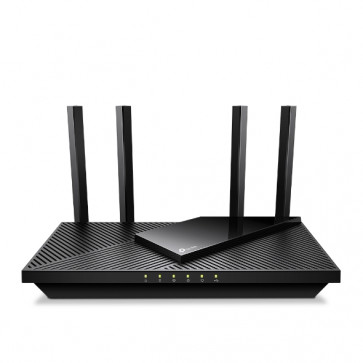

TP-Link Archer AX55 Pro AX3000 Multi-Gigabit Wi-Fi 6 Router

Highlight Features：

* Faster Dual-Band AX3000 WiFi: Up to 3.0 Gbps (2402 Mbps + 574 Mbps) WiFi for faster browsing, streaming, and downloading, all at the same time.

* 2.5G Multi-Gigabit Port: 1× 2.5 Gbps WAN/LAN port + 1× 1 Gbps WAN/LAN port + 3× Gigabit LAN ports + 1× USB 3.0 port ensure max flexibility and boosted throughput.

* Maximized Coverage: Four high-gain antennas equipped with Beamforming ensure vast coverage.

* Connect More Devices: OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices.‡

* VPN Client Supported: Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device.

* TP-Link HomeShield: Enhanced security defends against the latest cyber threats.△

* TP-Link OneMesh Supported: Flexibly Create Whole Home WiFi with Archer AX55 Pro by adding a OneMesh supported Range Extender.

* Compatible with Alexa: Control your router via voice commands and make your life smarter and easier with Amazon Alexa.

TP-Link Archer AX55 Pro Gigabit Wi-Fi 6 Router Specifications:

* Standards: Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz

* WiFi Speeds: AX3000
5 GHz: 2402 Mbps (802.11ax, HE160)
2.4 GHz: 574 Mbps (802.11ax)

* WiFi Range:
3 Bedroom Houses
• 4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

• Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

• High-Power FEM
Improves transmission power to strengthen signal coverage

* WiFi Capacity: High
• Dual-Band
Allocate devices to different bands for optimal performance

• OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

• Airtime Fairness
Improves network efficiency by limiting excessive occupation

• DFS
Access an extra band to reduce congestion

• 4 Streams
Connect your devices to more bandwidth

* Working Modes: Router Mode, Access Point Mode

* Network Security
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

HomeShield Security
--------------------------
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner

* Guest Network
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network

* VPN Client
• OpenVPN
• PPTP
• L2TP

* WiFi Encryption
• WPA3*
• WPA2
• WPA
• WPA/WPA2-Enterprise (802.1x)

* Processor: Dual-Core CPU

* Ethernet Ports:
• 1× 2.5 Gigabit WAN/LAN Port
• 1× Gigabit WAN/LAN Port
• 3× Gigabit LAN Ports

* USB Support
1× USB 3.0 Port

Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32

Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server

* Buttons:
Wi-Fi/WPS Button
Power On/Off Button
Reset Button

* Power:
• 12 V/ 2 A (US Version)
• 12 V/ 1.5 A (EU Version)

* Protocols
IPv4
IPv6

* Service Kits: HomeShield

* OneMesh™: OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.

* EasyMesh: Mesh networking creates smooth, fast, stable roaming. Archer AX55 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability.

* Parental Controls
HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports

* WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP

* Quality of Service: QoS by Device

* Cloud Service
Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS

* NAT Forwarding
Virtual Servers
Port Forwarding
Port Triggering
DMZ
UPnP

* IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN

* DHCP
Address Reservation
DHCP Client List
Server

* DDNS:
TP-Link
NO-IP
DynDNS

* Management:
Tether App
Webpage

* System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

* Certification: FCC, CE, RoHS

* Environment
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing

* WiFi Transmission Power
• CE:
<20dBm(2.4GHz)
<23dBm (5.15GHz~5.25GHz & 5.25GHz~5.35GHz)
<30dBm (5.47GHz~5.725GHz)
• FCC:
<30dBm (2.4GHz)
<30dBm(5.15GHz~5.25GHz&5.725GHz~5.850GHz)
<24dBm (5.25GHz~5.35GHz&5.47GHz~5.725GHz)

* WiFi Reception Sensitivity
• 2.4 GHz:
11ac VHT20 MCS0:-97dBm, 11ac VHT20 MCS11: -74dBm,
11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -70dBm,
11ax HE20 MCS0: -96dBm, 11ax HE20 MCS11: -66dBm,
11ax HE40 MCS0: -93dBm, 11ac HE40 MCS11: -63dBm
• 5 GHz:
11ac VHT20 MCS0: -97dBm, 11ac VHT20 MCS11: -74dBm,
11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -69dBm,
11ac VHT80 MCS0: -90dBm, 11ac VHT80 MCS11: -65dBm,
11ax HE20 MCS0: -97dBm, 11ax HE20 MCS11: -66dBm,
11ax HE40 MCS0: -94dBm, 11ax HE40 MCS11: -63dBm,
11ax HE80 MCS0: -90dBm, 11ax HE80 MCS11: -61dBm,
11ax HE160 MCS0: -87dBm, 11ax HE160 MCS11: -58dBm

* Dimensions (W×D×H): 10.2 × 5.3 × 1.5 in(261.1 × 134.5 × 41.0 mm)

* Package Contents
Wi-Fi Router Archer AX55 Pro
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
