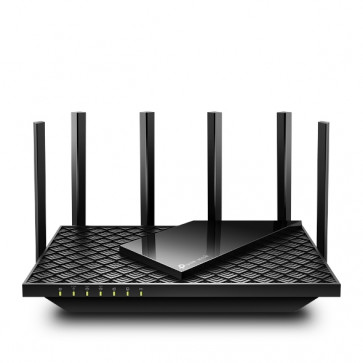

TP-Link Archer AXE75 AXE5400 Tri-Band Gigabit Wi-Fi 6E Router
Availability: In stock
Highlight Features:
* AXE5400 Tri-Band – AXE5400 Tri-Band Wi-Fi delivers Wi-Fi speeds up to 5400 Mbps.†
* Cutting-Edge Processing – Armed with a 1.7 GHz Quad-Core CPU.
* SuperSpeed USB 3.0 – Up to 10× faster transfer speeds than USB 2.0.
* Wi-Fi 6E Unleashed – The brand new 6 GHz band brings more bandwidth, faster speeds, and near-zero latency.
* HomeShield – Customize your home network with enhanced security and control.*
* OneMesh™ – Creates a Mesh network by connecting to a TP-Link OneMesh Extender for seamless whole-home coverage.
* Connect More Devices—OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices.†
* Ultra-Low Latency—Enables more responsive gaming and video chatting.
* Compatible with Alexa—Control your router via voice commands and make your life smarter and easier with Amazon Alexa.
TP-Link Archer AXE75 Gigabit Wi-Fi 6E Router Specifications:
* Standards:
IEEE 802.11ax 6 GHz,
IEEE 802.11ax/ac/n/a 5 GHz,
IEEE 802.11ax/n/b/g 2.4 GHz
* WiFi Speeds: AXE5400
6 GHz: 2402 Mbps (802.11ax)
5 GHz: 2402 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)
* WiFi Range:
2-3 Bedroom Houses
6× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
High-Power FEM
Improves transmission power to strengthen signal coverage
* WiFi Capacity: Very High
Tri-Band
Allocate devices to different bands for optimal performance
OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
DFS
Access an extra band to reduce congestion
6 Streams
Connect your devices to more bandwidth
* Working Modes: Router Mode, Access Point Mode
* Network Security
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
HomeShield Security
--------------------------
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
* Guest Network
1× 6 GHz Guest Network,
1× 5 GHz Guest Network,
1× 2.4 GHz Guest Network
* VPN server
OpenVPN Server
PPTP VPN Server
L2TP VPN Server
* VPN Client
Open VPN Client
PPTP VPN Client
L2TP VPN Client
* WiFi Encryption
• WPA3*
• WPA2
• WPA
• WPA/WPA2-Enterprise (802.1x)
* Processor: 1.7 GHz Quad-Core CPU
* Ethernet Ports:
1× Gigabit WAN Port
4× Gigabit LAN Ports
* USB Support
1× USB 3.0 Port
Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32
Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server
* Buttons:
Wi-Fi On/Off Button
Power On/Off Button
LED On/Off Button
WPS Button
Reset Button
* Power:
• 12 V/ 2.5 A
* Protocols
IPv4
IPv6
* Service Kits: HomeShield
* OneMesh™: OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
* EasyMesh: Mesh networking creates smooth, fast, stable roaming. Archer AX55 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability.
* Parental Controls
HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports
* WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP
* Quality of Service: QoS by Device
* Cloud Service
Auto Firmware Upgrade
TP-Link ID
DDNS
* NAT Forwarding
Port Forwarding
Port Triggering
DMZ
UPnP
Virtual Server
* IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
* DHCP
Address Reservation
DHCP Client List
Server
* DDNS:
TP-Link
NO-IP
DynDNS
* Management:
Tether App
Webpage
* System Requirements
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
* Certification: FCC, RoHS
* Environment
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
* WiFi Transmission Power
FCC: ≤29dBm (2.4 GHz), ≤28dBm (5 GHz), ≤22dBm (6 GHz)
CE: ≤17dBm (2.4 GHz), ≤27dBm (5 GHz), ≤20dBm (6 GHz)
* WiFi Reception Sensitivity
2.4 GHz:
11ax HE20 MCS0:-95dBm, 11ax HE20 MCS11:-64dBm
11ax HE40 MCS0:-92dBm, 11ax HE40 MCS11:-62dBm
5 GHz:
11ax HE20 MCS0:-94dBm, 11ax HE20 MCS11:-63dBm
11ax HE40 MCS0:-91dBm, 11ax HE40 MCS11:-60dBm
11ax HE80 MCS0:-88dBm, 11ax HE80 MCS11:-57dBm
11ax HE160 MCS0:-85dBm, 11ax HE160 MCS11:-54dBm
6 GHz:
11ax HE20 MCS0:-93dBm, 11ax HE20 MCS11:-62dBm
11ax HE40 MCS0:-90dBm, 11ax HE40 MCS11:-59dBm
11ax HE80 MCS0:-87dBm, 11ax HE80 MCS11:-56dBm
11ax HE160 MCS0:-84dBm, 11ax HE160 MCS11:-53dBm
* Dimensions (W×D×H): 10.7 × 5.8 × 1.9 in(272.5 × 147.2 × 49.2 mm)
* Package Contents
Wi-Fi Router Archer AXE75
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
