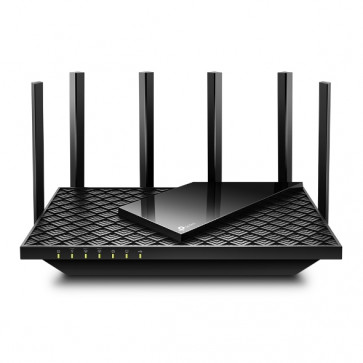

TP-Link Archer AX75 AX5400 Tri-Band Wi-Fi 6 Router

Highlight Features：

* AX5400 Tri-Band - AX5400 Tri-Band Wi-Fi 6 delivers Wi-Fi speeds up to 5400 Mbps.

* Next-Gen WiFi 6 - Featured with HE160 on the 5 GHz band to enable 4.8 Gbps ultra-fast connections.

* Cutting-Edge Processing - Armed with a 1.7 GHz Quad-Core CPU.

* Connect More Devices-OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices.

* Ultra-Low Latency—Enables more responsive gaming and video chatting.

* OneMeshTM - Creates a Mesh network by connecting to a TP-Link OneMesh router for seamless whole-home coverage.

* HomeShield - Customize your home network with enhanced security and control.

* SuperSpeed USB 3.0 - Up to 10x faster transfer speeds than USB 2.0.

TP-Link Archer AX75 Gigabit Wi-Fi 6 Router Specifications:

* Standards: Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz

* WiFi Speeds: AX5400
5 GHz: 2402 Mbps (802.11ax)
5 GHz: 2402 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)

* WiFi Range:
3 Bedroom Houses
6× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM
Improves transmission power to strengthen signal coverage

* WiFi Capacity: Very High
Tri-Band
Allocate devices to different bands for optimal performance

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

DFS
Access an extra band to reduce congestion

6 Streams
Connect your devices to more bandwidth

* Working Modes: Router Mode, Access Point Mode

* Network Security
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

HomeShield Security
--------------------------
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner

* Guest Network
1× 5 GHz-1 Guest Network
1× 5 GHz-2 Guest Network
1× 2.4 GHz Guest Network

* VPN server
OpenVPN Server
PPTP VPN Server
L2TP VPN Server

* VPN Client
Open VPN Client
PPTP VPN Client
L2TP VPN Client

* WiFi Encryption
• WPA3*
• WPA2
• WPA
• WPA/WPA2-Enterprise (802.1x)

* Processor: 1.7 GHz Quad-Core CPU

* Ethernet Ports:
1× Gigabit WAN Port
4× Gigabit LAN Ports

* USB Support
1× USB 3.0 Port

Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32

Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server

* Buttons:
Wi-Fi On/Off Button
Power On/Off Button
LED On/Off Button
WPS Button
Reset Button

* Power:
• 12 V/ 2.5 A

* Protocols
IPv4
IPv6

* Service Kits: HomeShield

* OneMesh™: OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.

* EasyMesh: Mesh networking creates smooth, fast, stable roaming. Archer AX55 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability.

* Parental Controls
HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports

* WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP

* Quality of Service: QoS by Device

* Cloud Service
Auto Firmware Upgrade
TP-Link ID
DDNS

* NAT Forwarding
Port Forwarding
Port Triggering
DMZ
UPnP
Virtual Server

* IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN

* DHCP
Address Reservation
DHCP Client List
Server

* DDNS:
TP-Link
NO-IP
DynDNS

* Management:
Tether App
Webpage

* System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

* Certification: FCC, RoHS

* Environment
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing

* WiFi Transmission Power
FCC: <24dBm (5.25GHz~5.35GHz&5.47GHz~5.725GHz)
<28dBm (5.15GHz~5.25GHz&5.725GHz~5.825GHz)
<29dBm (2.4GHz)

* WiFi Reception Sensitivity
2.4 GHz:
11ac VHT20 MCS0:-97dBm, 11ac VHT20 MCS11: -66dBm,
11ac VHT40 MCS0:-95dBm, 11ac VHT40 MCS11:-64dBm,
11ax HE20 MCS0:-95dBm, 11ax HE20 MCS11:-64dBm,
11ax HE40 MCS0:-92dBm, 11ac HE40 MCS11:-62dBm
5 GHz:
11ac VHT20 MCS0:-91dBm, 11ac VHT20 MCS11:-60dBm,
11ac VHT40 MCS0:-89dBm, 11ac VHT40 MCS11:-57dBm,
11ac VHT80 MCS0:-86dBm, 11ac VHT80 MCS11:-54dBm,
11ac VHT160 MCS0:-84dBm, 11ac VHT160 MCS11:-53dBm,
11ax HE20 MCS0:-90dBm, 11ax HE20 MCS11:-60dBm,
11ax HE40 MCS0:-88dBm, 11ax HE40 MCS11:-57dBm,
11ax HE80 MCS0:-85dBm, 11ax HE80 MCS11:-54dBm,
11ax HE160 MCS0:-83dBm, 11ax HE160 MCS11:-53dBm

* Dimensions (W×D×H): 10.7 × 5.8 × 1.9 in(272.5 × 147.2 × 49.2 mm)

* Package Contents
Wi-Fi Router Archer AX75
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
