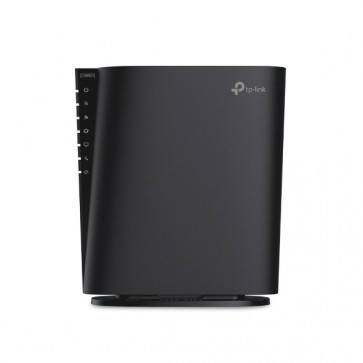

TP-Link Archer AX80 AX6000 8-Stream Wi-Fi 6 Router with 2.5G Port
* TP-Link WiFi 6 Router
* Up to 6.0 Gbps (4804 Mbps + 1148 Mbps) WiFi
* 2.5G Multi-Gigabit Port
* TP-Link HomeShield
* TP-Link OneMesh Supported
* Compatible with Alexa
Availability: In stock
TP-Link Archer AX80 Highlight Features:
* Lightning-Fast AX6000 WiFi: Up to 6.0 Gbps (4804 Mbps + 1148 Mbps) WiFi for faster browsing, streaming, and downloading, all at the same time.1
* 2.5G Multi-Gigabit Port: 1× 2.5 Gbps WAN/LAN port + 1× 1 Gbps WAN/LAN port + 3× Gigabit LAN ports + 1× USB 3.0 port ensure max flexibility and boosted throughput.
* Maximized Coverage: Four dual-band high-gain antennas equipped with Beamforming ensure vast coverage.
* More Devices with Less Lag: OFDMA and MU-MIMO technology deliver data to multiple devices simultaneously.1
* Powerful CPU: Top-notch quad-core processor ensures fast transmission speeds and smooth operation of numerous devices and applications.
* VPN Client Supported: Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device.
* TP-Link HomeShield: Enhanced security defends against the latest cyber threats.5
* TP-Link OneMesh Supported: Flexibly Create Whole Home WiFi with Archer AX80 by adding a OneMesh-supported Range Extender.
* Compatible with Alexa: Control your router via voice commands and make your life smarter and easier with Amazon Alexa.
TP-Link Archer AX80 Router Specifications:
* Standards/Wi-Fi 6
• IEEE 802.11ax/ac/n/a 5 GHz
• IEEE 802.11ax/n/b/g 2.4 GHz
* WiFi Speeds: AX6000
• 5 GHz: 4804Mbps (802.11ax, HE160)
• 2.4 GHz: 1148 Mbps (802.11ax)
* WiFi Range/3+ Bedroom Houses
• 4× Dual-Band High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
• Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
• High-Power FEM
Improves transmission power to strengthen signal coverage
* WiFi Capacity/High
• Dual-Band
Allocate devices to different bands for optimal performance
• OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
• Airtime Fairness
Improves network efficiency by limiting excessive occupation
• DFS
Access an extra band to reduce congestion
• 8 Streams
Connect your devices to more bandwidth
* Working Modes
• Router Mode
• Access Point Mode
SECURITY
* Network Security
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
* Guest Network
• 1× 5 GHz Guest Network
• 1× 2.4 GHz Guest Network
* VPN Server
• OpenVPN
• PPTP
• L2TP
* VPN Client
• OpenVPN
• PPTP
• L2TP
* WiFi Encryption:
• WPA3
• WPA2
• WPA
• WPA/WPA2-Enterprise (802.1x)
HARDWARE
* Ethernet Ports
• 1× 2.5 Gigabit WAN/LAN Port
• 1× Gigabit WAN/LAN Port
• 3× Gigabit LAN Ports
*USB Support
1× USB 3.0 Port
USB Sharing:
• FTP Server
• Media Server
• Samba Server
* Buttons:
• LED On/Off and Wi-Fi On/Off Combo Button
• WPS Button
• Power On/Off Button
• Reset Button
* Power: • 12 V/2 A
SOFTWARE
* Protocols
• IPv4
• IPv6
* Service Kit: HomeShield
* OneMesh™: OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
* Parental Controls
HomeShield Parental Controls
• Custom Profiles
• Professional Content Filter Library
• Family Time
• Bedtime
• Off Time
• Time Rewards
• Family Online Time Ranking
• Pause the Internet
• Weekly and Monthly Reports
* WAN Type
• Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP
* Quality of Service: QoS by Device
* Cloud Service
- Auto Firmware Upgrade
- OTA Firmware Upgrade
- TP-Link ID
- DDNS
* NAT Forwarding
• Port Forwarding
• Port Triggering
• DMZ
• UPnP
* IPTV
• IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN
* DHCP
• Address Reservation
• DHCP Client List
• Server
* DDNS:
• TP-Link
• NO-IP
• DynDNS
* Management: Deco APP, Webpage
* Dimensions (W×D×H): 7.9 × 7.4 × 2.3 in (200 × 189 × 59 mm)
* Package Contents
• Wi-Fi Router Archer AX80
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
* Certifications: CE, RoHS, JPA JRF VCCI
* Environment
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
