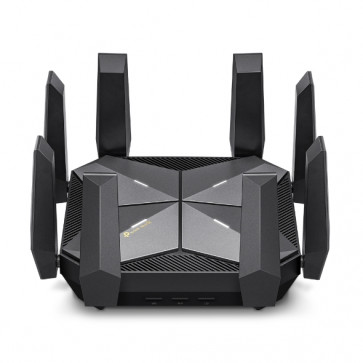

TP-Link Archer AXE300 AXE16000 Quad-Band 16-Stream Wi-Fi 6E Router with Two 10G Ports

Highlight Features：

* Our Fastest Wi-Fi 6E and Wi-Fi 6 Router to Date: Up to 15.6 Gbps Quad-Band WiFi for faster browsing, streaming, and downloading, all at the same time.1

* WiFi 6E Unleashed: The brand new 6 GHz band brings more bandwidth, faster speeds, and near-zero latency.

* Two 10G Ports: 1× 10 Gbps WAN/LAN port + 1× 10 Gbps Ethernet/Fiber Combo WAN/LAN port + 1× 2.5 Gbps WAN/LAN port + 4× Gigabit LAN ports + 1× USB 3.0 port ensure max flexibility and boosted throughput.§

* Powerful CPU: 2.0 GHz quad-core processor and 1 GB RAM ensure fast transmission speeds and smooth operation of numerous devices and applications.

* Maximized Coverage: 8× high-performance dual-band antennas along with Beamforming boost WiFi signals throughout your home.

* More Devices with Less Lag: OFDMA and MU-MIMO technology deliver data to multiple devices, simultaneously.1

* TP-Link HomeShield: Enhanced security defends against the latest cyber threats.5

TP-Link Archer AXE300 Wi-Fi 6E Router Specifications:

* Standards:
IEEE 802.11ax 6 GHz,
IEEE 802.11ax/ac/n/a 5 GHz,
IEEE 802.11ax/n/b/g 2.4 GHz

* WiFi Speeds: AXE16000
• 6 GHz: 4804 Mbps (802.11ax)
• 5 GHz-1: 4804 Mbps (802.11ax)
• 5 GHz-2: 4804 Mbps (802.11ax)
• 2.4 GHz: 1148 Mbps (802.11ax)

* WiFi Range:
4 Bedroom Houses
8× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM
Improves transmission power to strengthen signal coverage

4T4R
Multiple streams in the same band strengthen the fault tolerance in transmission

* WiFi Capacity: Very High
Quad-Band
Allocate devices to different bands for optimal performance

4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

DFS
Access an extra band to reduce congestion

16 Streams
Connect your devices to more bandwidth

* Working Modes: Router Mode, Access Point Mode

* Network Security
• SPI Firewall
• Access Control
• IP & MAC Binding
• Application Layer Gateway

• HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner

* Guest Network
• 1× 6 GHz Guest Network
• 1× 5 GHz-1 Guest Network
• 1× 5 GHz-2 Guest Network
• 1× 2.4 GHz Guest Network

* VPN server
OpenVPN Server
PPTP VPN Server
L2TP VPN Server

* VPN Client
Open VPN Client
PPTP VPN Client
L2TP VPN Client

* WiFi Encryption
• WPA3*
• WPA2
• WPA
• WPA/WPA2-Enterprise (802.1x)

* Processor: 2.0 GHz Quad-Core CPU

* Ethernet Ports:
• 1× 10 Gbps RJ45/SFP+ Combo WAN/LAN Port§
• 1× 10 Gbps WAN/LAN Port§
• 1× 2.5 Gbps WAN/LAN Port§
• 4× 1 Gbps LAN Ports

* USB Support
1× USB 3.0 Port

• Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32

• Supported Functions:
FTP Server
Media Server
Samba Server

* Buttons:
• Power On/Off Button
• Wi-Fi On/Off Button
• LED On/Off Button
• WPS Button
• Reset Button

* Power:
• 12 V/ 5 A

* Protocols
IPv4
IPv6

* Service Kits: HomeShield

* OneMesh™: OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.

* EasyMesh: Mesh networking creates smooth, fast, stable roaming. Archer AX55 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability.

* Parental Controls
HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports

* WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP

* Quality of Service: QoS by Device

* Cloud Service
Auto Firmware Upgrade
TP-Link ID
DDNS

* NAT Forwarding
Port Forwarding
Port Triggering
DMZ
UPnP
Virtual Server

* IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN

* DHCP
Address Reservation
DHCP Client List
Server

* DDNS:
TP-Link
NO-IP
DynDNS

* Management:
Tether App
Webpage

* System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

* Certification: FCC, RoHS

* Dimensions (W×D×H): 9.1 × 9.1 × 2.7 in(232 × 232 × 68 mm)

* Package Contents
• Wi-Fi Router Archer AXE300
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
