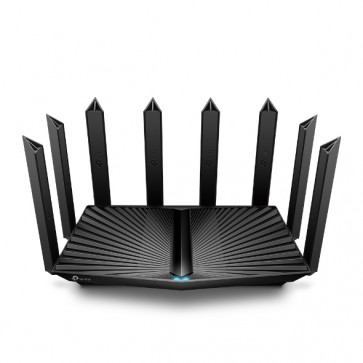

TP-Link Archer AX95 AX7800 Tri-Band 8-Stream Wi-Fi 6 Router

Highlight Features：

* Faster Tri-Band AX7800 WiFi 6: Up to 7.8 Gbps (4804 Mbps + 2402 Mbps + 574 Mbps) WiFi for faster browsing, streaming, and downloading, all at the same time.1

* Ultra Connectivity: 1× 2.5 Gbps WAN/LAN port + 1× 1 Gbps WAN/LAN port + 3× Gigabit LAN ports + 2× USB ports ensure max flexibility and boosted throughput.

* Maximized Coverage: Eight high-gain antennas equipped with Beamforming ensure vast coverage.

* More Devices with Less Lag: OFDMA and MU-MIMO technology deliver data to multiple devices, simultaneously.1

* Powerful CPU: 1.7 GHz quad-core processor ensures fast transmission speeds and smooth operation of numerous devices and applications.

* OneMesh™: Creates a Mesh network by connecting to a TP-Link OneMesh Extender for seamless whole-home coverage.

* HomeShield: Customize your home network with enhanced security and control.5

* Refined Security: WPA3 reinforces Wi-Fi encryption and guest network for improved security.

TP-Link Archer AX95 Wi-Fi 6 Router Specifications:

* Standards: Wi-Fi 6
• IEEE 802.11ax/ac/n/a 5 GHz
• IEEE 802.11ax/n/b/g 2.4 GHz

* WiFi Speeds: •AX7800
• 5 GHz-1: 4804 Mbps (802.11ax, HE160)
• 5 GHz-2: 2402 Mbps (802.11ax)
• 2.4 GHz: 574 Mbps (802.11ax)

* WiFi Range:
4 Bedroom Houses
8× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM
Improves transmission power to strengthen signal coverage

4T4R
Multiple streams in the same band strengthen the fault tolerance in transmission

* WiFi Capacity: Very High
Tri-Band
Allocate devices to different bands for optimal performance

4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

DFS
Access an extra band to reduce congestion

8 Streams
Connect your devices to more bandwidth

* Working Modes: Router Mode, Access Point Mode

* Network Security
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner

* Guest Network
• 1× 5 GHz-1 Guest Network
• 1× 5 GHz-2 Guest Network
• 1× 2.4 GHz Guest Network

* VPN server
• OpenVPN
• PPTP
• L2TP

* VPN Client
• OpenVPN
• PPTP
• L2TP

* WiFi Encryption
• WPA
• WPA2
• WPA3
• WPA/WPA2-Enterprise (802.1x)

* Processor: 1.7 GHz Quad-Core CPU

* Ethernet Ports:
• 1× 2.5 Gbps WAN/LAN Port
• 1× 1 Gbps WAN/LAN Port
• 3× 1 Gbps LAN Ports

* USB Support
• 1× USB 3.0 Port
• 1× USB 2.0 Port

• Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32

• Supported Functions:
FTP Server
Media Server
Samba Server

* Buttons:
• LED On/Off Button
• WPS Button
• Wi-Fi On/Off Button
• Power On/Off Button
• Reset Button

* Power:
12 V ⎓ 3.3 A

* Protocols
IPv4
IPv6

* Service Kits: HomeShield

* OneMesh™:
OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.

* Parental Controls
HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports

* WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP

* Quality of Service: QoS by Device

* Cloud Service
Auto Firmware Upgrade
TP-Link ID
DDNS

* NAT Forwarding
Port Forwarding
Port Triggering
DMZ
UPnP

* IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN

* DHCP
Address Reservation
DHCP Client List
Server

* DDNS:
TP-Link
NO-IP
DynDNS

* Management:
Tether App
Webpage

* System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

* Certification: FCC, CE, RoHS

* Environment
• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

* Dimensions (W×D×H): 10.9 × 7.2 × 2.3 in (277.3 × 183.9 × 57.3 mm)

* Package Contents
• Wi-Fi Router Archer AX95
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
