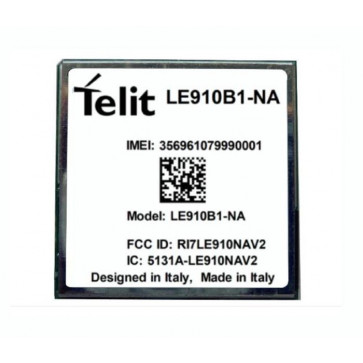

Telit LE910B1-NA (LTE Cat.1)

* Telit LTE Cat.1 module


* Target market: North America (AT&T)


* Support 4G LTE B2, B4, B5, B12, B13


* LTE DL 10Mbps, UL 5Mbps


* 144-pin LGA Interface


* VoLTE Available

Sign up for price alert Sign up to get notified when this product is back in stock

Availability: Out of stock

$89.00

Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!

Details
Details

Telit LE910B1-NA LGA Module belongs to LE910 Series of Cat. 1 modules, which are optimized for LTE low category networks and are available in single mode and 3G fallback options. In addition to VoLTE support, the LE910Cat.1 series are swappable with other modules in the xE910 family.


Telit LE910B1-NA delivers 4G radio access technology in the 28.2 x 28.2 x 2.2 mm family form factor and supports downlink up to 10Mbps and uplink up to 5Mbps. It has a brother model Telit LE910-NA1 which supports same LTE bands for AT&T & T-mobile carrier in the USA but VoLTE is unavailable.


Telit LE910B1-NA Module Specs:

* Telit LTE Cat.1 module

* Target market: North America (AT&T)

* Support 4G Frequency bands(MHz): B2(1900), B4(AWS1700), B5(850), B12/B13(700)

* Support 3G Bands: B2(1900), B5(850)

* Support 2G Bands: No

* VoLTE: Yes

* LTE FDD Cat.1, 3GPP release 9 compliant

* Rx Diversity and MIMO DL 2x2

* SIM application Tool Kit 3GPP TS 51.014

* Serial port multiplexer 3GPP TS27.010

* SMS over IMS

* Built in UDP/TCP/FTP/SMTP stack

* Control via AT commands according to 3GPP TS 27.005, 27.007 and Telit Custom AT commands

* Data rates: Uplink up to 5 Mbps, Downlink up to 10 Mbps

* Interfaces
- 144-pin LGA Interface
- 10 I/O ports (@1.8V) including multifunctional I/Os
- USB 2.0 HS
- UART
- 1.8 V / 3 V SIM interface
- RF pad, RX Div. & MIMO pad

* Output power
- Class 3 (0.2 W, 23 dBm) @ LTE
- Class 3 (0.25 W, 23 dBm) @ 3G
- Class 4 (2W) @ GSM 900
- Class 1 (1W) @ DCS 1800

* Supply voltage
- Nominal: 3.8 VDC
- Range: 3.3 - 4.2 VDC

* Software and Application Development/AppZone application resources
- Programming language: C
- IDE: Eclipse
- Dedicated File System: 5 MB
- Separate App. RAM Space: 2 MB

* Operating and Storage Temperature Range: -40°C to +85°C

* REACH and RoHS compliant

* Dimensions 28.2 x 28.2 x 2.2 mm

* Approvals
- FCC/IC, PTCRB, GCF (North America)
- R&TTE/GCF (Europe)
- Radio/Telecom Biz Act (Japan)
