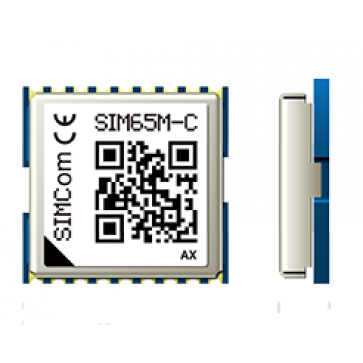

SIMCOM SIM65M-C GNSS Module

SIMCOM SIM65M-C is a high performance and reliable GNSS module. It is a GNSS module integrated with GPS &GLONASS &BDS & Galileo & QZSS system in a LCC type with ICOE’s high sensitivity navigation engine, which allows customer to achieve industry’s high level sensitivity, accuracy, and Time-to-First-Fix (TTFF).

SIMCOM SIM65M-C provides simultaneous GPS, GLONASS ,BDS, Galileo and QZSS open service L1 reception capability. With 64 GNSS receiver channels, SIM65M-C can acquire and track any mix of multiple satellite signals. SIM65M-C achieves the highest performance and fully meets the industrial standard.

SIMCOM SIM65M-C GNSS Module Specifications:

* Features
- Support GPS/GLONASS/BDS/Galileo/QZSS(L1 Band Receiver 1575.42MHz)
- Support SBAS ranging(WAAS, EGNOS, GAGAN, MSAS)
- Support Jamming Detection
- Low-noise amplifier has been integrated

* Performance data
- Receiver type: 64 channels GNSS receiver
- Max. update rate: 5Hz
- Sensitivity¹:
Tracking: -165dBm
Reacquisition: -159dBm
Cold starts: -149dBm
- Time-To-First Fix²
Cold starts: 20s
Warm start: 25s
Hot starts: 1s
EPO Assist: 3.5s
- Accuracy:
Automatic Position³: 2 m
Speed⁴: 0.1m/s
Operation temperature5: -40℃~+85

* Electrical data
- Power supply:
SIM65M-C(A0): 1.7V~3.6V
SIM65M-C-DCDC(A1): 1.7V~3.6V
- Backup power:

- Power consumption2, 6:
- Acquisition:
SIM65M-C(A0): 47mA
SIM65M-C-DCDC(A1): 18mA
- Tracking:
SIM65M-C(A0): 33mA
SIM65M-C-DCDC(A1): 14mA
- IDLE current:
SIM65M-C(A0): 10mA
SIM65M-C-DCDC(A1): 10mA
- Backup:
SIM65M-C(A0): 21uA
SIM65M-C-DCDC(A1): 21uA
Antenna type: Active and passive
Antenna power: External or internal VCC_RF

* Certifications(plan)
CE
RoHS/REACH

* Dimensions: 10.1*9.7*2.5mm

* Weight: 0.5g
