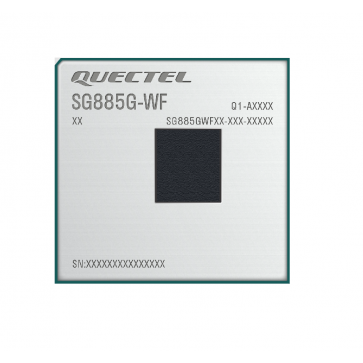

Quectel SG885G-WF Wi-Fi & BT Smart Module

Quectel SG885G-WF is Quectel's new generation of flagship Android smart module. Based on Qualcomm’s flagship IoT chipset QCS8550, with built-in octa-core high-performance Kryo™ CPU, Adreno™ 740 GPU, Adreno 1295 DPU, Adreno 8550 VPU, Hexagon™ DSP, and Spectra™ ISP, the module supports Wi-Fi 7, Bluetooth 5.3 and 2 × 2 Wi-Fi MIMO technology. Featuring powerful performance and rich multimedia functions, it is ideal for both industrial and consumer applications requiring high computing power, edge computing and multimedia functions.

A rich set of interfaces (such as LCM, camera, touch panel, I2S, PCIe, UART, USB, I2C, SPI, etc.) allow the module to serve a wide range of M2M applications, including video conference systems, live streaming devices, gaming, edge computing, robots, AR/VR, intelligent retail and smart safety.

Quectel SG885G-WF module Specifications:

* Product type: Smart module

* Dimensions: 49.0 × 51.0 × 4.25mm

* CPU: Kryo

* NPU: Dual eNPU V3, 48 TOPS

* Memory:
- 8 GB LPDDR5X + 128 GB UFS 4.0
- 12 GB LPDDR5X + 256 GB UFS 4.0
- 16 GB LPDDR5X + 256 GB UFS 4.0
- 16 GB LPDDR5X + 512 GB UFS 4.0

* OS: Android 13

* Supply voltage range: 3.55 V ~ 4.4 V, typ. 3.8 V

* Weight: 18.6g

* Operating temperature: -30°C ~ +75°C

* Interfaces:
- LCM: 2 × 4-lane MIPI DSI
- Camera: 6 × 4-lane MIPI CSI
- Touch panel: Supported
- Audio: SWR, Digital microphone, MI2S interfaces, HIFI I2S
- Video:
Encoder: 4K @ 120 fps; 8K @ 30 fps
Decoder: 4K @ 240 fps; 8K @ 60 fps
Native encode support for H.265 Main 10, H.265 Main, H.264 high formats
Native decode support for H.265 Main 10, H.265 Main, H.264 High, and VP9 profi le 2
- USB: × 1, both USB 3.1/ 2.0 are compliant
- I2C: X 10
- UART: × 1, debug UART
- SD Card: × 1, SD 3.0
- PWRKEY: X 1
- SPI: x 5
- ADC: x 2 General-purpose ADC interfaces
- GPIO: supported
- PWM: supported
- Motor driver: x 1
- Flashlight driver: 3 high-current fl ash LED drivers, which support both fl ash and torch modes
- WLED Sink: n/a
- Antenna: x 2, Wi-Fi & Bluetooth, Wi-Fi MIMO

* Enhanced Features:
- BT: Bluetooth 5.3(BR/EDR + BLE)
- WLAN: 2.4 & 5 & 6GHz, Wi-Fi 7, 802.11a/b/g/n/ac/ax/be, 2 × 2 Wi-Fi MIMO
- Charge function: Supported
- Dual LCDs: Supported
- Firmware upgrade: Via USB
- Recommended applications: Infotainment, live video, robotics, gaming, VR, 3D scanners, gym equipment, virtual coin mining diggers, ARM based computers and servers, etc.
