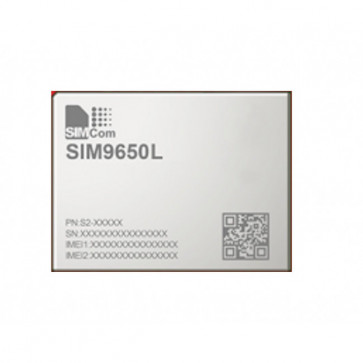

SIMCOM SIM9650L-W AI Smart Module

SIMCOM SIM9650L-W is a high efficiency AI smart module with Android 14 system, embedded with Octa-core 64-bit ARM V8 processor up to 2.7GHz and Adreno 643 GPU, supporting OpenGL ES 3.2 and OpenCL 2.0. The module contains DSP with Dual HVX and Hexagon Tensor Accelerator, more than 14 Tops AI ability. SIM9650L-W also integrates short distance communication, including Wi-Fi 6E and BT 5.2. It can support multiple high resolution cameras and dual screen displays, and has powerful high data transfer and multimedia processing capability.

SIMCOM SIM9650L-W has abundant interfaces and can be connected with camera, display screen, audio, sensors and other equipments. It supports multi-dimensional data collection and man-machine interfaces. The interfaces including MIPI_DSI/CSI/UART/SPI/I2C/GPIO/USB greatly expand the applications, and make the module suitable for smart POS, Logistics terminals, VR/AR devices, intelligent robots, vehicle devices, intelligent cockpit, intelligent information acquisition devices, industrial PDA and intelligent handheld terminals.

SIMCOM SIM9650L-W AI smart module Specifications:

* WLAN: WIFI 6E(2.4G/5G, 2x2 MU MIMO, 802.11 a/b/g/n/ac/ax) WLAN

* BT: BT 5.2

* Supply Voltage: 3.5V ~ 4.4V

* Memory:
- 64GB UFS + 4GB LPDDR4x
- 64GB UFS + 6GB LPDDR4x
- 128GB UFS + 8GB LPDDR4X

* Temperature Range: -35℃ ~ +75℃

* Dimensions: 42.5*56.5*2.95(mm)

* Form Factor: LGA

* Weight: Approx. 17g

* Media & Software Feature
- USB Drive: Win7/Win8/Win10
- Operating System: Android 14

* Video performance
- Encode: Up to 4K30 for H.264/H.265
- Decode: up to 4K60 for H.264/H.265/VP9
- Encode+Decode: 1080p60 decode and 1080p60 encode/4K30 decode + 1080p30 encode

* Audio Codec
EVRC，EVRC-B，EVRC-WB，G.711，G.729，PCM,EVS;
GSM-FR，GSM-EFR，GSM-HR;
AMR-NB，AMR-WB，QCELP

* Firmware Upgrade: USB/OTA/TF card

* Interface
LCM
------------
4-lane MIPI_DSI, D-PHY 1.2 or C-PHY 1.2; VESA DSC 1.2
FHD @60fps MIPI-DSI + 4K@60fps
Displayport: DisplayPort v1.4 over USB Type-C support Wi-Fi Miracast screen mirroring 4K @ 60 fps
Capacitive Touch Panel with I2C port

Camera
------------
4*4MIPI_CSI, data up to 2.5Gbps/lane 3*ISP, Max support 3*27 MP@24fps or 3*22 MP @30fps；
36MP + 27MP@24fps或36MP + 22MP@30 fps; 36MP@30fps

Audio: Requires external Codec chip

USB
------------
*4（optional）
USB0：USB 3.1 Type-C ，compatible USB 2.0，support DisplayPort 1.4 and USB & DP simultaneous；
USB1&2&3：support USB 2.0 ，Only master mode.

PCIe: *1，2-lane PCIe Gen 3，support NVMe
UART: *2 (Supports HD flow control MAX Mbps)
I2C: *8
I2S: *2
SPI: *1
ADC: *4
PWM: *2
GPIO: ≥*35
Antenna: Wi-Fi/BT
Charge: QC4.0(Option)

* Certification: RoHS*/REACH*/3C*/CE*/FCC*/IC*
