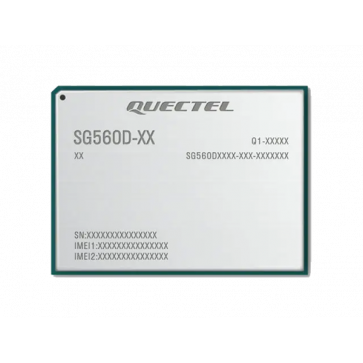

Quectel SG560D 5G Smart Module series
* Built-in Android 12 OS
* Worldwide 5G/4G/3G/2G coverage
* Supports Wi-Fi 6E & DBS, 802.11ax, 2 × 2 MU-MIMO
* Supports 5G & LTE MIMO technology for data rate and link reliability
* Multi-constellation GNSS receiver available for fast and accurate fixes in any environment, supporting L1 + L5 dual-band
* Supports 4K H.265/H.264 video encode and decode
* 14 TOPS computing power
* Supports PCIe interface
Availability: In stock
Quectel SG560D is a series of Quectel's new generation multi-mode 5G smart modules with built in Android 12 OS. Based on QCM6490 high-performance 64-bit octa-core processors with a built-in Adreno 643 GPU, it is ideal for both industrial and consumer applications requiring high data rates and multimedia functions. SG560D is available in four variants: SG560D-CE, SG560D-EM, SG560D-NA and SG560D-WF.
The module supports 3GPP Rel-15 technology, supports both 5G NSA and SA modes with 4G/3G fallback. In addition, the module supports Wi-Fi 6E & DBS, IEEE 802.11a/b/g/n/ac/ax, Wi-Fi 2 × 2 MU-MIMO and Bluetooth 5.2.
Quectel SG560D series supports 5G & LTE multi-user multiple-input multiple-output (MU-MIMO) technology. The use of multiple antennas at the receiver end at the same time and on the same frequency band greatly minimizes errors and optimizes the data speed. This module also combines high-speed wireless connectivity with embedded multi-constellation and high-sensitivity GNSS (GPS, GLONASS, BDS, NavIC, Galileo, QZSS, SBAS) receiver for positioning.
A rich set of interfaces (such as LCM, camera, touch panel, PCIe, UART, USB, I2C, and I2S) allow the module to serve a wide range of M2M applications including smart gateways, CPE, MiFi, MID, PND, POS, routers, multimedia terminals, smart phones, digital signage, industrial PDAs, etc.
Quectel SG560D 5G Smart Modules Specifications:
* Product type: 5G Smart Module
* Form factor: LGA
* Dimensions: 42.5×56.5× 2.95mm
* 5G Feature: 3GPP Release 15, DL 4 × 4 MIMO/UL 2 × 2 MIMO
* LTE Feature:
- LTE Cat 15,
- 3GPP Release 15, DL MIMO 4 × 4
#Quectel SG560D-CE
- Target Region: China
- 5G SA/NSA: n1/3/5/8/28/41/78/79;
- LTE: B1/3/5/8/34/38/39/40/41; WCDMA: B1/5/8
#Quectel SG560D-EM
- Target Region: EMEA/Europe/India/Korea/South Asia/Latin America/Australia/South Africa
- 5G SA/NSA: n1/3/5/7/8/20/28/38/40/41/77/78/79;
- LTE: B1/2/3/4/5/7/8/12/17/18/19/20/26/28/32/34/38/39/40/41/42;
- WCDMA: B1/2/4/5/6/8/19; GSM: B2/3/5/8
#Quectel SG560D-NA
- Target Region: North America
- 5G SA/NSA: n2/5/7/12/13/14/25/26/29/30/38/41/48/66/70/71/77/78;
- LTE: B2/4/5/7/12/13/14/17/25/26/29/30/38/41/42/43/46/48/66/71
#Quectel SG560D-J
- Target Region: Japan
- 5G SA/NSA:
- LTE:
#Quectel SG560D-WF (WiFi Module)
- Target Region: Global
- WF(Wi-Fi) only Wi-Fi & BT
* CPU:
- Qualcomm QCM6490 ARM Coretex technology 1 x Kryo670 Goldplus@ 2.7 GHz + 3 x Kryo670
- Gold@ 2.4GHz + 4 x Kryo670 Silver@ 1.9GHz
* GPU: Qualcomm® AdrenoTM 643 @ 812 MHz
* Memory: 4 GB LPDDR4X + 64 GB UFS
* Operating system: Andriod 12/13 /14(TBD)/15(TBD)
* Supply Voltage Range: 3.55 V ~ 4.4 V, typ. 4.0 V
* Weight (approx.): 12.0g
* Operating Temperature: -35 ° C ~ +75 ° C
* Data transmission:
- 5G SA: Max. 2.1 Gbps (DL)/ 900 Mbps (UL)
- 5G NSA Max. 2.5 Gbps (DL)/ 650 Mbps (UL)
- LTE(cat.18) Max. 1.2 Gbps (DL)/ 200 Mbps (UL)
- DC-HSPA+ Max. 42 Mbps (DL)/ 5.7 Mbps (UL)
- WCDMA Max. 384 kbps (DL)/ 384 kbps (UL)
- GSM: SG560D-EM: EDGE: 296Kbps (DL)/236.8Kbps (UL); GPRS: 107Kbps (DL)/85.6Kbps (UL)
* Interfaces
- LCM:
#1 × 4-lane MIPI_DSI, support up to 2.5 Gbps/ lane, 1200 × 2520 @ 144 fps;
#1 × DP over Type C, support up to 4K (3840 × 2160) @ 60 fps;
#Support Wi-Fi Miracast 4K @ 60fps
- Camera: 4 × 4-lane MIPI_CSI, Supports up to 2.5 Gbps/ lane; 3 × ISP, 3 × 27 MP @ 24 fps; or 3 × 22MP @ 30 fps ; or 36 MP + 27 MP @24 fps; or 36MP + 22MP @ 30 fps; or Max. 1×64 MP @ 30 fps
- Touch Panel: Capacitive touchscreen, I2C controls
- Audio: Needs external audio codec
- Video: Encode: 4K (H.264/ H.265) @ 30 fps/Decode: 4K (H.264/ H.265/ VP9) @ 60 fps
- USB: × 2, USB 3.1 Type-C with DisplayPort 1.4, compatible with USB 2.0; USB 2.0 Host
- I2C: Supported
- (U)SIM: × 2, Support 1.8/ 2.95 V (U)SIM cards, with (U)SIM card detection function; Support DSDS
- PWM × 2
- Motor Driver × 1
- Flashlight Driver × 1
- (U)SIM × 2 (1.8/ 2.95 V)
- UART × 3, supports 4 Mbps with Hardware Flow Contro
- SD Card × 1, SDIO 3.0, supports 4-bit SDIO
- PWRKEY: Supported
- SPI: Supported
- ADC/GPIO: Supported
- PWM x 1
- Motor Driver x 1
- Flashlight Driver x 1
- Antenna x × 8 (Cellular antenna × 5, Wi-Fi/ Bluetooth antenna × 1, Wi-Fi MIMO antenna × 1, GNSS antenna × 1)
* Enhanced Features
- BT: Bluetooth 2.1 EDR/3.0 HS/4.2 LE/5.2 LE
- WiFi: 2.4 & 5 & 6 GHz, 802.11a/b/g/n/ac/ax; Wi-Fi 6E, 2 × 2 MU-MIMO, DBS
- GNSS: GPS/GLONASS/BDS/NavIC/Galileo/QZSS/SBAS; L1 + L5
- Charge Function: Build-in Charge IC & Fuel Gauge, Qualcomm Quick Charge technology
- DSDS: Support Dual SIM Dual Standby
- Firmware Upgrade: Firmware Upgrade via USB or OTA
- Certifications: CE/RCM/UKCA/GCF*/CCC*/SRRC*/NAL*/FCC/IC/PTCRB*/Verizon*/AT&T*/T-Mobile
- Recommended Applications: Smart POS, smart home gateways, smart robots, smart wearables, safety, PDAs & tablets, vending machines, delivery lockers, telematics, mobile computing, in-car video streaming and entertainment systems, etc.
