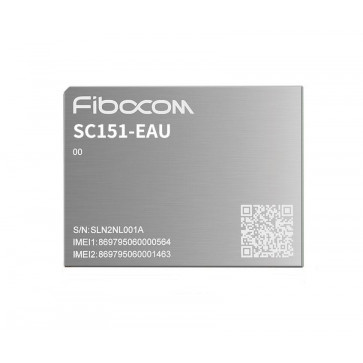

Fibocom SC151-EAU 5G Smart Module

Fibocom SC151-EAU is a 5G wireless communication module that uses the Qualcomm QCM4490 chipset platform. It features a Octa-core processor (2*A78@2.4GHz + 6*A55@2.0GHz) with a high-performance graphics engine Adreno 613.

It supports both 5G NSA and SA modes and is backward compatible with 4G/3G network. It supports 5G NR Sub-6GHz, DL 4x4 MIMO, UL 2x2 MIMO, as well as Wi-Fi 6E/ Bluetooth short-distance wireless transmission. Furthermore, the module supports multi-constellation GNSS receiver (GPS(L1+L5)/ GLONASS/ BeiDou) for high-performance positioning and navigation, while greatly simplifying product design.

Fibocom SC151 comes with the Android 13 operating system and a variety of interfaces such as MIPI, USB, UART, SPI, and I2C. These interfaces provide flexibility and easy integration to meet the diverse application demands of the IoT industry.

The Fibocom SC151 smart module can be used in various 5G IoT applications, such as IVI, smart ECRs, smart logistics terminal, VR, video monitor, body-worn camera, industrial handheld, drone, smart robot, and smart home. It serves as an optimal solution for the core system of wireless products worldwide.

Fibocom SC151-EAU 5G Smart Module Specifications：

* Product type: 5G Smart Module

* Target Region: Asia, Europe, Australia, Brazil

* Package: 636 LGA

* Processor: Qualcomm's QCM4490 2*A78@2.0GHz + 6*A55@2.0GHz

* GPU: Adreno™ 613 GPU

* Memory(Default): 4GB LPDDR4X+64GB UFS

* Dimension (mm): 42.5*56.5*2.85

* 5G NR Bands: n1/3/5/7/8/20/28/38/40/41/77/78/257/258

* LTE FDD: B1/2/3/4/5/7/8/20/28

* LTE TDD: B38/40/41

* WCDMA: B1/2/3/4/5/8

* WIFI: 2.4G/5G：Wi-Fi 6E, 802.11 a/b/g/n/ac/ax,（2X2 MIMO）

* BT: 5.2 BR/EDR/BLE

* GNSS: GPS(L1+L5)/GLONASS/Beidou

* OS: Android T

* Power Supply: DC 3.5 ～ 4.4V

* Weight: 9.6±0.1g

* Operating Temp: -30°C ~ +75°C

* Storage Temp: -40°C ~ +85°C

* 5Data Transmission
- 5G 2T4R 256Q Max. 2.3Gbps(DL)/Max. 900Mbps(UL)
- 5G 1T4R 256Q Max. 2.3Gbps(DL)/Max. 550Mbps(UL)
- LTE FDD (Mbps): Max 900(DL)/ 100(UL)
- LTE TDD (Mbps): Max 900(DL)/ 100(UL)
- UMTS/HSPA/HSPA+ (Mbps): Max. 42(DL)/Max. 5.7(UL)
- WIFI (Mbps) up to 2.4G

* Video Processing
- Video Encoding: 1080@60fps(H.264/H.265)
- Video Decoding: 1080@60fps(H.264/H.265,VP9)

* Interfaces
- UART/SPI(Mbps): 6 x UART up to 3
- I2C(Kbps): 16 x I2C up to 3.4Mbps
- USB: 1x USB3.1, Support OTG, Support DP over Type-C
- SDIO: 1 x SD 3.0
- CAM: MIPI_CSIx5，ISPx2 Up to 25M
- GPIO: 33 GPIOs
- Display: 4-lane MIPI_DSI up to FHD+(2520 x 1080)
- Speaker: 1W on 8Ω load in Class-D mode
- Receiver: 1 x Mono, AB
- Mic: 2 x analog microphones
- Handset: Stereo CLASS AB
- USIM: 2 x SIM card,support dual-SIM dual-standby
- Keys: Power on/off /Volume up /Volume down /Reset

* Advantages
1、Android T
2、5G NR sub-6Ghz, 4 Cameras, 1 Display, Wifi 6
3、Cost-effective 5G module
4、Global promotion planning

* Applications: PDA, Automotive aftermarket

* Regulation: RoHS*/CE*/HF*/REACH*
