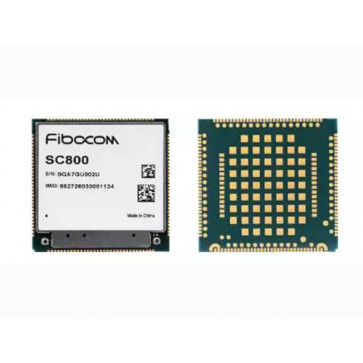

Fibocom SC800 Smart Wireless Module

Fibocom Redwood series SC800 are smart modules based on Qualcomm MSM8909 combinating Baseband, EMCP, PMU, Transceiver, and PA etc... Fibocom SC800 supports multimode networks such as FDD/TDD-LTE, WCDMA, TS-SCDMA, CDMS, CDMA2000-EVDO, GSM and WiFi/BT/GNSS wireless technology. Fibocom SC800 is also based on open Android OS and has many interfaces such as MIPI/USB/UART/SPI/I2C etc..

Fibocom SC800 Smart module Specifications:

Features
----------------------------------------------------
Dimensions: 42mm x 40mm x 2.6mm
Package: 128 LCC + 28 LGA pin
Weight: 9g
CPU: Qualcomm Quad Core Processor 1.0GHz
DDR: 1GB LP-DDR3
Flash: 8GB eMMC
Operating temperature: -30~ +70℃
Operating voltage: 3.3~4.5V

Media
----------------------------------------------------
GPU: Adreno™ 304 GPU
Display: 1280 × 720
Video Dec: 1080p30
Video Enc: 720p30
Camera: 8Mpix + 5Mpix
Audio: Analog Audio

Wireless
----------------------------------------------------
GSM/GPRS/EDGE: 900/1800MHz
WCDMA Band 1/8 支持HSUPA/HSPA+
EVDO Rev.A 800MHz
TD-SCDMA: Band 34/39
TDD-LTE: Band 38/39/40/41
FDD-LTE: Band 1/3/8
Wi-Fi: 802.11 b/g/n, 2.4GHz
BT: Bluetooth 4.1 BLE
GNSS: GPS, GLONASS

Interfaces
----------------------------------------------------
Dual-SIM Dual Standby, 1.8V/3.0V
USB×1, 2.0HS, OTG
UART×2, SPI×1, I2C×2
SD3.0×1,GPIO×24
MIPI-DSI, MIPI-CSI
Speaker x1, Receiver x1,
Handset Speaker_L/R x1, Mic x2

Approval
----------------------------------------------------
CCC CE*
RoHS
FCC*
GCF*
PTCRB*

OS
----------------------------------------------------
Android 5.1
