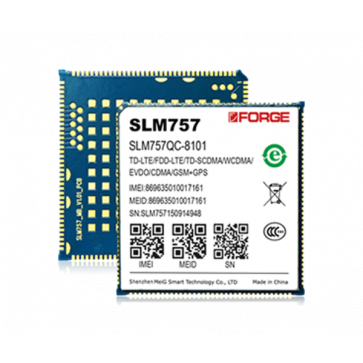

MeiG SLM757Q LTE Smart Module

MeiG SLM757Q Module Technical Specifications:

* Brand：MeiG Smart

* Product Model：SLM757Q

* Platform: Qualcomm Quad-core(64bits)1.4G

* OS：Android 7.1

* Memory: 8+1/16+2(GB) or larger capacity

* Encapsulation Features：LCC 146 pin + LGA 92pin

* Supported Frequency Band（MHz):

SLM757QC：
- LTE-FDD: B1/B3/B5/B8
- LTE-TDD: B38/B39/B40/B41
- TD-SCDMA: B34/B39
- WCDMA: B1/B5/B8
- GSM: 850/900/1800/1900
- EVDO&CDMA: BC0

SLM757QA:
- LTE-FDD: B2/B4/B5/B12/B13/B17/B28
- WCDMA: B2/B4/B5
- GSM: 850/1900

SLM757QE:
- LTE-FDD: B1/B3/B5/B7/B8/B20
- LTE-TDD: B38/B40/B41
- WCDMA: B1/B5/B8
- GSM: 850/900/1800

* Working Temperature：-25°C~+75°C

* Display：
- 4 lanes MIPI_DSI, HD:1280*800 60fps

* Camera：
- MIPI_CSI,support two cameras 4-lane
- MIPI_CSI for rear camera,up to 16MPs 4-lane
- MIPI_CSI for front camera,up to 8MP

* Video：Decode:1080p 30fps Encode:1080p 30fps

* Bluetooth：BT2.1+EDR/3.0/4.1LE

* WiFi：IEEE 802.11b/g/n, 2.4G

* FM：Yes

* GNSS：GPS/Beidou/Glonass/Galileo

* Hardware Interfaces:
- USB x 1
- Support OTG
- UART x 3
- I2C x 6（BLSP*6 available）
- SPI x 1（BLSP*6 available）
- ADC x 2
- GPIO x 53
- SIM card x 2
- SDIO x 1

* Application Fields： It is applicable in medium intelligent POS, tax printer , security monitoring, on-board equipment,medium information collection equipment, intelligent robot, smart home, intelligent hardware, intelligent industrial handhelds, intelligent industrial PAD, intelligent intercom devices, medium police enforcement instrument, smart wearables, vending machine, logistics cabinet,intelligent access control etc.

* Dimension (mm)： 41.0 x 41.0 x 3.0

* Weight：<5g
