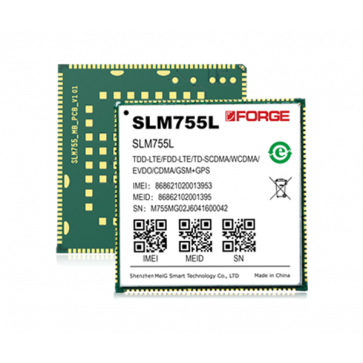

MeiG SLM755L LTE Smart Module

MeiG SLM755L Module Technical Specifications:

* Brand：MeiG Smart

* Product Model：SLM755L

* Platform: Qualcomm Quad-core(32bits)1.1G

* OS：Android 6.0

* Memory: 8+1(GB)

* Encapsulation Features：LCC 146 + LGA 64pin

* Supported Frequency Band（MHz):

SLM755L：
- LTE-FDD: B1/B3/B8
- LTE-TDD: B38/B39/B40/B41
- TD-SCDMA: B34/B39
- WCDMA: B1/B5/B8
- GSM: 850/900/1800
- EVDO&CDMA: BC0

SLM755LA：
- LTE-FDD: B2/B4/B5/B12/B13/B17/B28
- WCDMA: B2/B4/B5
- GSM: 850/1900

* Working Temperature：-25°C~+75°C

* Display：4 lanes MIPI_DSI, HD:1280*720@60fps

* Camera：Front 2MP，Rear 8MP

* Video：Decode:1080p 30fps Encode:720p 30fps

* Bluetooth：BT2.1+EDR/3.0/4.1LE

* WiFi：IEEE 802.11b/g/n, 2.4G

* FM：Yes

* GNSS：GPS/Beidou/Glonass

* Hardware Interfaces:
- USB x 1
- Support OTG
- UART x 2
- I2C x 4
- SPI x 1
- ADC x 2
- GPIO x 24
- SIM card x 2
- SDIO x 1

* Application Fields：It can be applied in low-end smart POS, security monitoring, on-board equipment, low-end smart robot, smart home, intelligent hardware, intelligent industrial handhelds, low-end smart intercom devices, low-end police enforcement instrument, smart wearables, vending machine, logistics cabinet, smart access control etc.

* Dimension (mm)：40.5 x 40.5 x 3.0

* Weight：<5g
