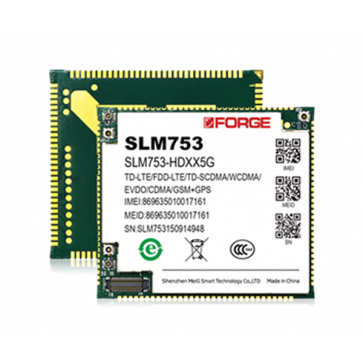

MeiG SLM753 LTE Smart Module

MeiG SLM753 Module Technical Specifications:

* Brand：MeiG Smart

* Product Model：SLM753

* Platform: Qualcomm Quad-core(64bits)1.2G

* OS：Android 5.1

* Memory: 8+1/16+2(GB)

* Encapsulation Features：LCC 124+30pin B2B

* Supported Frequency Band（MHz):

SLM753：
- LTE-FDD: B1/B3
- LTE-TDD: B38/B39/B40/B41
- TD-SCDMA: B34/B39
- WCDMA: B1/B5
- GSM: 850/900/1800
- EVDO&CDMA: BC0

SLM753-E：
- LTE-FDD: B1/B3/B5/B7/B8/B20
- LTE-TDD: B38/B40/B41
- EVDO&CDMA: BC0
- WCDMA:B1
- GSM: 850/900/1800

* Working Temperature：-40°C~+85°C

* Display：4 lanes MIPI_DSI, HD:1280*720

* Camera：Front5MP，Rear8MP

* Video：Decode:1080p 30fps Encode:1080p 30fps

* Bluetooth：BT2.1+EDR/3.0/4.0LE

* WiFi：IEEE 802.11b/g/n/a 2.4G/5Gdual-band

* FM：N

* GNSS：GPS/Beidou/Glonass

* Hardware Interfaces:
- USB x 1
- Support OTG
- UART x 2
- I2C x 4
- SPI x 1
- ADC x 2
- GPIO x 17
- SIM card x 2
- SDIO x 1

* Application Fields：It can be applied in low-end smart POS, security monitoring, on-board equipment, low-end smart robot, smart home, intelligent hardware, intelligent industrial handhelds, low-end smart intercom devices, low-end police enforcement instrument, smart wearables, vending machine, logistics cabinet, smart access control etc.

* Dimension (mm)： 38.0 x 43.0 x 3.0

* Weight：<5g
