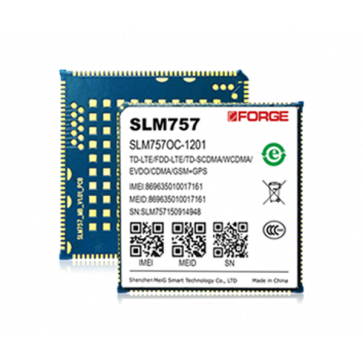

MeiG SLM757O LTE Smart Module

MeiG SLM757O Module Technical Specifications:

* Brand：MeiG Smart

* Product Model：SLM757O

* Platform: Qualcomm 8-core(64bits)1.4G

* OS：Android 7.1

* Memory: 16+2(GB) or larger capacity

* Encapsulation Features：LCC 146 pin + LGA 92pin

* Supported Frequency Band（MHz):

SLM757OC：
- LTE-FDD: B1/B3/B5/B8
- LTE-TDD: B38/B39/B40/B41
- TD-SCDMA: B34/B39
- WCDMA: B1/B5/B8
- GSM: 850/900/1800/1900
- EVDO&CDMA: BC0

SLM757OA:
- LTE-FDD: B2/B4/B5/B12/B13/B17/B28
- WCDMA: B2/B4/B5
- GSM: 850/1900

SLM757OE:
- LTE-FDD: B1/B3/B5/B7/B8/B20
- LTE-TDD: B38/B40/B41
- WCDMA: B1/B5/B8
- GSM: 850/900/1800

* Working Temperature：-25°C~+75°C

* Display：
- 4 lanes MIPI_DSI, HD:1280*800 60fps
- Full HD:1920*1200 60fps;
- support double-screen and screen-touch

* Camera：
- MIPI_CSI,support two cameras 4-lane
- MIPI_CSI for rear camera,up to 16MPs 4-lane
- MIPI_CSI for front camera,up to 8MP

* Video：Decode:1080p 30fps Encode:1080p 30fps

* Bluetooth：BT2.1+EDR/3.0/4.1LE

* WiFi：IEEE 802.11b/g/n, 2.4G

* FM：Yes

* GNSS：GPS/Beidou/Glonass/Galileo

* Hardware Interfaces:
- USB x 1
- Support OTG
- UART x 3
- I2C x 6（all available）
- SPI x 1（all available）
- ADC x 2
- GPIO x 49
- SIM card x 2
- SDIO x 1

* Application Fields：It is applicable in smart cashiers, tax printer,medium-level smart POS, security monitoring, on-board equipment, smart robot, smart home, intelligent hardware, intelligent industrial handhelds,industrial smart PAD, smart intercom devices, medium-level police enforcement instrument, smart wearables, vending machine, logistics cabinet,smart access control etc.

* Dimension (mm)： 41.0 x 41.0 x 3.0

* Weight：<5g
