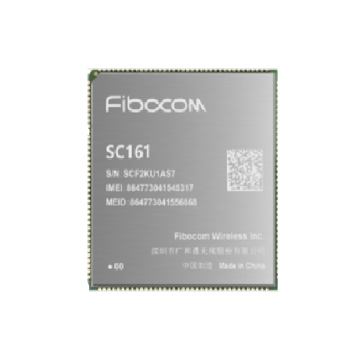

Fibocom SC161 5G Smart Module

Fibocom SC161 is designed with Qualcomm QCM6350 built in an Octa-core high-end platform 2*A77 2.0GHz + 6*A55 1.7GHz processor and vDSP. It integrated high-performance graphics engine, which can play 4K video smoothly. It supports both 5G NSA and SA modes, Option 3x, 3a and Option 2 network architectures, which makes it backwards compatible with 4G/3G network. SC161 preset open Android operating system with rich extension interfaces such as MIPI/ USB/ UART/ SPI/ I2C, which is the preferred solution for the core system of wireless intelligent products.

The Fibocom 5G module can be widely used in VR, AR, automotive, smart healthcare, smart home, smart city and other industrial fields, which is the core system solution outstanding global wireless intelligent product.

Fibocom SC161 module specifications：

* Operating System：Android R

* Package: 433 LGA pin

* Dimensions: 43mm x 45mm x 2.8mm

* CPU: Qualcomm QCM6350 Dual-core ARM Cortex™-A76, 2.0GHz+Six-core ARM Cortex™- A55，1.7GHz

* Memory : 4GB LPDDR4X+64GB UFS

* Operating temperature: -30~+75°C

* Operationg voltage: 3.5~4.2V

* Weight: 9.6±0.1g

* Support 5G Sub-6: n1/n28/n41/n78/n79, 2T4R

* LTE-FDD: B1/3/5/8

* LTE-TDD: B34/38/39/40/41

* WCDMA: B1/8

* Wi-Fi: 802.11 a/b/g/n/ac, 2.4G/5G,11 ax ready, 2X2 MIMO

* BT: 5.1 BLE

* Antenna : 4 Antennas +1 GPS

* GNSS: GPS/GLONASS/Beidou

* Target Area: China

* Approvals: RoHS*/CCC*/SRRC*/NAL*

* GPU: Adreno™ 619 GPU

* Display: 2520 × 1080@60fps + QHD60 of DP

* Video Dec: 4K @30fps (H.264, HEVC, VP8)

* Video Enc: 4K @30fps (H.264, HEVC, VP9)

* Camera: 3X ISP, up to 32MP

* Audio: Analog Audio

* Data
- DL: SA Peak 1.9Gbps
- UL: Peak 750Mbps

* UART/SPI: 4 x UART/ SPI

* USB: 1 x USB2.0/3.1, Support OTG,Support DP over Type-C

* SDIO: 1 x SD3.0

* CAM: Three 4-lane CSIs (4/4/4 or 4/4/2/1) D-PHY 1.2 at 2.5 Gbps per lane or C-PHY 1.0 at 10 Gbps (3.42 Gbps/trio)

* GPIO: 33 GPIO

* LCD: 4-lane MIPI_DSI up to FHD+(2520*1080)

* USIM: 2 x USIM，3.0V/1.8V
