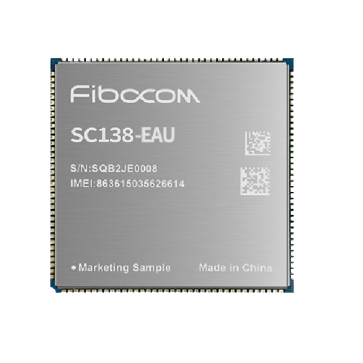

Fibocom SC138-EAU LTE Cat4 Smart Module

Fibocom SC138 smart module is designed with Qualcomm QCM6125 platform. It has an Octa-core high-end platform 4*A73 2.0g + 4*A53 1.8g processor and integrated high-performance graphics engine, which can play 4K video smoothly and support multi-channel camera input. SC138supports a variety of long-distance communication modes and short-distance 2.4G+5G wireless transmission technologies like Wi-Fi/Bluetooth. With built-in LNA, it supports GNSS wireless positioning technology. SC138 preset open Android operating system with rich extension interfaces such as MIPI/ USB/ UART/ SPI/ I2C, which is the preferred solution for the core system of wireless intelligent products.

Fibocom SC138-EAU Specifications:

* Dimensions: 41.0mm x 41.0mm x 2.8mm

* Package: 148 LCC+ 84 LGA

* Processor: Qualcomm's®QCM6125 Quad-core ARM Cortex ™ - • A73, 2.0GHz+Quad-core ARM Cortex ™-A53，1.8GHz

* GPU: Adreno 610

* Memory (Default): 2GB LPDDR4X RAM;32GB eMMC Flash

* Frequency
- LTE-FDD B1/3/5/7/8/20/28
- LTE-TDD B38/40/41
- WCDMA:B1/2/5/8
- GSM:850/900/1800/1900MHz

* WiFi: 2.4G+5G, 802.11 a/b/g/n/ac

* BT: BT 5.0

* GNSS: GPS/Beidou/GLONASS

* OS: Android Q

* Power Supply: DC 3.5 ～ 4.2V

* Weight: About 9.6 g

* Operating temperature: -30~+75℃

* Storage Temperature: -40°C - + 85°C

* Data Transmission
- LTE FDD (Mbps): Max 150(DL)/ 50(UL)
- LTE TDD (Mbps): Max 130(DL)/ 30(UL)
- WCDMA (Mbps): HSUPA: Max 5.76(UL), HSPA+: Max 42(DL)
- EDGE/GPRS(Kbps): EDGE: Max 296(DL)/ 236.8 (UL), GPRS: Max 107(DL)/ 85.6(UL)
- WiFi (Mbps): up to 433

* Video encoding: 4K@30fps (H.264, HEVC, VP9)

* Video decoding: 4K@30fps (H.264, HEVC, VP8)

* Interfaces
- UART/SPI(Mbps): 3 x UART,up to 4Mbps
- I2C: I2C Up to 3.4Mbps
- USB: 1 x USB2.0 up to 480Mbps ,Support OTG
- SDIO: 1 x SDIO
- CAM: MIPI_CSI 4lane x 2 Up to 2.1G
- CAM: MIPI_CSI 4lane x 2 connect 1 main camera up to 25Mp
- GPIO: 35 GPIOs
- Display: MIPI_DSI x 2,Dual LCD, Up to FHD+(2520x1080)@60fps
- Speaker: 1.5W on 8Ω load in Class-D mode
- Receiver: 1 x Mono, AB
- Mic: 2 x analog microphones
- Handset: 1 x Stereo, single-ended output
- USIM: 2 x SIM card, support dual-SIM dual-standby (Default Single)
- Keystemperature: Power on/off /Volume up /Volume down /Reset

* Regulation: RoHS/CCC/SRRC/NAL
