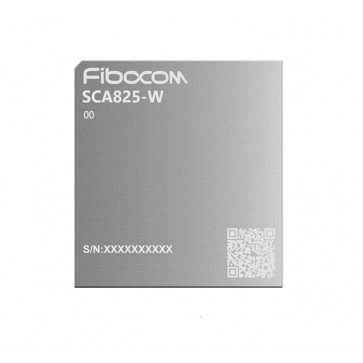

Fibocom SCA825-W AI Smart Module
* Fibocom AI Smart Module
* Processor: 1XGoldP@2.84GHz+ 3XGold@2.42GHz+ 4XSilver@1.8GHz
* WLAN: WIFI 802.11 a/b/g/n/ac/ax, (2X2 MIMO) 2.4G/5G/6G
* BT: 5.1 BR/EDR/BLE
* WiFi Speeds(Mbps): AX3000
* OS: Android Q
Availability: Out of stock
Fibocom SCA825-W is an AI smart module powered by the Qualcomm flagship IoT solution QCS8250, which integrates an octa-core high-performance Kryo™ 585 CPU, Adreno™ 650 GPU, Adreno 995 DPU, Adreno 665 VPU, NPU 230, Hexagon™ DSP, Spectra ™ 480 ISP. Comping with powerful performance and rich multimedia functions, the module supports Wi-Fi 6, Bluetooth 5.1 and 2 × 2 Wi-Fi MIMO multi-antenna technology, meeting customers' needs for high computing power in industrial and consumer applications.
Fibocom SCA825-W integrates a range of peripheral interfaces such as MIPI-DSI, I2S, PCIe, UART, USB, I2C, SPI etc., which greatly expands its application in the M2M field. It can be widely used in video conferences, livestreaming, games, edge computing, robotics, drones, AR/VR and other terminal products and industries.
Fibocom SCA825-W AI Smart Module Specifications:
* Product type: AI Smart Module
* Package: 571LGA
* Processor: 1XGoldP@2.84GHz+ 3XGold@2.42GHz+ 4XSilver@1.8GHz
* GPU: Adreno™ 650 GPU
* Memory(Default): 8GB LPDDR5+128GB UFS
* Dimension (mm): 42 *46 *2.95
* Frequency: NA
* WIFI: 802.11 a/b/g/n/ac/ax, (2X2 MIMO) 2.4G/5G/6G
* WiFi Data Transmission(Mbps): AX3000
* BT: 5.1 BR/EDR/BLE
* GNSS: NA
* OS: Android Q
* Power Supply: DC 3.5 ~ 4.2V
* Weight: About 12.5g
* Operating Temp: -30°C ~ +75°C
* Storage Temp: -40°C ~ +85°C
* Video Processing
- Video Encoding: 4K@120fps; 8K@30fps
- Video Decoding: 4K@240 fps; 8K@60fps
* Interfaces
- UART/SPI(Mbps): 4 x UART up to 3
- I2C(Kbps): 9 x I2C up to 3.4Mbps
- USB: 2 x USB3.1, USB0: support USB OTG & DisplayPort v1.4; USB1: Host only
- SDIO: 1 x SD 3.0
- CAM: 6 x 4-lane MIPI CSI, 2 x Full IFE + 2 x Lite ISP
- GPIO: 16 GPIOs
- Display:
> 2 x 4-lane MIPI DSI
>5040 x 2160 @ 60 fps (8 lanes)
>(2560 x 2560 @ 60 fps) x 2 (4 lanes + 4 lanes)
>4K @ 60 fps Miracast
>DisplayPort v1.4 over Type-C
- Speaker: 1W on 8Ω load in Class-D mode
- Receiver: Stereo CLASS AB
- Mic: 2 x analog microphones
- Handset: Stereo CLASS AB
- USIM: NA
- Keys: Power on/off /Volume up /Volume down /Reset
* Advantages
1、Android Q
2、Triple DSI support up to 4K @ 60 fps
3、It supports high computing power(15T)
4、It supports up to seven concurrent cameras up to 64MP.
5、Support dual USB and WiFi 6, 2×2 Wi-Fi MIMO, Bluetooth 5.1
* Applications: video conferences, livestreaming, games, edge computing, robotics, drones, AR/VR
* Regulation: RoHS*/CE*/HF*/REACH*
