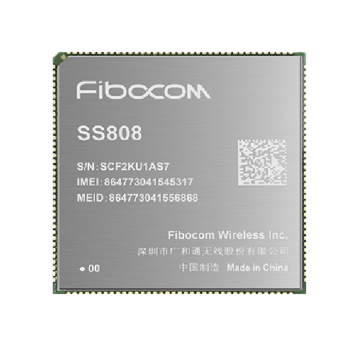

Fibocom SS808-EAU LTE Cat4 Smart Module

Fibocom SS808-EAU smart module is designed based on Qualcomm SDM450 platform, using octa-core Cortex-A53 processor,1.8GHz main frequency, and internal integration of high-performance graphics engine, which can smoothly play 1080p video, support dual-screen display, support multi-camera input.

Fibocom SS808-EAU Module Specifications:

* Operating System：Android 10.0

* Dimensions：41.0mmx 41.0mm x 2.8mm

* Package: 152LCC + 80 LGA pin

* Operating temperature：-30~+75℃

* Operating voltage: 3.5~4.2V

* Weight：About 10.3g

* LTE-FDD：B1/B3/B5/B7/B8/B20/B28

* LTE-TDD：B38/B40/B41

* UMTS：B1/B2/B5/B8

* GSM/EDGE： 850/900/1800/1900MHz

* WIFI：802.11 a/b/g/n/ac, 2.4G+5G

* BT：4.2BLE

* GNSS：GPS/GLONASS/Beidou

* Data
- LTE 3GPP R10 CAT4
- FDD-LTE：Max150Mbps (DL)/ 50Mbps (UL)
- TDD-LTE：Max130Mbps (DL)/ 30Mbps (UL)
- UMTS/HSPA/HSPA+：3GPP R9：CAT6 HSUPA: Max 5.76Mbps (UL)， CAT24 HSPA+: Max 42Mbps (DL)
- EDGE/GPRS(Kbps)：EDGE: Max 296Kbps (DL)/236.8Kbps (UL)
- GPRS: Max 107Kbps (DL)/ 85.6Kbps(UL)

* Multi-Media：
- GPU: Adreno506, 3D Graphic Processing Unit
- Display: Dual display, up to 1920*1200 60fps
- Video Dec: 1080P@60fps (H.264/H.265/VP8/VP9)
- Video Enc: 1080P@60fps (H.264/H.265/VP8)
- Camera: 2xISP, MIPI_CSI up to 2.1Gbps， 2xMIPI_CSI 4 lanes (up to 21MP)
- Audio： Analog Audio

* Interfaces
- UART/SPI：3 x UART Up to 4Mbps, 1x SPI
- I2C: I2C Up to 3.4Mbps
- USB: 1x USB2.0 up to 480Mbps, Support OTG/USB3.0 up to 5Gbps
- SDIO: 1xSD3.0
- CAM: 2x4-lane MIPI_CSI, Up to 2.1G, 4-lane MIPI_CSI Up to 21Mp
- GPIO: 21 GPIO
- Display: 2x MIPI DSI- 4lanes FHD(1920*1200)
- USIM: 2x USIM, 3.0V/1.8V

* Certificate：RoHS*/CE*/GCF*
