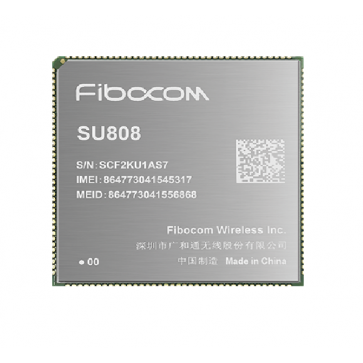

Fibocom SU808-EAU LTE Cat4 Smart Module

* Fibocom Smart Module


* Form factor: LCC + LGA


* Operating System:Android 9.0


* WIFI:802.11b/g/n, 2.4G


* BT:4.2BLE


* GNSS:GPS/Beidou


* Target region: Asia, Europe, Australia, Brazil

Sign up for price alert

Availability: In stock

$199.00

Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!

Details
Details

Fibocom SU808-EAU smart module is designed based on UNISOC SL8541E platform. The module, LCC+LGA packaged for easy patching, integrated core components such as baseband, EMCP, PMU, Transceiver and PA, and supports long-distance communication modes such as FDD-LTE/ TDD-LTE, WCDMA, and GSM and short-distance 2.4G wireless transmission technologies like WIFI/ Bluetooth.


Fibocom SU808-EAU Module Specifications:

* Operating System:Android 9.0

* Dimensions:41.0mmx 41.0mm x 2.8mm

* Package: 232pin

* Operating temperature:-20~+65℃

* Operating voltage: 3.5~4.2V

* Weight:About 10.3g

* LTE-FDD:B1/B3/B5/B7/B8/B20/B28

* LTE-TDD:B38/B40/B41

* UMTS:B1/B2/B5/B8

* GSM/EDGE: 850/900/1800/1900MHz

* WIFI:802.11 b/g/n, 2.4G

* BT:4.2BLE

* GNSS:GPS/Beidou


* Data
- LTE 3GPP R10 CAT4
- FDD-LTE:Max150Mbps (DL)/ 50Mbps (UL)
- TDD-LTE:Max130Mbps (DL)/ 30Mbps (UL)
- UMTS/HSPA/HSPA+:3GPP R7:HSUPA: Max 11Mbps (UL), HSDPA: Max 21Mbps (DL)
- EDGE/GPRS(Kbps):EDGE: Max 296Kbps (DL)/236.8Kbps (UL)
- GPRS: Max 107Kbps (DL)/ 85.6Kbps(UL)

* Multi-Media:
- GPU: SIMDv2/VFPV4
- Display: 1440 × 720 60fps
- Video Dec: 1080p30 fps (H.264, MPEG4, H.263, VP 8)
- Video Enc: 1080p30 fps (H.264, MPEG4, H.263)
- Camera: 2xISP, MIPI_CSI up to 1.5Gbps,1xMIPI_CSI 4 lanes (up to 13MP)
- Audio: Analog Audio

* Interfaces
- UART/SPI:3x UART Up to 3Mbps
- I2C: 4xI2C Up to 3.4Mbps
- USB: 1xUSB2.0 support OTG
- SDIO: 1xSD3.0
- CAM: 1xMIPI_CSI1 (up to 13Mp CSI1 4lanes), 1xMIPI_CSI0 (up to 8Mp CSI0 4lanes)
- Display: 1x MIPI DSI- 4lanes up to 1440 × 720
- USIM: 2x USIM, 3.0V/1.8V


* Certificate:RoHS*/CE*/GCF*
