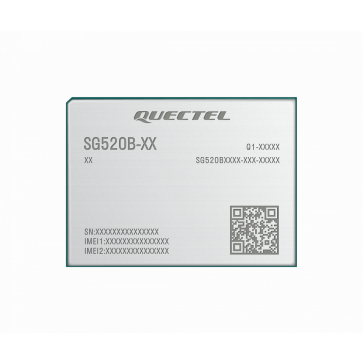

Quectel SG520B 5G Smart Module series

Quectel SG520B series is Quectel's new generation of multi-mode 5G smart module with built in Android 13/ 14/ 15/ 16 OS. Based on QCM4490 64-bit octa-core processors, it is ideal for both industrial and customer applications requiring high data rates and multimedia functions. The SG520B series is available in four variants: SG520B-CN, SG520B-EM, SG520B-NA and SG520B-WF.

Quectel SG520B series module meets 3GPP Release 16 specification, and supports both 5G NSA and SA modes with 4G/ 3Gfallback. The module also supports Wi-Fi 6E & DBS, IEEE 802.11a/ b/ g/ n/ ac/ ax, Wi-Fi 2 × 2 MU-MIMO and Bluetooth 5.2.

Quectel SG520B series module supports 5G & LTE multiple-input multiple-output (MIMO) technology. The use of multiple antennas at the receiver end at the same time and on the same frequency band greatly minimizes errors and optimizes the data speed. The module also combines high-speed wireless connectivity with embedded multi-constellation and high-sensitivity GNSS (GPS/ GLONASS/ BDS/ Galileo/ NavIC/ QZSS/ SBAS) receiver for positioning.

A rich set of interfaces (such as LCM, camera, touch panel, UART, USB, I2C and I2S) extend the applicability of the module to a wide range of M2M applications, including smart gateway, CPE, MiFi, MID, PND, POS, routers, multimedia terminals, smart phones, digital signage, industrial PDAs, etc.

Quectel SG520B 5G Smart Modules Specifications:

# Quectel SG520B-CN
- Target Region: China
- CPU: QCM4490, octa-core, 2 × A78 @ 2.4 GHz, 6 × A55 @ 2 GHz
- Memory: 4 GB LPDDR4X + 64 GB UFS (Default)
- OS: Android 13/14/15/16
- 5G Frequency Bands: n1/3/5/8/28/41/78/79
- 5G MIMO: 4 × 4 MIMO (DL): n1/ 41/ 78/ 79
- 4G LTE: B1/ 3/ 5/ 8/ 34/ 38/ 39/ 40/ 41
- LTE MIMO: 4 × 4 MIMO (DL): B1/ 41
- WCDMA: B1/ 5/ 8
- WLAN: 2.4 & 5 & 6 GHz, 802.11a/ b/ g/ n/ ac/ ax, Supports DBS, 2 × 2 MU-MIMO
- Bluetooth: Bluetooth 5.2
- GNSS: GPS/ GLONASS/ BDS/ Galileo/ NavIC/QZSS/ SBAS;
- Regulatory China: CCC/ SRRC/ NAL
- 5G SA: Max. 2.1 Gbps (DL)/ 450 Mbps (UL)
- 5G NSA Max. 2.5 Gbps (DL)/ 550 Mbps (UL)
- LTE Max. 0.8 Gbps (DL)/ 200 Mbps (UL)
- DC-HSPA+ Max. 42 Mbps (DL)/ 5.7 Mbps (UL)
- WCDMA Max. 384 kbps (DL)/ 384 kbps (UL)

# Quectel SG520B-EM
- Target Region: EMEA/ Korea/ South Africa/ Latin America/ Australia/ India/ New Zealand / India
- CPU: QCM4490, octa-core, 2 × A78 @ 2.4 GHz, 6 × A55 @ 2 GHz
- Memory: 4 GB LPDDR4X + 64 GB UFS (Default)
- OS: Android 13/14/15/16
- 5G Frequency Bands: n1/ 3/ 5/ 7/ 8/ 20/ 28/ 38/ 40/ 41/ 77/ 78/ 79
- 5G MIMO: 4 × 4 MIMO (DL): n1/ 3/ 7/ 38/ 40/ 41/ 77/ 78/ 79, 2 × 2 MIMO (UL): n41/ 77/ 78/ 79
- 4G LTE: B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 17/ 18/ 19/ 20/ 26/ 28/ 32/ 34/ 38/ 39/ 40/ 41/ 42
- LTE MIMO: 4 × 4 MIMO (DL): B1/ 3/ 7/ 38/ 40/ 41/ 42
- WCDMA: B1/ 2/ 4/ 5/ 6/ 8/ 19
- GSM/EDGE: B2/ 3/ 5/ 8
- WLAN: 2.4 & 5 & 6 GHz, 802.11a/ b/ g/ n/ ac/ ax, Supports DBS, 2 × 2 MU-MIMO
- Bluetooth: Bluetooth 5.2
- GNSS: GPS/ GLONASS/ BDS/ Galileo/ NavIC/QZSS/ SBAS;
- Regulatory: Global: GCF/Europe: CE/Australia/ New Zealand: RCM/United Kingdom: UKCA
- 5G SA: Max. 2.1 Gbps (DL)/ 900 Mbps (UL)
- 5G NSA Max. 2.5 Gbps (DL)/ 550 Mbps (UL)
- LTE Max. 0.8 Gbps (DL)/ 200 Mbps (UL)
- DC-HSPA+ Max. 42 Mbps (DL)/ 5.7 Mbps (UL)
- WCDMA Max. 384 kbps (DL)/ 384 kbps (UL)
- EDGE: Max. 296 kbps (DL)/ 236.8 kbps (UL)
- GPRS: Max. 107 kbps (DL)/ 85.6 kbps (UL)

# Quectel SG520B-NA
- Target Region: North America
- CPU: QCM4490, octa-core, 2 × A78 @ 2.4 GHz, 6 × A55 @ 2 GHz
- Memory: 4 GB LPDDR4X + 64 GB UFS (Default)
- OS: Android 13/14/15/16
- 5G Frequency Bands: n2/ 5/ 7/ 12/ 13/ 14/ 25/ 26/ 29/ 30/ 38/ 41/ 48/ 66/ 70/ 71/ 77/ 78
- 5G MIMO: 4 × 4 MIMO (DL): n2/ 7/ 25/ 30/ 38/41/ 48/ 66/ 70/ 77/ 78, 2 × 2 MIMO (UL): n38/ 41/ 48/ 77/ 78
- 4G LTE: B2/ 4/ 5/ 7/ 12/ 13/ 14/ 17/ 25/ 26/ 29/ 30/ 38/ 41/ 42/ 43/ 46/ 48/ 66/ 71
- LTE MIMO: 4 × 4 MIMO (DL): B2/ 4/ 7/ 25/ 30/38/ 41/ 42/ 43/ 48/ 66
- WCDMA:
- WLAN: 2.4 & 5 & 6 GHz, 802.11a/ b/ g/ n/ ac/ ax, Supports DBS, 2 × 2 MU-MIMO
- Bluetooth: Bluetooth 5.2
- GNSS: GPS/ GLONASS/ BDS/ Galileo/ NavIC/QZSS/ SBAS; L1 + L5
- Regulatory
- 5G SA: Max. 2.1 Gbps (DL)/ 900 Mbps (UL)
- 5G NSA Max. 2.5 Gbps (DL)/ 550 Mbps (UL)
- LTE Max. 0.8 Gbps (DL)/ 200 Mbps (UL)
- DC-HSPA+ Max. 42 Mbps (DL)/ 5.7 Mbps (UL)

# Quectel SG520B-WF (WiFi Module)
- Target Region: Global
- CPU: QCM4490, octa-core, 2 × A78 @ 2.4 GHz, 6 × A55 @ 2 GHz
- Memory: 4 GB LPDDR4X + 64 GB UFS (Default)
- OS: Android 13/14/15/16
- WLAN: 2.4 & 5 & 6 GHz, 802.11a/ b/ g/ n/ ac/ ax, Supports DBS, 2 × 2 MU-MIMO
- Bluetooth: Bluetooth 5.2

* Interfaces
- LCM: FHD+ @ 60/ 90/ 120 Hz
- Camera: 3x MIPI CSI, 2x ISP: 25 MP @ 30 pfs, 16 + 16 MP @ 30 fps, 25 MP @ 30 fps ZSL, 64 MP NZSL
- Touch Panel Capacitive touch panel
- Audio Needs external audio codec
- Video: Encode: 1080p (H.264/ H.265) @ 60 fps/Decode: 1080p (H.264/ H.265) @ 60 fps
- USB: Supports USB 3.1 Gen 1
- PWM × 2
- Motor Driver × 1
- Flashlight Driver × 1
- (U)SIM × 2 (1.8/ 2.95 V)
- UART × 2
- SD Card × 1, SDIO 3.0, supports 4-bit SDIO
- ADC × 6, general-purpose ADC interfaces
- I2C × 8
- I2S × 2
- SPI × 1
- PWRKEY 1.8 V, pulled up internally
- GPIO × 56
- Antenna × 8 (cellular antenna × 5, Wi-Fi/ Bluetooth antenna × 1, Wi-Fi MIMO antenna × 1, GNSS antenna × 1)
