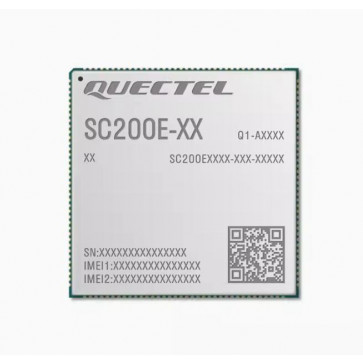

Quectel SC200E 4G LTE Cat4 Smart Module

Quectel SC200E series is the new generation entry-level intelligent LTE Cat 4 SPPLE module launched by Mobiletek Communication. Based on the Qualcomm QCM2290 platform, this platform integrates a quad-core Cortex-A53 processor and AdrenoTM 702 high-performance graphics engine. It runs on the Android operating system, providing powerful performance and rich multimedia functions, fully meeting the high-speed, multimedia, and lifecycle requirements of customers in industrial and consumer applications. The SC200E series includes seven versions: SC200E-CE, SC200E-EM, SC200E-AU, SC200E-EU, SC200E-NA, SC200E-JP, and SC200E-WF (Wi-Fi & Bluetooth only).

Quectel SC200E series modules support Multiple Input Multiple Output (MIMO) technology, allowing the simultaneous use of multiple receiving antennas on the receiving end in the same frequency band. This significantly reduces error rates and improves communication quality. Additionally, the SC200E series modules integrate a multi-constellation GNSS receiver, supporting GPS, BDS, GLONASS, Galileo, QZSS, SBAS (SC200E-NA also supports NavIC and L1+L5) positioning systems, enabling fast and accurate positioning.

Quectel SC200E-CE 4G Smart Module Specifications：

* Product type: 4G Module

* Chipset: Qualcomm QCM2290

* LTE Category: LTE Cat4

* Compliant with 3GPP-UTRA Release 10

* Form factor: LCC + LGA

* Dimensions: 40.5 × 40.5 × 2.85mm

* Frequency Bands:

Quectel SC200E-CE
- LTE-FDD Bands: B1/B3/B5/B8
- LTE-TDD Bands: B34/B38/B39/B40/B41
- WCDMA: B1/B8
- GSM: 900/1800MHz

Quectel SC200E-EU/AU/EM
- LTE-FDD Bands: B1/B2/B3/B5/B7/B8/B20/B28
- LTE-TDD Bands: B38/B39/B40/B41
- GSM: 850/900/1800/1900MHz

* CPU: Quad-core ARM Cortex-A53 64 bit processor @2.0GHz

* GPU: Adreno 702

* Inventory: 8GB eMMC+1GB LPDDR3, 16GB eMMC+2GB LPDDR3, 32GB eMMC+3GB LPDDR4X, 64GB eMMC+ 4GB LPDDR4X

* OS: Android 12

* Power supply: 3.55V~4.2V, 3.8V Typ.

* Weight：10.3g

* Temperature range:
- -30°C ~ +75°C (Operation Temperature)

* Data Transmission Rates:
- LTE-FDD: Max. 150Mbps (DL)/ Max. 50Mbps (UL)
- LTE-TDD: Max. 130Mbps (DL)/ Max. 30Mbps (UL)
- DC-HSDPA: Max. 42Mbps (DL)
- DC-HSUPA: Max. 5.76Mbps (UL)
- WCDMA: Max. 384Kbps (DL/UL)
- EVDO: Max. 3.1Mbps DL/1.8Mbps UL
- EDGE: Max. 236.8Kbps (DL/UL)
- GPRS: Max. 85.6Kbps (DL/UL)

* Protocols: TCP/UDP/PPP/FTP/HTTP/NTP/PING/QMI/NITZ/CMUX/HTTPS/SMTP/MMS/FTPS/SMTPS/SSL/FILE

* Enhanced Features
- Bluetooth: BT2.1+EDR/3.0 HS/4.2 BLE5.0LE
- WLAN: 2.4G & 5GHz, 802.11a/b/g/n/ac
- GNSS: GPS/GLONASS/GPS/BDS/Galileo/QZSS/SBAS, L1
- Charing function: built-in chipset for charging
- Dual-SIM/Dual standby: YES
- Firmware update: USB/OTA

* Certifications/Approvals: SRRC*/ NAL*/ CCC

* Applications: POS, Robot, Interphone, Terminals
