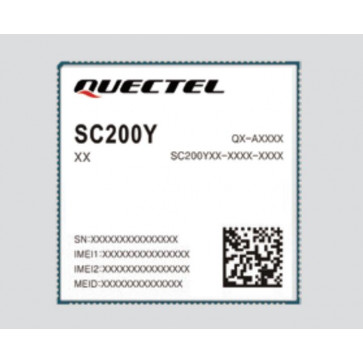

Quectel SC200Y 4G LTE Cat6 LCC + LGA Smart Module

Quectel SC200Y 4G Module Specifications：

* Product type: 4G Smart Module

* Chipset:

* LTE Category: LTE Cat6, compliant with 3GPP E-UTRA R10

* Form factor: LCC + LGA

* Dimensions: 40.5 × 40.5 × 2.65mm

* Frequency Bands:
Quectel SC200Y-CE
- LTE-FDD Bands: B1/B3/B5/B8
- LTE-TDD Bands: B34/B38/B39/B40/B41
- WCDMA: B1/B8
- CDMA: BC0
- GSM: 900/1800MHz

Quectel SC200Y-EM
- LTE-FDD Bands: B1/B2/B3/B4/B5/B7/B8/B20/B28
- LTE-TDD Bands: B38/B39/B40/B41
- WCDMA: B1/B2/B4/B5/B8
- GSM: 850/900/1800/1900MHz

Quectel SC200Y-J
- LTE-FDD Bands: B1/B3/B5/B8/B11/B18/B19/B21/B26/B28
- LTE-TDD Bands: B41
- WCDMA: B1/B6/B8/B19

* CPU: Qualcomm SDM450, Octa-core ARM Cortex-A53 64 bit processor @1.8GHz

* GPU: Qualcomm Adreno 506 64 bit processor

* Inventory: 16GB eMMC+2GB LPDDR3

* OS: Android 9

* Power supply: 3.55V~4.4V, 3.8V Typ.

* Weight：9.5g

* Temperature range:
- -30°C ~ +75°C (Operation Temperature)

* Data Transmission Rates:
LTE Cat.6
- LTE-FDD: Max. 300Mbps (DL)/ Max. 50Mbps (UL)
- LTE-TDD: Max. 265Mbps (DL)/ Max. 30Mbps (UL)

LTE Cat.4
- LTE-FDD: Max. 150Mbps (DL)/ Max. 50Mbps (UL)
- LTE-TDD: Max. 130Mbps (DL)/ Max. 30Mbps (UL)

UMTS
- DC-HSDPA: Max. 42Mbps (DL)
- DC-HSUPA: Max. 11.2Mbps (UL)
- WCDMA: Max. 384Kbps (DL/UL)

TD-SCDMA: Max. 4.2Mbps(DL)/2.2Mbps(UL)

CDMA2000
- EVDO: Max.3.1Mbps(DL)/1.8Mbps(UL)
- 1X Advanced: Max.307.2Kbps(DL/UL)

GSM
- EDGE: Max. 296Kbps (DL)/236Kbps(UL)
- GPRS: Max. 107Kbps (DL)/85.6Kbps(UL)

* Interfaces:
- Display: FHD(1920 X 1080)@60FPS, Support MIPI to RGB; MIPI to LVDS and MIPI to HDMI
- Camera: 3 x Camera, 4 X MIPI_CSI, Dual ISP up to 21MP
- Touchscree: capacitive
- Audio: Analog Audio: Speaker, Earpiece, Headphone, 3-way Microphone
- Video:
* Encoding: 1080P (H.264/H.265) @60fps
* Decoding: 1080P (H.264/H.265) @60fps
- USB 3.0/2.0 x 1, support USB OTG
- I2C x 4
- (U)SIM x 2, 1.8V/2.95V(U)SIM
- UART x 3
- SD x 1(3.0, 4-bit SDIO)
- PWRKEY: 1.8V
- SPI: x 3
- ADC x 1
- I2S: N/A
- GPIO x 35
- PWM x 1
- Motor Drive Interface x 1
- Flashlight: N/A
- LED: N/A
- Antenna: Main antenna, Diversity antenna, GNSS antenna, BT/WiFi antenna interface

* Enhanced Features
- Bluetooth: BT2.1+EDR/3.0/4.1LE/4.2 BLE
- WLAN: 2.4/5GHz, 802.11a/b/g/n/ac, 433Mbps, STA/AP/P2P; SC200Y-CE default support 2.4G, 802.11b/g/n
- GNSS: GPS/GLONASS/Beidou or GPS/Galileo/BeiDou, Built-in independent LNA
- Charing function: N/A
- Dual
- Dual-SIM/Dual standby: YES
- Firmware update: USB/OTA

* Certifications/Approvals: GCF*/ CE/ RCM/ FCC*/ PTCRB*/ AT&T*/ Verizon*/ Telstra*/ IC*/ JATE/ TELEC/ CCC/ SRRC/ NAL/ DOCOMO

* Applications: POS, Robot, Face Payment Teminals, Interphone, Tablet PC, and Terminals etc...
