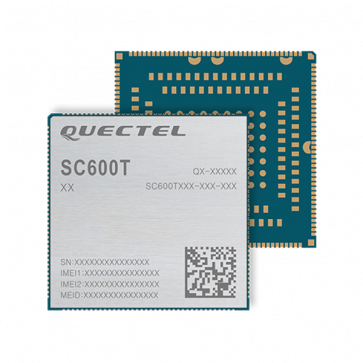

Quectel SC600T LTE Cat6 Smart Module

* Quectel LTE Cat6 Smart Module


* LTE Cat 6 Modem with 2 × 20MHz CA


* Support Rx-diversity , DL MIMO 2 × 2


* Support 3GPP E-UTRA Release 12


* WLAN: 2.4G/5G, 802.11 a/b/g/n/ac


* Bluetooth: BT2.1+EDR/3.0/4.1 LE/4.2 BLE


* GNSS: GPS/GLONASS/BeiDou


* Firmware Upgrade via USB

Sign up for price alert

Availability: In stock

$329.00

Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!

Details
Details

Quectel SC600T is Quectel’s new generation of multi-mode Smart LTE Cat 6 module with built-in Android 9.0 OS. Based on Qualcomm octa-core and 64-bit high-performance processors with built-in AdrenoTM 506 GPU, SC600T is designed to support leading performance, various multimedia features and Quick Charge 3.0 technology. It is ideal for both industrial and consumer applications with high data-rate and multimedia functions. SC600T is available in four variants: SC600T-NA*, SC600T-EM*, SC600T-JP* and Wi-Fi & BT only version SC600T-WF*.

Quectel SC600T supports multiple-input multiple-output (MIMO) technology. The use of multiple antennas at the receiver end at the same time and on the same frequency band greatly minimizes errors and optimizes the data speed. This module also combines high-speed wireless connectivity with embedded multi-constellation and high-sensitivity GNSS (GPS, GLONASS and BeiDou) receiver for positioning.

A rich set of interfaces (such as LCM, Camera, Touch Panel, MIC, SPK, UART, USB, I2C, SPI) extend the applicability of the module to a wide range of M2M applications, including smart POS, smart cash registers, smart home gateways, smart robots, smart wearables, security surveillance, PDA & tablets, vending machines, delivery lockers, police and law enforcement equipment, in-car video streaming and entertainment systems, etc.

Key Benefits
* LTE Cat 6 modem supporting 2 x 20MHz carrier aggregation, with maximum download speed up to 300Mbps
* Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage
* Dual LCDs and dual touch panels for independent display and operation: 1920 x 1200 @60fps for primary display and 1920 x 1080 @60fps for secondary display
* Support up to four cameras, with two of them working simultaneously
* Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment
* Support recording and playback of 4k videos at 30fps


Quectel SC600T Module Specifications´╝Ü


* Variant for EMEA/India/Korea/Taiwan/South Asia/Latin America/Australia/New Zealand -- Quectel SC600T-EM*:
- LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28
- LTE TDD: B38/B39/B40/B41
- WCDMA: B1/B2/B4/B5/B8
- GSM: 850/900/1800/1900MHz


* Variant for North America -- Quectel SC600T-NA*:
- LTE FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71
- LTE TDD: B41
- WCDMA: B2/B4/B5


* Variant for Japan -- Quectel SC600T-JP*:
- LTE FDD: B1/B3/B5/B8/B11/B18/B19/B21/B26/B28
- LTE TDD: B41
- WCDMA: B1/B6/B8/B19


* Variant for the Global -- Quectel SC600T-WF*:
- Only Support Wi-Fi & BT

* LTE data rates:
- Cat 6 FDD: Max 300Mbps (DL)/50Mbps (UL)
- Cat 6 TDD: Max 265Mbps (DL)/35Mbps (UL)


* UMTS data rates:
- DC-HSDPA: Max 42Mbps (DL)
- DC-HSUPA: Max 11.2Mbps (UL)
- WCDMA: Max 384Kbps (DL/UL)


* GSM data rates:
- GPRS: Max 107Kbps (DL)/85.6Kbps (UL)
- EDGE: Max 296Kbps (DL)/236.8Kbps (UL)


* Electrical Characteristics
- Supply Voltage: 3.55V~4.4V, 3.8V Typ.
- Consumption: 70uA @power off, 3.6mA @sleep, Typ.

* Audio & Video
VoLTE:
- Crystal Clear VoLTE with Ultra HD Voice and SRVCC/CSFB
- High Fidelity Music Playback of 24-bit/192kHz


Video:
Encode:
- 3840x2160 @30fps (HEVC/H.264)
- 1080p @30fps (MPEG-4/VP8)
- 864x480 @30fps (H.263)
Decode:
- 3840x2160 @30fps (HEVC/H.264,VP8/VP9)
- 1080p @60fps (VC-1/MPEG-4/)
- 1080p @30fps (DivX4.x/5.x/6.x,MPEG-2)
- 864x480 @30fps (H.263)
- 720x480 @30fps (DivX3.11)
- Wi-Fi Display Supports up to 1080P at 30fps for Encoding and Decoding


* Interfaces
- LCM: 4-lane MIPI_DSI0 + 4-lane MIPI_DSI1´╝î WUXGA (1920×1200) @60fps
- Camera: 3 Groups of 4-lane MIPI_CSI, support up to 2.1Gbps/Lane; Support 3 or 4 Cameras; Up to 24MP with Dual ISPs
- Touch Panel: Capacitive Touch Panel
- Audio: Speaker, Earpiece, Headphone and three Microphones (including one Noise-canceling Microphone) for Analog Audio
- USB: Compliant with USB 3.0/2.0 , Support USB OTG
- I2C: × 5
- (U)SIM: × 2 (1.8V/2.95V)
- UART: × 3, supports 4Mbps with Hardware Flow Control)
- SD Card: × 1 (3.0, 4-bit SDIO)
- PWRKEY: × 1.8V, Pulled-up Internally
- SPI: × 2 (Can be Multiplexed into UART and I2S Respectively, and I2S Supports Both Tx and Rx)
- ADC: × 2
- GPIO: × 19
- Motor Drive: × 1
- Flash Driver: × 2
- LED Sink: × 4
- Antenna: 4 Solder Pads for Main/Rx-diversity/GNSS/Wi-Fi & BT Antenna, Respectively

* Enhanced Features
- WLAN: 2.4G/5G, 802.11 a/b/g/n/ac
- Bluetooth: BT2.1+EDR/3.0/4.1 LE/4.2 BLE
- GNSS: GPS/GLONASS/BeiDou
- LTE Cat 6 Modem with 2 × 20MHz CA
- Support Rx-diversity, DL MIMO 2 × 2
- Support 3GPP E-UTRA Release 12
- Bandwidth: 1.4/3/5/10/15/20MHz
- Build-in Charge IC & Fuel Gauge
- Support Qualcomm Quick Charge 3.0 (Optional)
- Support Dual LCDs for Independent Display
- Support Dual SIM Dual Standby
- Firmware Upgrade via USB interface


* General Features
- OS: Android 9.0
- Memory:
> 16GB eMMC+2GB LPDDR3 (Default)
> 32GB eMMC+4GB LPDDR3 (Optional)
- Operating Temperature: -35C ~ +65°C
- Dimensions: 43.0mm × 44.0mm × 2.85mm
- Package: LCC + LGA Package
- Weight: Approx. 13.0g
