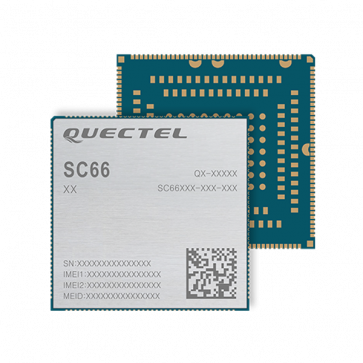

Quectel SC66 LTE Smart Module

Quectel SC66 series is Quectel’s new generation of multi-mode Smart LTE Cat 6 module with Android 9.0/10.0. Based on Qualcomm ARM KryoTM 260 64-bit octa-core high-performance processor with built-in AdrenoTM 512 GPU, it is an ideal solution for a wide range of industrial and consumer applications requiring high data rates and multimedia functions. SC66 series is available in five variants: SC66-CE, SC66-E, SC66-A, SC66-J and SC66-MW.

Quectel SC66 series supports multiple-input multiple-output (MIMO) technology. The use of multiple antennas at the receiver end at the same time and on the same frequency band greatly minimizes errors and optimizes data speed. The module also combines high-speed wireless connectivity with embedded multi-constellation and high-sensitivity GNSS (GPS, GLONASS, BeiDou, QZSS and SBAS) receiver for positioning.

A rich set of interfaces (such as LCM, Camera, Touch Panel, MIC, SPK, UART, USB, I2C, SPI) extend the applicability of the module to a wide range of M2M applications, including smart POS, smart cash registers, smart home gateways, smart robots, smart wearables, security surveillance, PDA & tablets, vending machines, delivery lockers, AI, police and law enforcement equipment, in-car video streaming and entertainment systems, etc.

Key Benefits

* Supports LTE Cat 6 and 2 × 20 MHz carrier aggregation, with maximum downlink speed of up to 300 Mbps
* Worldwide LTE, UMTS/HSPA+, TD-SCDMA, CDMA/EVDO and GSM/GPRS/EDGE coverage
* Supports MIPI_DSI (up to 2560 × 1600 @ 60 fps) and DP over USB Type-C (up to 4096 × 2160 @ 30 fps) for dual independent display
* Supports MIPI_DSI0 (1920 × 1080 @ 60 fps) and MIPI_DSI1 (1920 × 1080 @ 60 fps) for dual independent display as an option
* Supports up to four cameras, with two of them working simultaneously
* Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment
* Supports recording and playback of 4K videos @ 30 fps

Quectel SC66 Module Technical Specifications:

* LTE Cat6 Smart Module

* General Features
- OS: Android 9.0
- Memory: 32GB eMMC + 3GB LPDDR4X (Default)
- 64GB eMMC + 4GB LPDDR4X (Optional)
- Operating Temperature: -35C ~ +65°C
- Dimensions: 43.0mm × 44.0mm × 2.85mm
- Package: LCC + LGA Package
- Weight: Approx. 12.0g

* Variant for China/India - Quectel SC66-CE*:
- LTE FDD: B1/B3/B5/B8
- LTE TDD: B34/B38/B39/B40/B41
- WCDMA: B1/B8
- TD-SCDMA: B34/B39
- EVDO/CDMA: BC0
- GSM: 1800/900MHz

* Variant for EMEA/Korea/Thailand - Quectel SC66-E*:
- LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28(A+B)
- LTE TDD: B38/B39/B40/B41①
- WCDMA: B1/B2/B4/B5/B8
- GSM: 850/900/1800/1900MHz

* Variant for North America - Quectel SC66-A*:
- LTE FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71
- LTE TDD: B41①
- WCDMA: B2/B4/B5

* Variant for Japan - Quectel SC66-J*:
- LTE FDD: B1/B3/B5/B8/B11/B18/B19/B21/B26/B28(A+B)
- LTE TDD: B41②
- WCDMA: B1/B6/B8/B19

* Variant for the Global - Quectel SC66-MW*
- Only Support 2 × 2 Wi-Fi MIMO& BT

* LTE data rates:
- Cat 6 FDD: Max 300Mbps (DL)/50Mbps (UL)
- Cat 6 TDD: Max 265Mbps (DL)/30Mbps (UL)
- Cat 4 FDD: Max 150Mbps (DL)/50Mbps (UL)
- Cat 4 TDD: Max 130Mbps (DL)/30Mbps (UL)

* UMTS data rates:
- DC-HSDPA: Max 42Mbps (DL)
- DC-HSUPA: Max 11.2Mbps (UL)
- WCDMA: Max 384Kbps (DL/UL)

* TD-SCDMA data rates: Max 4.2Mbps (DL)/2.2Mbps (UL)

* CDMA2000 data rates:
- EVDO: Max 3.1Mbps (DL)/1.8Mbps (UL)
- 1X Advanced: Max 307.2Kbps (DL/UL)

* GSM data rates:
- GPRS: Max 107Kbps (DL)/85.6Kbps (UL)
- EDGE: Max 296Kbps (DL)/236.8Kbps (UL)

* Audio & Video
- Crystal Clear VoLTE with Ultra HD Voice and SRVCC/CSFB
- High Fidelity Music Playback of 24-bit/192kHz
- Video Encoding/Decoding up to 4K at 30fps
- Wi-Fi Display Support up to 1080P at 30fps for Encoding and Decoding

* Interfaces
- LCM: 2560 × 1600 @60fps primary display + 4k @30fps over DP, 24 bpp RGB; Dual MIPI_DSI
- Camera: 3 Groups of 4-lane MIPI_CSI, support up to 2.1Gbps/Lane; Support 3 or 4 Cameras; Up to 24MP with Dual ISPs
- Touch Panel: Capacitive Touch Panel
- Audio: Speaker, Earpiece, Headphone and three Microphones (including one Noise-canceling Microphone) for Analog Audio
- USB: USB3.1 × 1, USB2.0 × 1
- I2C: × 5
- (U)SIM: × 2 (1.8V/2.95V)
- UART: × 4, Each of the four UARTs supports up to 4Mbps, One of the four UARTs supports Hardware Flow Control
- SD Card: × 1 (3.0, 4-bit SDIO)
- PWRKEY: × 1 ,1.8V, Pulled-up Internally
- SPI: × 1
- ADC: × 2
- GPIO: × 21
- Antenna: × 5, Main/Rx-diversity/GNSS/Wi-Fi & BT Antenna interfaces and MIMO Wi-Fi Antenna interface (SC66-CE does not support MIMO Wi-Fi)

* Enhanced Features
- WLAN: 2.4G/5G, 802.11 a/b/g/n/ac
- Bluetooth: BT2.1+EDR/3.0/4.1 LE/4.2 BLE/BT5.0
- GNSS: GPS/GLONASS/BeiDou
- LTE Cat 6 Modem with 2 × 20MHz CA
- Support Rx-diversity , DL MIMO 2 × 2
- Support 3GPP E-UTRA Release 12
- Bandwidth: 1.4/3/5/10/15/20MHz
- Build-in Charge IC & Fuel Gauge
- Support Qualcomm Quick Charge
- Support Dual Independent Display
- Support Dual SIM Dual Standby
- A/B OTA Firmware Upgrade via USB

* Approvals
Carrier:
- Verizon*/AT&T* (North America)
Regulatory:
- GCF* (Global)
- CE* (Europe)
- FCC (North America)
- IC (Canada)
- Anatel* (Brazil)
- CCC/SRRC*/NAL* (China)
- JATE*/TELEC* (Japan)
- RCM* (Australia/New Zealand)

* Others: RoHS Compliant
