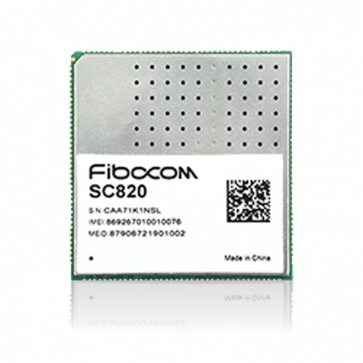

Fibocom SC820 SoC Smart Module

Fibocom SC820 series is an Android-powered smart LTE module designed based on the Qualcomm octa-core 64-bit ARM Cortex-A53 processor MSM8953 platform, with a clock speed up to 2.0GHz and an open Android N operating system. The module has powerful performance and rich multimedia functions. With a built-in high-performance graphics processing engine (Qualcomm Adreno 506 GPU), it can smoothly plays 1080P video, supports dual-screen display, with a resolution up to 1920*1200 and dual-camera function.

The module supports multiple long-distance communication mode and short-distance wireless transmission technologies like WIFI and Bluetooth, supports GNSS wireless positioning technology, and has multiple extension interfaces such as MIPI/USB/UART/SPI/I2C. This product can be widely used in smart cash registers, wireless payment, security monitoring, high-end police or law enforcement equipment, vehicle equipment, smart handheld devices, logistics cabinets, advertising machines and other industries, so it is the preferred solution for the core systems of intelligent wireless products.

Fibocom SC806 Module Specifications:

Variant Models:

Fibocom SC820-CN
-----------------------------------
* LTE-FDD: B1/B3/B5/B8
* LTE-TDD: B38/B38/B39/B40/B41
* UMTS: WCMDA B1/B8
* CDMA/EVDO: BC0/EVDO Rev.A
* TD-SCDMA: B34/B39
* GSM/EDGE: 900/1800MHz
* WIFI: 802.11 a/b/g/n/ac, 2.4G+5G
* BT: BT4.2+(CDR/EDR+LE)
* GNSS: GPS/A-GPS/GLONASS/BD
* Area: China
* Certificate: RoHS/CCC

Fibocom SC820-W (WiFi Module)
-----------------------------------
* LTE-FDD:
* LTE-TDD:
* UMTS:
* CDMA/EVDO:
* TD-SCDMA:
* GSM/EDGE:
* WIFI: 802.11 a/b/g/n, 2.4G+5G
* BT: BT 4.1 /4.2 BLE
* GNSS:
* Area: WiFi
* Certificate:

Basic Features
-----------------------------------
* Memory: LPDDR3 RAM: 2GB, eMMC Flash:16 GB

* Dimension(mm): 43.50 x 45.00 x 2.85

* Package: 156 LCC pin + 72 LGA pin

* OS: Android Nougat

* Voltage: DC 3.5-4.2V

* Operating Temp.: -30°C ~ +70°C

* Weigh: About 9.2g

Processor
-----------------------------------
* Chipset: MSM8909

* Core：8 x Cortex-A53

* CPU: 2.0 GHz/1.8GHz

* GPU：Adreno506, API support OpenCL2.0 FP, DX12，OpenGL ES 3.1+,AEP

* DDR: 2GB LPDDR3 RAM

* Flash: 16GB eMMC Flash

Data Transmission
-----------------------------------
* LTE FDD(Mbps):150(DL)/50(UL)

* LTE TDD(Mbps):130(DL)/35(UL)

* DC-HSPA+(Mbps):42(DL)/5.76(UL)

* HSPA/HSPA+(Mbps):21(DL)/5.76(UL)

* UMTS(kbps):384(DL)/384(UL)

* TD-SCDMA(Mbps):4.2(DL)/2.2(UL)

* EDGE(kbps):236.8(DL)/236.8(UL)

* GPRS(kbps):85.6(DL)/85.6(UL)

Video&Audio
-----------------------------------
* Video Encode: 4K30(HEVC/H.264/VP8/VP9/MPEG4/VC1)

* Video Decode:
- 4K30(HEVC/H.264/VP8/MPEG4/ SW VP9)
- 1.8GHz verison only support 1080P@60fps
- Speaker:1 x Mono,differential 1W CLASS-D

* Speaker: Receiver:1 x Mono, AB

* Receiver: Mic: 2 x analog microphones

* Handset: 1 x Stereo, single-ended output

Interfaces
-----------------------------------
* UART/SPI:3 x UART Up to 4Mbps ,1 x SPI up to 50Mbps

* I2C:4 x I2C Up to 3.4 Mbps

* USB:1 x USB2.0/3.0,Support OTG

* SDIO:1 x SD3.0

* GPIO:30 x GPIO

* Display:2 x 4-lane MIPI_DSI,up to 1920*1200 60fps

* CAM:ISP 3 x MIPI_CSI(Up to 24M 4Lanes)

* I2S:4 x Data Slave/Master

* Keys:Power on/off,Volume up,Volume down,Reset

* USIM:2 x USIM,compatible with 2.95/1.8V voltage level

Approvals
-----------------------------------
* Regulation:RoHS/CCC
