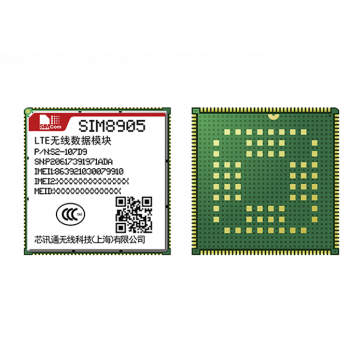

SIMCOM SIM8905 SIM8905A SIM8905E LTE Cat4 Smart Module

SIMCOM SIM8905 is an ultra compact and reliable LTE wireless smart module based on Qualcomm MSM8909 multiple-mode LTE platform and supports multi-band LTE-FDD/TDD/TD-SCDMA/DC-HSPA+/HSPA/UMTS/EVDO/EGDE/GPRS/GSM/GNSS networks designed with very powerful processors, allowing customers to benefit from small dimensions and cost-effective product solutions with low power consumption in high-speed throughput.

SIMCOM SIM8905 Module Specifications:

* SIMCOM 4G LTE Module

* Category: LTE Cat4

* Chipset: Qualcomm MSM8909

* Support LTE-FDD/TDD/TD-SCDMA/DC-HSPA+/HSPA/UMTS/EVDO/EGDE/GPRS/GSM/GNSS

* WLAN: 802.11b/g/n, and BT 4.0

* Supply voltage range: 3.4 ~ 4.4 V

* Operation temperature: -25℃to +75℃

* Dimension: 40.5*40.5*2.8mm

* Weight: 10.6g

* LTE FDD/TDD Rel-9 Cat4/Rel-10 Cat4

* UTMS (SIM8905)

* HSPA+ DC-HSPA+,Rel-10 (SIM8905)

* TD-SCDMA HSDPA Cat. 15 (SIM8905)

* TD-SCDMA HSUPA Cat. 6 (SIM8905)

* GSM GSMR99,GPRS,EDGE

* GNSS/BEIDOU gpsOneGen 8B;standalone;assisted,XTRA;

SIMCOM SIM8905 Variant models and frequency bands:

SIMCOM SIM8905:
- Quad-Band LTE-FDD B1/B3/B5/B8
- Quad-Band LTE-TDD B38/B39/B40/B41
- Tri-Band UMTS/HSDPA/HSPA+ B1/B5/B8
- Dual-Band TD-SCDMA B34/B39
- EVDO/CDMA BC0
- Tri-Band GSM/GPRS/EDGE/EGSM 850/900/DCS1800

SIMCOM SIM8905A:
- Nine-Band LTE-FDD B2/4/5/7/12/13/17/25/26
- One-Band LTE-TDD B41
- Five-Band UMTS/HSDPA/HSPA+ B1/B2/B4/B5/B8
- Tri-Band GSM/GPRS/EDGE B2/B5/B8

SIMCOM SIM8905E:
- Six-Band LTE-FDD B1/B3/B5/B7/B8/B20
- Tri-Band LTE-TDD B38/B40/B41
- Quad-Band WCDMA B1/B2/B5/B8
- GSM/GPRS/EDGE B2/B3/B5/B8

* Data rates:

- LTE-FDD/LTE-TDD: Uplink up to 50Mbps, Downlink up to 150Mbps

- LTE-TDD: Uplink up to 35Mbps, Downlink up to 130Mbps

- DC-HSPA+: Uplink up to 5.76Mbps, Downlink up to 42Mbps

- WCDMA/HSPA/HSPA+: 42.2 Mbps(DL),11.5 Mbps(UL)

- WCDMA-Uplink/Downlink up to 384Kbps (SIM8905E)

- CDMA 1xRTT153.6kbps(DL) 153.6kbps(UL)

- CDMA EV-DO3.1Mbps(DL) 1.8Mbps(UL)

- TD-SCDMA2.8Mbps(DL) 2.2Mbps(UL)

- EDGE296kbps(DL) 236.8kbps(UL) (SIM8905/E)

- EDGE -Uplink/Downlink up to 236.8Kbps (SIM8905A/E)

- GPRS107kbps(DL) 85.6kbps(UL) (SIM8905/E)

- GPRS -Uplink/Downlink up to 85.6Kbps (SIM8905A)

Other Features

* 1080P video decode & 720P video encode

* USB Driver for Microsoft Windows2000/XP/Vista/Win7/Win8/Win10/Windows CE/Mobile/ Linux /Android (SIM8905)

* USB Driver for Microsoft Windows 2000/XP/Vista (SIM8905A/E)

* USB Driver for Win7/Win8(SIM8905A/E)

* Android5.x/Android6/Android7(SIM8905A/E)

* Android5.x/7.1

* 8GBEMMC+8Gb LPDDR3

* Interfaces
- 210 SMT pins including
- 2 Camera (MIPI,8M)
- LCD (MIPI,720P)
- Analog Audio (Microphone, Headset, Handset)
- USB 2.0
- UART
- I2C
- ADC
- Battery
- GPIO
- SPI
- RTC
- SD3.0
- 2 USIM Card
- Micro SD card interface (SIM8905A)
- Battery & Charger (SIM8905A)
- Micro SD card interface (SIM8905E)

* Certifications:
- ROHS
- REACH
- CCC (SIM8905)
- FCC(TBD) (SIM8905A)
- CE (SIM8905E)
