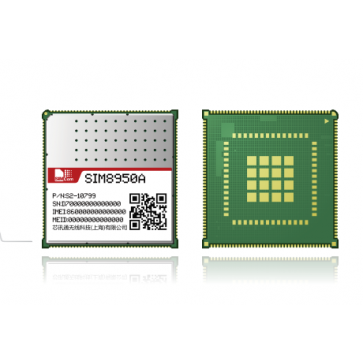

SIMCOM SIM8950A LTE Cat4 Smart Module

SIMCOM SIM8950A is an LTE wireless module based on Qualcomm MSM8953 multiple-mode LTE platform and supports multi-band LTE-FDD/TDD/DC-HSPA+/HSPA/UMTS/EGDE/GPRS/GSM/GNSS networks designed with very powerful processors, allowing customers to benefit from small dimensions and cost-effective product solutions with low power consumption in high-speed throughput.

SIMCOM SIM8950A Module Specifications:

* SIMCOM 4G LTE Module

* Category: LTE Cat4

* Chipset: Qualcomm MSM8953

* Support LTE-FDD/TDD/DC-HSPA+/HSPA/UMTS/EGDE/GPRS/GSM/GNSS

* WLAN: 802.11a/b/g/n/ac up to 433Mbps, 2.4GHz & 5GHz

* BT2.1+EDR/3.0/4.2 LE

* Supply voltage range: 3.4 ~ 4.4 V

* Operation temperature: : -25℃ to +75℃

* Storage temperature : -40℃ to +90℃

* Dimension: 44.1*45.6*2.8mm

* Weight: 12.5g

* LTE FDD/TDD Rel-9 Cat4/Rel-10 Cat7

* UTMS

* HSPA+ DC-HSPA+,Rel-10

* GSM GSM R99,GPRS,EDGE

* GNSS gpsOne Gen 8C lite; GPS, BeiDou, GLONASS or Galileo;

* WIFI 2.4/5G 802.11a/b/g/n/ac up to 433Mbps

* BT2.1+EDR/3.0/4.2 LE-SIM8950E

SIMCOM SIM8950A Supported frequency bands:

- Quad-Band LTE-FDD B2/4/5/7/12/13/17/25/26
- Five-Band LTE-TDD B41
- Dual-Band UMTS/HSDPA/HSPA+ B1/B2/B4/B5/B8
- Third-Band GSM/GPRS/EDGE B2/B5/B8

* Data rates:

- LTE-FDD: Uplink up to 50Mbps, Downlink up to 150Mbps

- LTE-TDD：Uplink up to 35Mbps, Downlink up to 130Mbps

- HSUPA: Uplink up to 5.76 Mbps, Downlink up to 42 Mbps

- UMTS/WCDMA: Uplink/Downlink up to 384Kbps

- EDGE: Uplink up to 236.8Kbps, Downlink up to 296kbps

- GPRS: Uplink up to 85.6Kbps, Downlink up to 107kbps

Other Features

* 2GB LPDDR3 RAM + 16GB eMMC flash

* Octa-core ARM cortex A53 2.0GHz

* Video 4K at 30fps, 1080p at 60 fps Encode (H.264/H.265/VP8) Decode(/H.264/H.265/VP8/VP9)

* GPU Andreno 506 650MHz, 3D graphics accelerator OpenCL2.0 FP, DX12, PenGL ES3.1+, AEP

* Web technologies V8 JavaScript Engine optimizations JPEG hardware decode acceleration IP and HTTP tuning Flash and video processor decode optimization

* Android7.x

* Interfaces
- 2 Camera (MIPI, 24MP)
- 2 LCD (MIPI,FHD 1920X1200 @60fps) Capacitive panels via ext IC
- Analog Audio (Microphone, Headset, Handset)
- USB 2.0/3.0, OTG, type C
- UART
- I2C interface
- ADC 10bit
- Micro SD card interface
- Battery
- GPIO
- SPI
- RTC

* Certifications: ROHS(TBD)
