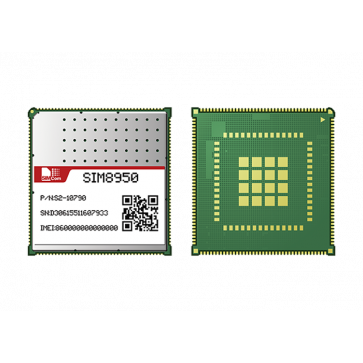

SIMCOM SIM8950 SIM8950E LTE Cat4 Smart Module
* SIMCOM 4G LTE Smart Module
* Chipset: Qualcomm MSM8953
* LTE DL 150Mbps, UL 50Mbps
* 2GB LPDDR3 RAM + 16GB eMMC flash
* Octa-core ARM cortex A53 2.0GHz
Availability: In stock
Product Downloads
SIMCOM SIM8950 is an LTE wireless module based on Qualcomm MSM8953 multiple-mode LTE platform and supports multi-band LTE-FDD/TDD/TD-SCDMA/DC-HSPA+/HSPA/UMTS/EVDO/EGDE/GPRS/GSM/GNSS networks designed with very powerful processors, allowing customers to benefit from small dimensions and cost-effective product solutions with low power consumption in high-speed throughput.
SIMCOM SIM8950 Module Specifications:
* Category: LTE Cat4
* Chipset: Qualcomm MSM8953
* Support LTE-FDD/TDD/TD-SCDMA/DC-HSPA+/HSPA/UMTS/EVDO/EGDE/GPRS/GSM/GNSS
* WLAN: 802.11a/b/g/n/ac up to 433Mbps, 2.4GHz & 5GHz
* BT2.1+EDR/3.0/4.2 LE
* Supply voltage range: 3.4 ~ 4.4 V
* Operation temperature: : -25℃ to +75℃
* Storage temperature : -40℃ to +90℃
* Dimension: 44.1*45.6*2.8mm
* Weight: 12.5g
* LTE FDD/TDD Rel-9 Cat4/Rel-10 Cat7
* UTMS
* HSPA+ DC-HSPA+,Rel-10
* TD-SCDMA HSDPA Cat.15 - SIM8950
* TD-SCDMA HSUPA Cat.6 - SIM8950
* GSM GSM R99,GPRS,EDGE
* GNSS gpsOne Gen 8C lite; GPS, BeiDou, GLONASS or Galileo;
* WIFI 2.4/5G 802.11a/b/g/n/ac up to 433Mbps-SIM8950E
* BT2.1+EDR/3.0/4.2 LE-SIM8950E
SIMCOM SIM8950 Variant models and frequency bands:
SIMCOM SIM8950:
- Quad-Band LTE-FDD B1/B3/B5/B8
- Five-Band LTE-TDD B34/B38/B39/B40/B41
- Dual-Band UMTS/HSDPA/HSPA+ B1/B8
- Dual-Band TD-SCDMA B34/B39
- EVDO/CDMA BC0
- Dual-Band GSM/GPRS/EDGE B3/B8
SIMCOM SIM8950E:
- Five-Band LTE-FDD B1/3/5/7/8/20
- Third-Band LTE-TDD B38/B40/B41
- Quad-Band UMTS/HSDPA/HSPA+ B1/B2/B5/B8
- Quad-Band GSM/GPRS/EDGE B2/B3/B5/B8
* Data rates:
- LTE-FDD/LTE-TDD: Uplink up to 50Mbps, Downlink up to 150Mbps
- HSPA+: Uplink up to 11 Mbps, Downlink up to 42 Mbps
- UMTS: Uplink/Downlink up to 384Kbps
- TD-HSDPA/HSUPA: Uplink up to 2.2 Mbps, Downlink up to 2.8 Mbps
- TD-SCDMA: Uplink up to 128Kbps, Downlink up to 384Kbps
Other Features
* 2GB LPDDR3 RAM + 16GB eMMC flash
* Octa-core ARM cortex A53 2.0GHz
* Video 4K at 30fps, 1080p at 60 fps Encode (H.264/H.265/VP8) Decode(/H.264/H.265/VP8/VP9)
* GPU Andreno 506 650MHz, 3D graphics accelerator OpenCL2.0 FP, DX12, PenGL ES3.1+, AEP
* Web technologies V8 JavaScript Engine optimizations JPEG hardware decode acceleration IP and HTTP tuning Flash and video processor decode optimization
* Android7.x
* Interfaces
- 2 Camera (MIPI, 24MP)
- 2 LCD (MIPI,FHD 1920X1200 @60fps) Capacitive panels via ext IC
- Analog Audio (Microphone, Headset, Handset)
- USB 2.0/3.0, OTG, type C
- UART
- I2C interface
- ADC 10bit
- Micro SD card interface
- Battery
- GPIO
- SPI
- RTC
* Certifications: ROHS(TBD)
