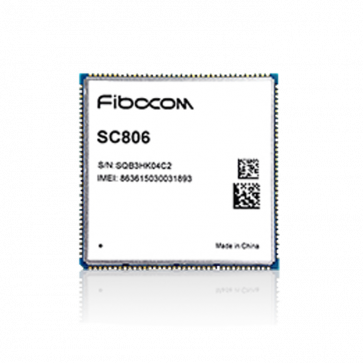

Fibocom SC806 SoC Smart Module

* Fibocom SoC module


* Quad-core A7 processor with1.1 GHz CPU Clock Speed


* Support global application with multipleband configuration


* Android 7.1, Qualcomm MSM8909 Chipset


* Long-term lifecycle supply guarantee

Sign up for price alert Sign up to get notified when this product is back in stock

Availability: Out of stock

$199.00

Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!

Details
Details

Fibocom SC806 series is an LTE Cat 4 intelligent module designed with the Qualcomm MSM8909 platform as the basis with a smart and open Android operating system. The SC806 series is available in five versions, and covers the network bands major carriers worldwide, including SC806-CN/ SC806-AM/ SC806-AB/ SC806-AE/ SC806-W (Supports Wi-Fi & BT only). The module, LCC+LGA packaged for easy patching, integrates core components such as baseband, EMCP, PMU, tranceiver and PA, and supports long-distance communication modes such as FDD-LTE/TDD-LTE, WCDMA, TDS-CDMA, CDMA, CDMA2000-EVDO and GSM and short-distance 2.4G+5G wireless transmission technologies like WIFI/Bluetooth.


With built-in LNA, it supports GNSS wireless positioning technology. In addition, the module has rich extension interfaces such as UART/SPI/I2C/USB to be connected to an HD touch screen, and supports front and rear cameras. As an excellent solution for the core system of wireless intelligent products worldwide, this product can be widely used in smart wireless payment, smart robot, smart home, smart city and other industries.

Fibocom SC806 Module Specifications:


Variant Models:

Fibocom SC806-AE
-----------------------------------
* LTE-FDD: B1/B3/B5/B7/B8/B20
* LTE-TDD: B38/B40/B41
* UMTS: B1/B2/B3/B5/B8
* CDMA/EVDO: BC0/EVDO Rev.A
* TD-SCDMA:
* GSM/EDGE: 850/900/1800/1900MHz
* WIFI: 802.11 a/b/g/n, 2.4G+5G
* BT: BT 4.1 /4.2 BLE
* GNSS: GPS/GLONASS/Beidou
* Area: Europe/Asia
* Certificate: RoHS/CE/GCF


Fibocom SC806-AB
-----------------------------------
* LTE-FDD: B1/B3/B5/B7/B8/B28
* LTE-TDD: B40
* UMTS: B1/B2/B5/B8
* CDMA/EVDO:
* TD-SCDMA:
* GSM/EDGE: 850/900/1800/1900MHz
* WIFI: 802.11 a/b/g/n, 2.4G+5G
* BT: BT 4.1 /4.2 BLE
* GNSS: GPS/GLONASS/Beidou
* Area: Australia & Brazil
* Certificate: RoHS/CE/RCM*


Fibocom SC806-AM
-----------------------------------
* LTE-FDD: B2/B4/B5/B12/B13/B17
* LTE-TDD:
* UMTS: B2/B4/B5
* CDMA/EVDO:
* TD-SCDMA:
* GSM/EDGE:
* WIFI: 802.11 a/b/g/n, 2.4G+5G
* BT: BT 4.1 /4.2 BLE
* GNSS: GPS/GLONASS/Beidou
* Area: North American
* Certificate: RoHS/FCC/PTCRB*/AT&T*/Verizon*

Fibocom SC806-CN
-----------------------------------
* LTE-FDD: B1/B3/B5/B8
* LTE-TDD: B38/B39/B40/B41
* UMTS: WCMDA B1/B8 Support HSUPA /HSPA+
* CDMA/EVDO: BC0/EVDO Rev.A
* TD-SCDMA: B34/B39
* GSM/EDGE: 900/1800MHz
* WIFI: 802.11 b/g/n, 2.4G+5G
* BT: BT 4.1 /4.2 BLE
* GNSS: GPS/GLONASS/Beidou
* Area: China
* Certificate: RoHS/CCC


Fibocom SC806-W
-----------------------------------
* LTE-FDD:
* LTE-TDD:
* UMTS:
* CDMA/EVDO:
* TD-SCDMA:
* GSM/EDGE:
* WIFI: 802.11 a/b/g/n, 2.4G+5G
* BT: BT 4.1 /4.2 BLE
* GNSS:
* Area: WiFi
* Certificate:

Basic Features
-----------------------------------
* Memory: 1GB LPDDR3 RAM; 8GB eMMC Flash

* Dimension(mm): 40.50 x 40.50 x 2.85

* Package: 146 LCC pin + 64 LGA pin

* OS: Android Lollipop/Nougat

* Voltage: DC 3.3-4.5V

* Operating Temp.: -30°C ~ +70°C

* Weigh: About 9.2g


Processor
-----------------------------------
* Chipset: MSM8909

* Core:4 x ARM Cortex-A7

* CPU: Qualcomm Quad Core Processor1.1GHz

* GPU:Adreno 304 @ 400MHz

* DDR: 1GB LP-DDR3

* Flash: 8GB eMMC


Data Transmission
-----------------------------------
* LTE FDD: Max 150Mbps (DL)/Max 50Mbps (UL)

* LTE TDD: Max 130Mbps (DL)/Max 30Mbps (UL)

* UMTS/HSPA/HSPA+: 3GPP R8 HSPA+ Max 42Mbps(DL)/3GPP R6 HSUPA Max 5.76Mbps(UL)

* TD-SCDMA: 3GPP R8 Max 4.2Mbps(DL)/Max 2.2Mbps (UL)

* CDMA2000 1X/EVDO: Max 3.1Mbps(DL)/Max 1.8Mbps(UL)

* EDGE: Max 296kbps(DL)/Max 236.8kbps(UL)

* GPRS: Max 107kbps(DL)/Max 85.6kbps(UL)

* Wi-Fi: up to 150Mbps (SC806-CN: up to 72.2Mbps)

Video&Audio
-----------------------------------
* Video Encode: 720p@30
- H.264BP/MP–720P,30fps
- MPEG-4SP/H.263P0–WVGA,30fps
- VP8–WVGA,30fps

* Video Decode: 1080P@30
- H.264BP/MP/HP–RES, 30fps
- MPEG-4SP/ASP–RES, 30fps
- DivX4x/5x/6x–RES, 30fps
- H.263P0–WVGA, 30fps
- VP8–RES, 30fps

* Speaker: 1 x Mono,differential 800mW CLASS-D

* Receiver: 1 x Mono, AB

* Mic: 3 x analog microphones

* Handset: 1 x Stereo, single-ended output


Interfaces
-----------------------------------
* UART/SPI: 2 x UART Up to 4Mbps, 1 x SPI

* I2C: 2 x I2C Up to 3.4Mbps

* USB: 1 x USB2.0 up to 480Mbps ,Support OTG(Require 5V power supply)

* SDIO: 1 x SD3.0

* CAM:
- 1 x MIPI CSI-2lanes (up to 8Mp)
- 1 x MIPI CSI-1lanes (up to 2Mp)

* GPIO: typical 24 x GPIO

* Display: 1 x MIPI DSI- 4lanes 720P

* Keys: Power on/off ,Volume up,Volume down,Reset

* USIM: 2 x SIM card, support dual-card dual-standby(Default Single)

Approvals
-----------------------------------
* RoHS/CE/CCC/FCC/GCF/RCM*/PTCRB*/AT&T*/Verizon*(*=Planing)
