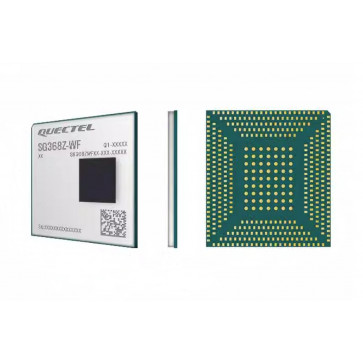

Quectel SG368Z-WF Smart Module

Quectel SG368Z series is a new generation Linux/Android smart module, integrating the Rockchip RK3568 IoT chip. It includes a high-performance quad-core ARM Cortex-A55 CPU, ARM Mali G52 GPU, 8M ISP HDR, 1T NPU computing power, Wi-Fi 5, and Bluetooth 4.2. It boasts powerful performance and meets the high computational, AI, and multimedia requirements of customers in both industrial and consumer applications.

Quectel SG368Z series also features a rich set of peripheral interfaces, including 1× HDMI/LVDS/RGB/MIPI/eDP (supporting triple display), Gigabit Ethernet, 3× SATA (multiplexed), multiple industrial serial ports, 4× USB, 2× PCIe, and more. With 4K video decoding capability, coupled with the 1T NPU and comprehensive deep learning algorithms, it can cover the requirements of domestic AI industrial control devices. It supports Linux/Android, external Cat 4/1, 5G, Wi-Fi 6, GNSS, and greatly expands its applications in the M2M field. It can be widely used in IoT gateways, smart commercial displays, industrial control device terminals, NAS, NVR/DVR, security monitoring equipment, and in-vehicle NVR industries.

Highlight Features:

* Quad-core ARM Cortex-A55 CPU 2 GHz

* ARM Mali G52 GPU

* 8M ISP HDR

* 1T NPU computing power

* 4K @ 60 fps video decoding

* 1080p @ 60 fps video decoding

* PCIe 3.0/ USB 3.0/ SATA 3.0/ SD 3.0/ RGMII

* HDMI 2.0/ MIPI DSI 1.2/ eDP 1.3/ LVDS/ RGB

* MIPI CSI 1.2

* IEEE 802.11a/ b/ g/ n/ ac

* Bluetooth 4.2

Quectel SG368Z-WF Smart Module Specifications:

* Product type: Quectel Smart Module

* Target region: Global

* Form factor: LGA

* OS: Linux (Kernel 4.19/ 5.10)/ Android 11/ 12/ 13

* Storage: LP4/LP4x，standard 2GB+32 GB（optional 4 GB+32 GB）

* Support DDR ECC

* Dimensions: 46.0×42.0×3.15mm

* Weight: 13.1g

* Working temperature: -10℃~+75℃

* WLAN: 2.4 & 5 GHz,Wi-Fi 5,802.11a/b/g/n/ac

* Bluetooth: BT 4.2 (BR/ EDR + BLE)
