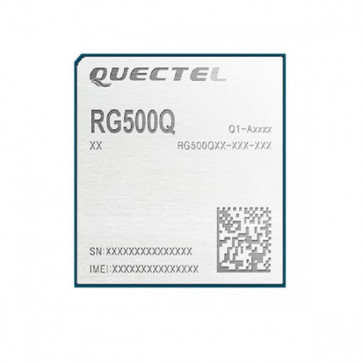

Quectel RG500Q-EU 5G Sub-6GHz Module

Quectel RG500Q-EU is a 5G Sub-6 GHz LGA module that's optimized for IoT and M2M applications. It's part of the RG500Q series, which uses 3GPP Rel-15 technology to provide data rates of up to 2.5 Gbps downlink and 900 Mbps uplink. The RG500Q-EU supports 5G NSA and SA modes, as well as Option 2 and 3a and 3x network architectures, making it backward compatible with 3G and 4G networks. It's also pin-to-pin compatible with the Quectel LTE-A Cat 12 EG512R-EA module.

Quectel RG500Q-EU has a number of features that make it suitable for a wide range of applications, including:

* Built-in network protocols: The RG500Q-EU has a variety of built-in network protocols, as well as industry-standard interfaces like USB 2.0/3.0/3.1, PCIe 3.0, RGMII, PCM, and UART. It also supports multiple drivers and software functions, including those for Windows, Linux, and Android.

* Integrated GNSS receiver: The RG500Q-EU has an integrated GNSS receiver that can provide more accurate, quicker, and more reliable positioning.

* Extended temperature range: The RG500Q-EU has an extended temperature range of -40°C to +85°C.

Quectel RG500Q-EU 5G Module Specifications:

* Quectel 5G Module

* Chipset: Qualcomm Snapdragon X55 5G modem

* Target Region: EMEA/ APAC (excl. China/ Japan)/ Brazil

* Form factor: LGA

* 5G NR and LTE-A Cat 12+ Dual mode module with LGA form factor, optimized for M2M and IoT applications

* Support both NSA and SA modes

* Dimensions: 41.0 x 44.0 x 2.75mm

* Frequency Bands:
- 5G NR NSA/SA: n1/ 3/ 5/ 7/ 8/ 20/ 28/ 38/ 40/ 41/ 77/ 78
- 5G MIMO:
DL 4 × 4: n1/ 3/ 7/ 38/ 40/ 41/ 77/ 78
UL 2 × 2: n41/ 77/ 78
- LTE-FDD: B1/ 3/ 5/ 7/ 8/ 20/ 28/ 32
- LTE-TDD: B38/ 40/ 41/ 42/ 43
- 4G DL 4 x 4 MIMO: B1/ 3/ 5/ 7/ 20/ 28/ 32/ 38/ 40/ 41/ 42
- WCDMA: B1/B5/B8

* GNSS: GPS/ GLONASS/ BDS/ Galileo/ QZSS

* Weight: 11g

* Temperature range:
- -30°C ~ +75°C (Operation Temperature)
- -40°C ~ +85°C (Extended Temperature)

* Control via AT Commands: 3GPP TS27.007 and Quectel Enhanced AT Commands

* Data Transmission:
- 5G SA Sub-6: Max. 2.1Gbps (DL)/ Max. 900Mbps (UL)
- 5G NSA Sub-6: Max. 2.5Gbps (DL)/ Max. 650Mbps (UL)
- LTE-FDD: Max. 1Gbps (DL)/ Max. 200Mbps (UL)
- WCDMA: Max. 42Mbps (DL)/ Max. 5.76Mbps (UL)

* Protocols: TCP/UDP/FTP/HTTP/HTTPS /PING/SMS

* Interfaces:
- (U)SIM × 2, 1.8V/ 3.0V
- UART × 3
- SD card x 1
- USB 2.0/3.0/3.1 x 1
- PCle: PCIe Gen3 × 2 Lane
- RGMII x 1
- PCM x 1
- I2S x 1
- I2C × 1
- SPI x 1
- ADC
- Antenna: Cellular: 4 + 2 (Optional), GNSS: 1

* Voice(Optional): Digital Audio and VoLTE (Voice over LTE)

* Enhanced Features
- MIMO 4 × 4 DL
- VoLTE Optional
- DTMF: Dual-tone Multi-frequency
- DFOTA Delta Firmware over the Air
- GNSS GPS/ GLONASS/ BeiDou/ Galileo

* Electrical Features
- Supply Voltage Range: 3.3V~4.3V, 3.8V Typ.
- Power Consumption
>TBD @Power off
>TBD @Sleep, Typ.
>TBD @Idle

* Software Features
- USB Serial Driver
> Windows 7/8/8.1/10/11,
> Linux 2.6~6.5,
> Android 4.x-13.x
- GNSS Driver: Android 4.x-13.x
- RIL Driver: Android 4.x-13.x
- NDIS Driver: Windows 7/8/8.1/10/11
- MBIM Driver: Windows 7/8/8.1/10/11, Linux 2.6~6.5,
- Gobinet Driver: Linux 2.6~6.5,
- QMI_WWAN Driver: Linux 2.6~6.5,
- PCIe Driver Windows 10, Linux 2.6~6.5,, Android 4.x-13.x

* Certifications: CE/ RCM/ CCC/ SRRC/ NAL/ KC/ JATE/ TELEC
