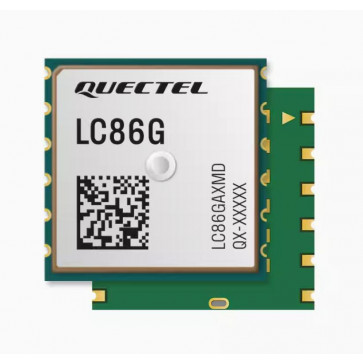

Quectel LC86G GNSS Module(LC86GAAMD)

Quectel LC86G GNSS Module Specifications：

* GNSS: GLONASS/GPS/ BeiDou/QZSS

* Form factor: LCC

* Dimensions: 16.0 × 16.0 × 6.95mm

* Weight: 6.5g

* Operating Temperature: -40 °C ~ +85 °C

* Storage Temperature: -40 °C ~ +90 °C

* Supported Bands:
- GPS L1 C/A, QZSS L1 C/A
- BDS B1l/B1C
- Galileo E1

* Chip Solution: AG3331

* L1 Band Receiver (C/A Code) Channel Number: 47 Track/ 99 Acq

* L1 Band Receiver (C/A Code) SBAS: WAAS/ EGNOS/ MSAS/ GAGAN

* A-GNSS: Supported

* Sensitivity:
- Autonomous Acquisition: -147dBm
- Reacquisition: -166dBm
- Tracking: -160dBm

* TTFF (With Easy)
- Cold Start: 12s, Autonomous
- Warm Start: 2s, Autonomous
- Hot Start: 1s

* Position Accuracy(autonomous): <2.5m CEP

* Velocity Accuracy(without aid): <0.1m/s

* Maximum Acceleration Accuracy (without aid) <0.1m/s²

* Timing Accuracy (1σ): <100ns

* Max Update Rate: 10Hz

* Baud Rate(default): 9600bps

* Geo-fence

* Jamming Detection

* Anti-jamming

* Built-in LNA

* Electrical Data
- Power Supply: 2.8V to 4.3V
- I/O Voltage: 2.7V to 2.9V
- Power Consumption (Acquisition): 32mA (GPS+GLONASS)
- Power Consumption (Tracking): 31mA (GPS+GLONASS)
- Power Consumption (Backup): 1.8mA@Standby Mode; 6μA@Backup Mode

* Interfaces:
- UART: Adjustable: 9600-921600bps, default：115200bps， update rate: 1Hz(default), up to 10Hz
- IIC(NMEA) 0183 v4.10

* Antenna type: Patch Antenna

* Recommended Applications: Vehicle or Asset Tracker, DVR, Connected PND & PDA, Safety, Digital Camera, etc.
