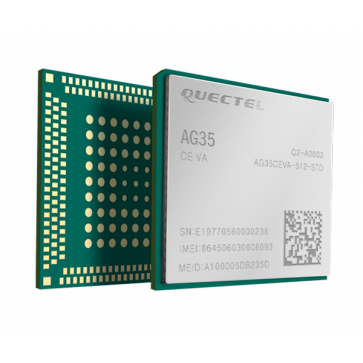

Quectel AG35 LTE Cat4 Module

* LTE Category 4 Module

* Many variants models (AG35-C, AG35-CE, AG35-NA, AG35-J, AG35-LA and AG35-E)

* LTE DL 150Mbps, UL 50Mbps

* Package: LGA

* Multi-constellation GNSS

* Control via AT Commands, Quectel Enhanced AT Commands

Sign up for price alert

Availability: In stock


Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!

* Required Fields


Quectel AG35 is a series of automotive grade LTE category 4 module developed by Quectel. Designed and manufactured according to IATF 16949:2016 quality management system, it is targeted at the IoV (Internet of Vehicles) applications. Adopting the 3GPP Rel. 10 LTE technology, it features maximally 150Mbps downlink and 50Mbps uplink data rates. It provides abundant interfaces for customers to develop applications, and its excellent performance in ESD and EMI protection ensures great robustness in harsh environments.

Quectel AG35 contains 3 variants (AG35-C, AG35-CE and AG35-E) to meet the market requirements of China and Europe. It is backward-compatible with existing EDGE and GSM/GPRS networks, making it can be connected even in remote areas devoid of 3G or 4G coverage.

Quectel AG35 supports multiple-input multiple-output (MIMO) technology, a cutting edge antenna technology capable of transmitting multiple data streams on multiple transmitters to multiple receivers. The antennas at each end of the communication circuit are combined to minimize errors and optimize data speed. The module also combines high-speed wireless connectivity with embedded multi-constellation high-sensitivity GNSS receiver for positioning.

A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows XP, Windows Vista, Windows 7, Windows 8/8.1, Windows CE, Linux and Android) extend the applicability of AG35 to a wide range of M2M applications in industrial, consumer and automotive markets. It is especially suitable for auto-related applications, such as fleet management, vehicle tracking, in-vehicle navigation system, vehicle remote monitoring, vehicle remote control, security monitoring and alarming, remote vehicle diagnostics, vehicle wireless routing, in-car entertainment, and more.

Key benefits:

* Ideal for automotive premarket applications with IATF 16949:2016 requirement

* Compliant with automotive quality processes such as APQP, PPAP, etc.

* Wide operation temperature range (-40°C to +85°C) meets the demanding requirements for automotive devices

* Excellent EMC protection ensures great robustness even in harsh environments

* Compact SMT form factor ideal for integration in slim and size-constrained automotive solutions

* MIMO technology meets demands for data rate and link reliability in modem wireless communication systems

* Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment.

Quectel AG35 Technical Specifications:

* LTE Category 4 Module

* Frequency Bands
- AG35-C
>LTE FDD: B1/B3/B8
>LTE TDD: B34/B38/B39/B40/B41
>TD-SCDMA: B34/B39
>GSM: 900/1800Mhz

- Quectel AG35-CE
>LTE FDD: B1/B3/B5/B8
>LTE TDD: B34/B38/B39/B40/B41
>TD-SCDMA: B34/B39
>CDMA2000 @1x/EVDO: BC0
>GSM: 900/1800MHz

- Quectel AG35-E
>LTE FDD: B1/B3/B5/B7/B8/B20/B28
>LTE TDD: B38/B40
>WCDMA: B1/B3/B8
>GSM: 900/1800MHz

- Quectel AG35-NA
>LTE FDD: B2/B4/B5/B7/B12/B13/B17
>WCDMA: B2/ B4/ B5
>GSM: 850/1900MHz

- Quectel AG35-LA
>LTE FDD: B2/B4/B5/B7/B12/B13/B17
>WCDMA: B2/ B4/ B5
>GSM: 850/1900MHz

- Quectel AG35-J
>LTE FDD: B1/ B3/ B5/ B8/ B9/ B19/ B21/ B28
>WCDMA: B1/ B3/ B5/ B6/ B8/ B19

* Data rates:
- LTE LTE FDD: Max 150Mbps (DL) Max 50Mbps (UL)
- LTE TDD: Max 61Mbps (DL) Max 18Mbps (UL)
- DC-HSPA+: Max 42Mbps (DL) Max 5.76Mbps (UL)
- UMTS: Max 384Kbps (DL) Max 384Kbps (UL)
- TD-SCDMA: Max 4.2Mbps (DL) Max 2.2Mbps (UL)
- CDMA/EVDO: Max 14.7Mbps (DL) Max 5.4Mbps (UL)
- EDGE: Max 236.8Kbps (DL) Max 236.8Kbps (UL)
- GPRS: Max 85.6Kbps (DL) Max 85.6Kbps (UL)

* LTE Version: 3GPP E-UTRA Release 10

* Bandwidth: 1.4/3/5/10/15/20MHz

* Antenna: DL MIMO, supports Rx-diversity

* Supply Voltage Range: 3.3V~4.3V, 3.8V Typ.

* Operation Temperature: -40°C ~ +85°C

* Dimensions: 33.0mm × 37.5mm × 3.0mm

* Package: LGA

* Weight: Approx. 8.6g

* Control via AT Commands: 3GPP TS 27.007 and enhanced AT Commands

* Voice Speech Codec Modes: HR, FR, EFR, AMR, AMR-WB

* Echo Arithmetic: Echo Cancellation, Noise Reduction

* eCall: Accident, Emergency Services

* VoLTE: Digital Audio and VoLTE (Voice over LTE)(Optional)


* Interfaces
- USB 2.0, OTG × 1
- UART × 3 (Main UART, UART2 and Debug UART
- I2C × 1 (Optional)
- PCM/I2S × 1
- SPI × 2 (× 1 Optional)
- SDIO × 2
- ADC × 3
- Ethernet, SGMII interface × 1 (Optional)
- GPIO > 15
- USIM × 1

* Special Features
- GNSS: Embedded, GPS/GLONASS/BeiDou/Galileo(Optional)
- Interfaces for Wi-Fi/BT: Optional
- Interfaces for DSRC-V2V,V2P 802.11p: Optional
- ESD/EMI Protection: Internal specific circuits and components
- DTMF: Supported
- FOTA: Supported
- Jamming Detection: Supported
- Temperature Management: Supported
- Security
> Secure boot
> Secure file system
> Secure execution environment
> Code/user data backup
- Automotive Quality Process: PPAP & APQP compliant
- USB Drivers
> Windows XP, Windows Vista, Windows 7,
> Windows 8/8.1, Windows CE 5.0/6.0/7.0,
> Linux 2.6 or later, Android 2.3/4.0/4.2/4.4/5.0
