Huawei MH5000 (MH5000-31) 5G Industrial Module

* Huawei 5G Wireless Module


* World's 5G Car Module


* Support C-V2X Technology and self-driving


* Based on Huawei Balong 5000 chipset


* Multi-mode 5G/4G/3G/2G

Sign up for price alert

Availability: In stock

Regular Price: $899.00

Special Price $699.00

Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!

* Required Fields

Details
Details

Huawei MH5000 is the world’s first 5G wireless cellular module based on the Balong 5000 5G multimode chipset for the automotive industry. The world’s first 5G car module will promote the automotive industry to move towards the 5G era with high speed and high quality.

Huawei MH5000 5G module integrates C-V2X technology for future smart cars and Huawei's vehicle C-V2X solution has successfully completed urban open road testing in various test areas in China cities.


Huawei MH5000-31 5G Module Specifications:

* Huawei 5G Wireless Module

* World's 5G industrial Module

* Compliant with 3GPP R15

* Support C-V2X Technology and self-driving

* Based on Huawei Balong 5000 chipset

* Multi-mode 5G/4G/3G/2G

* Application for Industrial IoT

* Physical Dimensions
- Dimensions (L × W × H): 52 mm × 52 mm × 3.55 mm(LGA), 70 mm × 52 mm × 4.55 mm(Mini PCIe)
- Weight: <15g

* Form factor: LGA package, Mini PCIe package or M.2 package

* Operating Bands

- 5G NR: n1, n78, n79, n41
- 4G LTE: B1, B3, B5, B8, B34, B38, B39, B40, B41
- 3G UMTS/WCDMA: B1, B8
- 2G: 1800MHz/900MHz
- 5G NR: 4 x 4 MIMO Band: n1, n78, n79, n41
- LTE: UL 2CA: 40C, 41C
- LTE DL 4 x 4 MIMO Band: B1, B39, B41
- LTE: CA combination(DL 2CC): 1C, 1A-3A, 1A-8A, 3C, 3A-8A, 38C, 39C, 39A-41A, 40C, 41C
- LTE: CA combination(DL 3CC): 1A-3A-8A, 3C-8A, 39C-41A, 39A-41C, 40D, 41D
- LTE: CA combination(DL 4CC): 39A-41D, 39C-41C
- EN-DC: DC_39A-n41A, DC_1A-n78A, DC_3A-n78A, DC_3A-n79A, DC_3C-n78A, DC_5A-n78A, DC_8A-n78A, DC_3A-n41A, DC_39A-n79A

* Power Class
- 5G NR: Power Class 2
- LTE: Power Class 3
- WCDMA :Power Class 3
- GSM/GPRS 900: Power Class 4
- GSM/GPRS1800: Power Class 1
- EDGE: Power Class E2

* Main Data Through(Peak)
- 5G NR DL/UL:2Gbps/230Mbps[*]
- LTE TDD DL/UL:1Gbps/30Mbps
- LTE FDD DL/UL:600Mbps/75Mbps
- DC-HSPA+: 42Mbps/5.76Mbps
- HSPA+: 21Mbps/5.76Mbps
- EDGE:236.8kbps/236.8Kbps
- GPRS:85.6kpbs/85.6kpbs

* Application Interface
- 1 x USB2.0
- 2 x PCIe
- 2 x UART
- 2 x SPI
- 1 x RGMII
- 1 x SIM
- 3 x PCM/I S
- 2 x I C
- 4 x cell ANTs
- 6 x ADCs
- 15 x GPIO
- 1 x JTAG
- 1 x SDIO

* Power Voltage
- DC 3.8V~4.2V (4.0V Recommended)
- DC 4.75V~5.25V (TBD)

* Antenna Interface
- Ant 1, TRX, 824MHz~5GHz
- Ant 2, TRX, 824MHz~5GHz
- Ant 3, RX, 1805MHz~5GHz
- Ant 4, RX, 1805MHz~5GHz

* Operating Temperature
- Normal operating temperature: -20℃~70℃(TBD)
- Extended operating temperature: -40℃~85℃(TBD)

* Storage Temperature: -40℃~95℃(TBD)

* Humidity: RH5% to RH95%

* OS Support: Linux/Ubuntu/Android/Windows

* Common Software
- Data Service(IPv4,IPv6)
- SMS Service
- Voice(VoLTE)
- CS Fallback
- eUICC
- Secure boot
- AT Command

* Certifications:CCC

---------------------------------------------------------------------------------

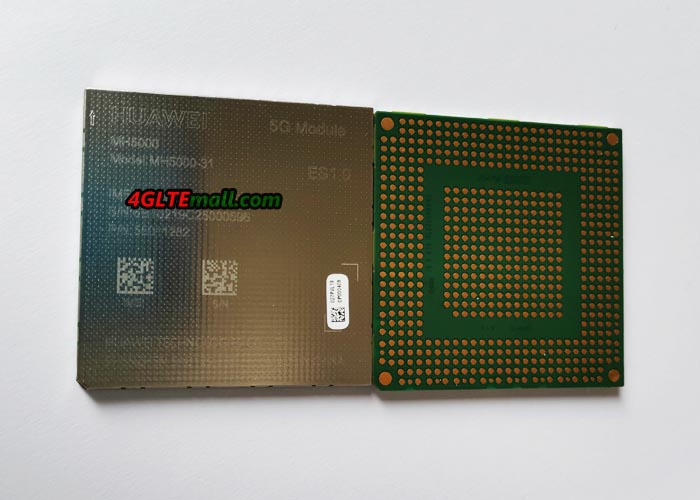

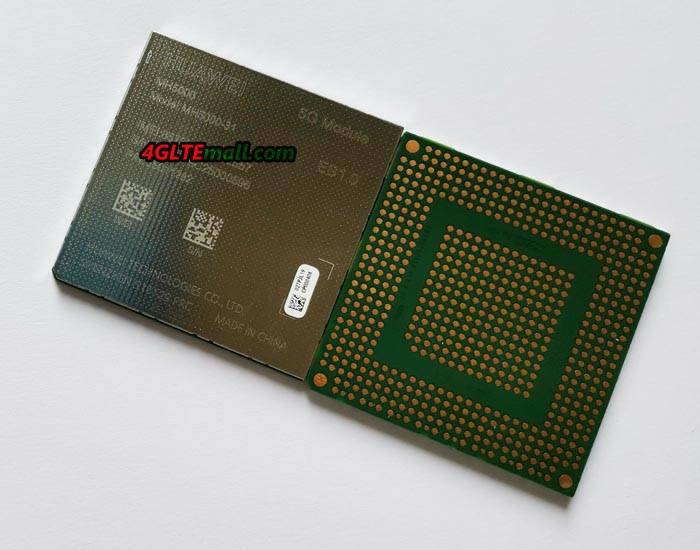

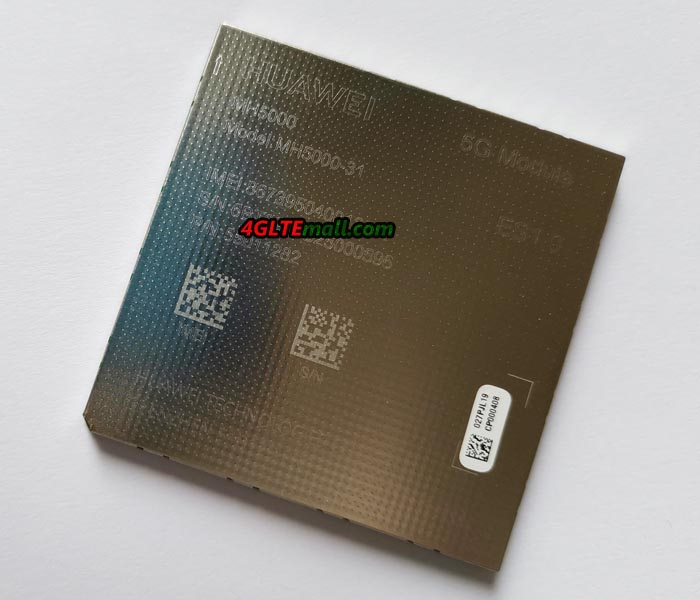

Huawei MH5000-31 (LGA package) 5G Module Images:

Huawei MH5000 MH5000-31 5G Module

Huawei MH5000 MH5000-31 5G Module

Huawei MH5000 MH5000-31 5G Module

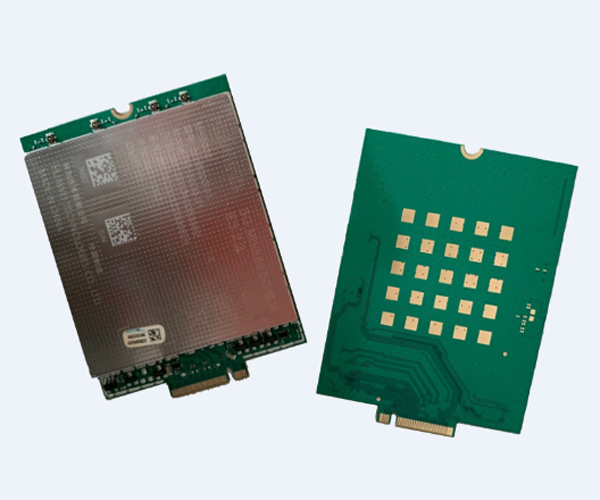

Huawei MH5000-31 (M.2 package) 5G Module Images:

Huawei MH5000 MH5000-31 M.2 5G Module

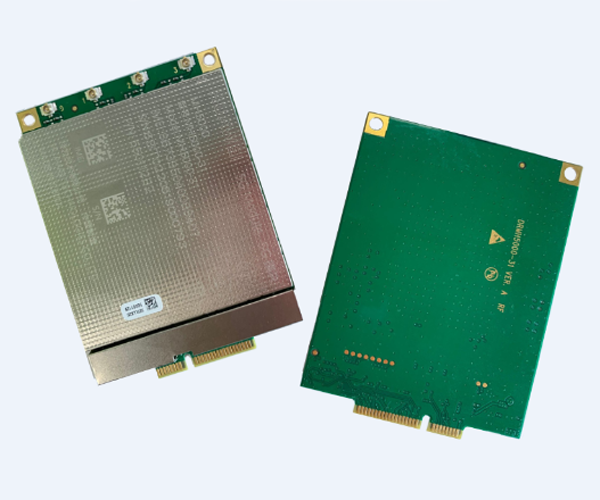

Huawei MH5000-31 (MINI PCIe package) 5G Module Images:

Huawei MH5000 MH5000-31 MINI PCIe 5G Module
