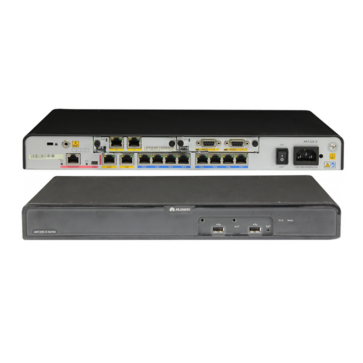

Huawei AR1220-S Enterprise Router

* Forwarding capacity: 350 Kpps

* WAN speed with services: 25Mbps

* Fixed port: 8*FE, 2*GE

* Slot: 2*SIC

Sign up for price alert

Availability: In stock


Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!


Huawei AR1220-S is a next-generation enterprise-class routers based on the Huawei proprietary Versatile Routing Platform (VRP), which take advantage of Huawei long-term accumulation in data communication, wireless and access network fields. The AR1200-S integrates routing, switching, 3G, WLAN and security functions. It uses the multi-core CPU and non-blocking switching structure and provides industry-leading system performance and extensibility, meeting service development requirements in the future. The Huawei AR1200-S provides an integrated solution for enterprise networks, speeds up multi-service provision, and protects customers' investments.

Huawei AR1220-S Enterprise Router features:

* Forwarding capacity: 350 Kpps

* WAN speed with services: 25Mbps

* Fixed port: 8*FE, 2*GE

* Slot: 2*SIC


The AR1200-S supports various interface cards, including Ethernet interface cards, E1/T1/PRI/VE1/VT1 interface cards, synchronous/asynchronous interface cards, ADSL2+/G.SHDSL interface cards and ISDN interface cards. These cards are classified into SIC (Smart Interface Card) cards and WSIC (Double-Width SIC) cards depending on slot type.


Huawei AR1220-S Technical Specifications:

* Forwarding capacity: 350 Kpps

* WAN speed with services: 25 Mbps

* Device switching capacity: 8 Gbps

* Slot switching bandwidth: SIC & WSIC slots 2 Gbps

* Fixed WAN ports: 2 * GE

* Fixed LAN ports: 8 * FE

* SIC slots: 2

* WSIC slots (default/max): 0/1

* WiFi: n/a

* USB 2.0 ports: 2

* Mini-USB ports: 1

* Serial auxiliary/console port: 1

* Memory: 512 MB

* Flash: 256 MB

* Max. power: 54 W

* PoE power: n/a

* AC power: 100 V-240 V

* Frequency: 50 Hz/60 Hz

* Dimensions (width x depth x height): 390 mm x 220 mm x 44.5 mm

* Weight: 2.9 KG (without interface cards)

* Ambient temperature: 0°C-40°C

* Relative humidity: 5-90% (non-condensing)


* WLAN: AP management, WLAN QoS (WMM), WLAN security (WEP/WPA/WPA2/key management), WLAN radio management (802.11b/g/n), WLAN user management

* 3G: CDMA 2000 EV-DO Rev A, WCDMA, TD-SCDMA, individual 3G uplink/backup link

* LAN: IEEE 802.1, IEEE 802.3, VLAN management, MAC address management, MSTP

* IPv4 unicast routing: Routing policy, static route, RIP, OSPF, IS-IS

* Multicast: IGMP V1/V2/V3, IGMP-Snooping V1/V2/V3, PIM SM, PIM DM, MSDP


* QoS: Priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP+WRR; WAN interface: PQ/CBWFQ), MQC (traffic classifier, traffic behavior, and traffic policy), H-QoS, WLAN QoS, FR QoS

* Security: ACL, firewall, 802.1x authentication, MAC address authentication, Web authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, IP Source Guard, DHCP snooping, CPCAR, blacklist, IP source tracing

* Management and maintenance: Upgrade management, device management, Web network management system, GTL, SNMP, NTP, CWMP, Auto-Config, deployment using USB disk, NetConf
