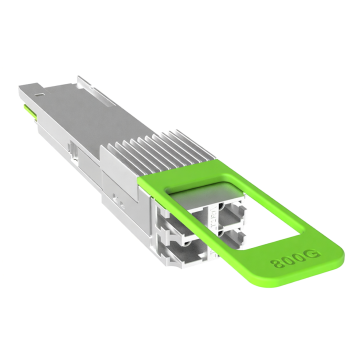

Eoptolink EOLO-138HG-5H-XMX 800G OSFP DR8 Optical Transceiver Module

Eoptolink EOLO-138HG-5H-XMX is a high-performance 800G OSFP DR8 optical transceiver module designed for high-density 800 Gigabit Ethernet links, commonly deployed in AI/ML compute clusters and hyperscale data center interconnects.

Eoptolink EOLO-138HG-5H-XMX Optical Transceiver Specifications:

General Information
-------------------------------------------
- Manufacturer: Eoptolink
- Part Number: EOLO-138HG-5H-XMX
- Form Factor: OSFP (Octal Small Form-factor Pluggable)
- Data Rate: 800 Gbps (Supports up to 850 Gbps line rate)
- Application: AI/ML compute clusters, hyperscale data center fabrics

Optical & Electrical Specifications
-------------------------------------------
- Optical Interface: Single MPO-16 connector
- Reach / Distance: Up to 500 meters (500m)
- Fiber Type: Single-Mode Fiber (SMF)
- Center Wavelength: 1310 nm
- Modulation: PAM4 (8 channels x 106.25 Gbps)
- Electrical Interface: 800GAUI-8 (8x106.25 Gbps PAM4 lanes)

Power & Environmental
-------------------------------------------
- Supply Voltage: Single 3.3V power supply
- Power Consumption: Max < 16 Watts (Typically <16W under full load)
- Operating Temperature: 0°C to 70°C (Commercial Grade)
- Mechanical Layout: Flat-top universal housing design

Protocols & Features
-------------------------------------------
- Management Interface: Compliant with CMIS 5.0 (or higher) standard
- Diagnostics: Full DDM / DOM (Digital Diagnostic Monitoring) support
- Forward Error Correction: Requires Host-side KP4 FEC for 500m links
