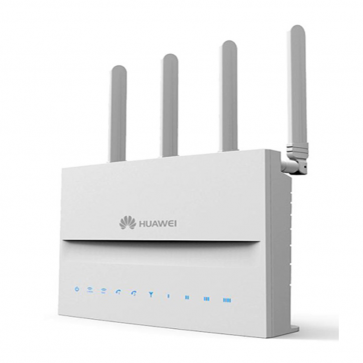

Huawei B5338-68 4G TD-LTE Indoor CPE

* Huawei B5338-68 TD-LTE indoor CPE


* Category: LTE DL Cat12, UL Cat13


* Peak Rate: DL 420Mbps, UL 30Mbps


* Support LTE TDD Band 38/40/41/42/43


* 4x4 MIMO + 2CC CA


* 2x2 MIMO, WiFi 802.11ac/b/g/n, dual band

Sign up for price alert

Availability: In stock

$459.00

Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products.

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!

* Required Fields

Details
Details

Huawei B5338-68 is a 4G LTE Cat.13 indoor CPE supporting peak download speed to 420mbps and upload speed to 30mbps. With Huawei HiSilicon Balong 750 chipset, Huawei B5338-68 supports LTE Band 38/40/41/42/43 and 4 x 4 MIMO technology.


Huawei B5338-68 TD-LTE CPE Technical Specifications:


* Form: Indoor CPE

* Chip platform: HiSilicon Balong750

* Category: LTE DL Cat12, UL Cat13

* Peak Rate: DL 420Mbps, UL 30Mbps

* Protocol Version: 3GPP Release 10/11/12

* Operating Frequency: LTE TDD Band 38/40/41/42/43

* Carrier Aggregation
- DL 4x4 MIMO + 2CC CA
- DL 3CC CA
- UL 2CC CA

* Modulation
- DL 64QAM, 16QAM, QPSK
- UL 64QAM, 16QAM, QPSK

* Channel Bandwidth: 5 MHz, 10 MHz, 15 MHz, 20 MHz

* TX Power: 23 dBm ± 2 dB

* Antenna
- LTE antenna: 1T4R
- 2300–2690 MHz: 2 dBi
- 3400–3800 MHz: 5 dBi

* MIMO: DL 2x2/4x4 MIMO

* LTE Transmission Mode:
- LTE TDD: TM2, 3, 4, 7, 8, 9
- DL 4*4 MIMO @ TM3/4/9

* OS:
- Windows 2000 SP4/XP SP2/Vista/Win7/Win8/Win10
- Mac later than OS X 10.4
- Linux

* Interface: Two LAN Data, Wi-Fi AP, Two Voice, One USB

* IP Networking: L2/L3 VPN/Multi-APN/IPv4/IPv6/IPv6/v4 dual stack

* Voice/VoIP: SIP with G.729a/b, G.711a-law, G.711u-law Code

* Terminal Management: TR069, SNMPv3, FOTA

* Wi-Fi: 2x2 MIMO 802.11ac/b/g/n, 2.4 GHz and 5 GHz Wi-Fi

* Wi-Fi Encryption: 64-/128-bit WEP, WPA, WPA2

* Protection Class: IP2X

* Dimensions: 217.5mm * 56 mm * 170 mm

* Weight: 650g
