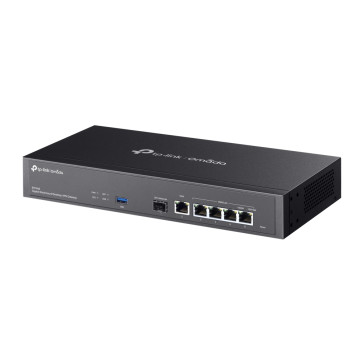

TP-Link Omada ER7406 Gigabit Rackmount/Desktop VPN Gateway

TP-Link Omada ER7406 VPN Router Specifications:

SECURITY
-------------------------------------------------------------
* Access Control: Source/Destination IP Based Access Control

* Filtering
• WEB Group Filtering
• URL Filtering
• Web Security

* ARP Inspection
• Sending GARP Packets
• ARP Scanning
• IP-MAC Binding

* Attack Defense
• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN

HARDWARE FEATURES
-------------------------------------------------------------
* Standards and Protocols
• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP

* Interface
• 1 Gigabit SFP WAN/LAN Port
• 1 Gigabit WAN Port
• 4 Gigabit LAN/WAN Ports
• 1 USB 3.0 Port (supports USB LTE dongle and USB storage)

* Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)

* Fan Quantity: Fanless

* Button: Reset Button

* Power Supply: 100-240VAC, 50/60Hz

* PoE Budget: -

* Flash: 128 MB NAND

* DRAM: 512 MB DDR4

* LED: PWR, SYS, SFP, USB, WAN(1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)

* Dimensions ( W x D x H ): 11.6 × 5.5 × 1.7 in (294 × 140 × 44 mm)

* Protection: 4 kV surge protection

* Enclosure: Steel

* Mounting:
• Desktop
• Rackmountable

* Max Power Consumption:
• 7.5 W (with USB 3.0 connected)
• 4.5 W (without USB 3.0 connected)

PERFORMANCE
-------------------------------------------------------------
* IPS Throughput
TCP: 229 Mbps;
UDP: 188 Mbps

* DPI Throughput
TCP: 933 Mbps;
UDP: 927 Mbps

* GRE
• Unencrypted: 611.9 Mbps
• Encrypted: 325.0 Mbps

* WireGuard VPN： 341.3 Mbps

* Concurrent Session: 150,000

* New Sessions /Second: 5,300

* NAT (Static IP): 945.3 Mbps / 940.5 Mbps

* NAT(DHCP) : 939.6 Mbps / 940.9 Mbps

* NAT(PPPoE) : 943.6 Mbps / 940.9 Mbps

* NAT (L2TP): 880.1 Mbps / 859.0 Mbps

* NAT (PPTP)：855.0 Mbps / 907.2 Mbps

* IPsec VPN Throughput
• ESP-SHA1-AES256: 617.1 Mbps
• ESP-SHA256-AES256: 592.8 Mbps
• ESP-SHA384-AES256: 592.4 Mbps
• ESP-SHA512-AES256: 604.5 Mbps

* OpenVPN: 139.1 Mbps

* L2TP VPN Throughput
• Unencrypted: 977.4 Mbps
• Encrypted: 334.6 Mbps

* PPTP VPN Throughput
• Unencrypted: 1064.1 Mbps
• Encrypted: 206.8 Mbps

* IPsec VPN Throughput
• SHA1-AES256: 2140.45 Mbps
• SHA2-AES256: 2080.20 Mbps

* SSL VPN Throughput: 131.6 Mbps

* 66 Byte Packet Forwarding Rate: 1,453,489 pps / 1,453,488 pps

* 1,518 Byte Packet forwarding rate: 81,279 pps / 81,275 pps

BASIC FUNCTIONS
-------------------------------------------------------------
* WAN Connection Type
• Static IP
• Dynamic IP
• PPPoE(supports MRU Configuration)
• PPTP
• L2TP

* MAC Clone: Modify WAN/LAN MAC Address (LAN MAC Address can be modified only in Standalone Mode)

* DHCP
• DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP

* IPv6: StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode

* VLAN: 802.1Q VLAN

* IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

ADVANCED FUNCTIONS
-------------------------------------------------------------
* Advanced Routing
• Static Routing
• Policy Routing
• RIP (available in Standalone Mode)
• OSPF (available in Standalone Mode)

* Bandwidth Control:
• IP/Port-based Bandwidth Control

* Load Balance
• Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing, Failover)
• Online Detection

* NAT
• One-to-One NAT
• Multi-Net NAT
• Port Forwarding
• Port Triggering§
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP

* Session Limit: IP-based Session Limit

VPN
-------------------------------------------------------------
GRE: √ (Only in Standalone Mode)
SD-WAN: √ (Only in Controller Mode)
SSL VPN: 50 Tunnels

* IPsec VPN
• 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)

* PPTP VPN
• PPTP VPN Server
• PPTP VPN Client (10)**
• 50 Tunnels
• PPTP with MPPE Encryption

* L2TP VPN
• L2TP VPN Server
• L2TP VPN Client (10)**
• 50 Tunnels
• L2TP over IPSec

* OpenVPN
• OpenVPN Server
• OpenVPN Client (5)**
• 55 OpenVPN Tunnels
• "Certificate + Account" Mode
• Full Mode

* WireGuard VPN: • 20 Tunnels

AUTHENTICATION
-------------------------------------------------------------
Web Authentication • No Authentication
• Simple Password*
• Hotspot (Local User /Voucher*/ SMS/Radius*)
• External Radius Server
• External Portal Server*
• LDAP§

MANAGEMENT
-------------------------------------------------------------
* Omada App: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

* Centralized Management
• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller

* Cloud Access: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

* Service: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)

* Maintenance
• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute) (only in Standalone Mode)
• NTP Synchronize (only in Standalone Mode)
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support

* Zero-Touch Provisioning: Yes. Requires the use of Omada Cloud-Based Controller.

* Management Features
• Automatic Device Discovery*
• Batch Configuration*
• Batch Firmware Upgrading*
• Intelligent Network Monitoring*
• Abnormal Event Warnings*
• Unified Configuration*
• Reboot Schedule*

OTHERS
-------------------------------------------------------------
* Certification: CE, FCC, RoHS

* Package Contents
• ER7406
• Power Cord
• Quick Installation Guide
• Rackmount Kit

* System Requirements:
• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10
• MAC OS, NetWare, UNIX or Linux

* Environment
• Operating Temperature: 0 °C to 50 °C (32 °F to 122°F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing
