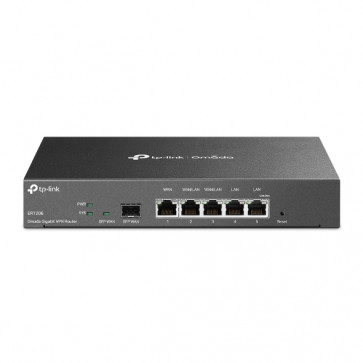

TP-Link ER7206 Omada Gigabit VPN Router
* TP-Link Gigabit VPN Router
* Integrated into Omada SDN
* Up to 4× WAN Ethernet Ports
* 1 gigabit SFP and 5 gigabit RJ45 ports
* Supports up to 100× LAN-to-LAN IPsec, 50× OpenVPN*, 50× L2TP, and 50× PPTP VPN connections.
Availability: In stock
Highlights:
* Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
* Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
* Gigabit Ports: 1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity.
* Up to 4 WAN Ports: 1 gigabit SFP WAN port, 1 gigabit RJ45 WAN port, 2 gigabit WAN/LAN ports optimize bandwidth usage.
* Highly Secure VPN: Supports up to 100× LAN-to-LAN IPsec, 50× OpenVPN*, 50× L2TP, and 50× PPTP VPN connections.
* Abundant Security Features: Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data.
TP-Link Omada ER7206 VPN Router Specifications:
SECURITY
* Access Control: Source/Destination IP Based Access Control
* Filtering
WEB Group Filtering§
URL Filtering
Web Security
* ARP Inspection:
• Sending GARP Packets§
• ARP Scanning§
• IP-MAC Binding
* Attack Defense
• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
HARDWARE FEATURES
* Standards and Protocols
• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
* Interface
• 1 Fixed Gigabit SFP WAN Port
• 1 Fixed Gigabit RJ45 WAN Port
• 2 Fixed Gigabit RJ45 LAN Ports
• 2 Changeable Gigabit RJ45 WAN/LAN Ports
* Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
* Fan Quantity: Fanless
* Button: Reset Button
* Power Supply: 100–240 V~50/60 Hz
* PoE Budget:
* Flash: SPI 4MB + NAND 128MB
* DRAM: 512MB
* LED: PWR, SYS, SFP WAN, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
* Dimensions ( W x D x H ): 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
* Protection: 4 kV surge protection
* Enclosure: Steel
* Mounting: Desktop
* Max Power Consumption: 8.95W
PERFORMANCE
* IPS Throughput
TCP: 200 Mbps;
UDP: 150 Mbps
* DPI Throughput
TCP: 931 Mbps;
UDP: 902 Mbps
* WireGuard VPN:177.2 Mbps
* Concurrent Session: 150,000
* New Sessions /Second: 5,500
* NAT (Static IP): 940.3 Mbps / 940.2 Mbps
* NAT(DHCP): 940.3 Mbps / 940.4 Mbps
* NAT(PPPoE): 939.7 Mbps / 937.9 Mbps
* NAT (L2TP): 918.0 Mbps / 917.9 Mbps
* NAT (PPTP): 918.9 Mbps / 914.7 Mbps
* IPsec VPN Throughput (AES256): 291.6 Mbps
* IPsec VPN Throughput: 291.6 Mbps
* OpenVPN: 34.2 Mbps
* 66 Byte Packet forwarding rate: 486,918 pps / 488,372 pps
* 1,518 Byte Packet forwarding rate: 81,274 pps / 81,274 pps
BASIC FUNCTIONS
* WAN Connection Type
• Static/Dynamic IP
• PPPoE
• PPTP
• L2TP
* MAC Clone: Modify WAN/LAN MAC Address†
* DHCP
• DHCP Server/Client
• DHCP Address Reservation
• Multi-net DHCP
• Multi-IP Interfaces
* IPv6: support
* VLAN: 802.1Q VLAN
* IPTV: IGMP v2/v3 Proxy
ADVANCED FUNCTIONS
* ACL: IP/Port/Protocol/Domain Name Filtering
* Advanced Routing
• Static Routing
• Policy Routing
* Bandwidth Control:
• IP/Port-based Bandwidth Control
• Guarantee & Limited Bandwidth
* Load Balance
• Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing, Failover)
• Online Detection
* NAT
• One-to-One NAT§
• Multi-Net NAT
• Virtual Server
• Port Triggering§
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
* Security
• SPI Firewall
• VPN Passthrough
• FTP/H.323/PPTP/SIP/IPsec ALG
• DoS Defence, Ping of Death
• Local Management
* Session Limit: IP-based Session Limit
MANAGEMENT
* Omada App: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
* Centralized Management:
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
* Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
* Service:Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
* Maintenance
• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3*
• Diagnostics (Ping & Traceroute)§
• NTP Synchronize§
• Syslog Support
* Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.
* Management Features
• Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
• ZTP (Zero-Touch Provisioning)
OTHERS
* Certification: CE, FCC, RoHS
* Package Contents
• ER7206
• Power Cord
• Quick Installation Guide
* Environment
• Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
