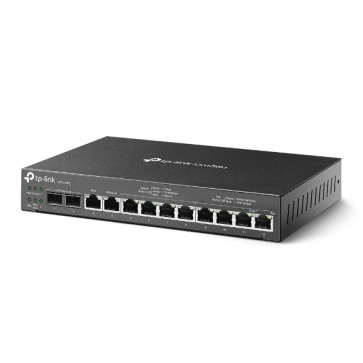

TP-Link Omada ER7212PC Omada 3-in-1 Gigabit VPN Router

Highlights:

* 3-in-1 Router: Integrates router, PoE+ output, and Omada centralized management ability altogether. Up to 10 EAPs can be centrally managed.

* Professional Hardware: Dual-Core CPU with 1GB DDR3 memory provides stellar performance for up to 12× Gigabit ports.

* Up to 4× WAN Ethernet Ports: Equipped with 2× Gigabit SFP WAN/LAN ports, 1× Gigabit RJ45 WAN port, and 1× Gigabit RJ45 WAN/LAN port.

* 110W PoE Budget: 8× 802.3at/af-compliant PoE+ RJ45 LAN ports yield a total power supply of 110W*.

* Highly Secure VPN: Supports up to 20 x LAN-to-LAN IPsec VPN, 16 x OpenVPN, and 16 x L2TP/PPTP VPN connections.

* Easy Installation: Fanless and compact design for desktop and wall mounting.

* Robust Security Features: Advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions protect your network and data.

* Centralized Management: On-premises management to locally monitor and manage devices securely or monitor and manage devices with Omada app or Web UI.

TP-Link Omada ER7212PC VPN Router Specifications:

SECURITY

* Access Control: Source/Destination IP Based Access Control

* Filtering
• URL Filtering

* ARP Inspection：-

* Attack Defense
• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN

HARDWARE FEATURES

* Standards and Protocols
• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP

* Interface
• 2 Gigabit SFP WAN/LAN ports
• 1 Gigabit WAN port
• 1 Gigabit LAN/WAN port
• 8 Gigabit LAN ports

* Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)
EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m)
EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)

* Fan Quantity: Fanless

* Button: Reset Button

* Power Supply: 53.5VDC/2.43A Adapter

* PoE Budget: 8 ports PoE+ output, 110 W PoE Budget

* Flash: 8Mb Nor + 4 GB EMMC

* DRAM: 1 GB DDR3

* LED: PWR, SYS, CLOUD, PoE Max, SFP 1, SFP 2, WAN (Speed, Link/Act), LAN (Speed, Link/Act)

* Dimensions ( W x D x H ): 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)

* Protection: 4 kV surge protection

* Enclosure: Steel

* Mounting: Desktop/Wall-mount

* Max Power Consumption:
• 133.2W with PoE Max
• 13.88W without PoE

PERFORMANCE

* Concurrent Session: 24,980

* New Sessions /Second: 1,900

* NAT (Static IP): 935.5 Mbps / 942.1 Mbps

* NAT(DHCP): 940.2 Mbps / 941.7 Mbps

* NAT(PPPoE): 913.1 Mbps / 935.2 Mbps

* NAT (L2TP): 545.0 Mbps / 912.7 Mbps

* NAT (PPTP): 523.0 Mbps / 912.8 Mbps

* IPsec VPN Throughput (AES256): 168.5 Mbps

* IPsec VPN Throughput: AES256: 168.5 Mbps

* OpenVPN: 34 Mbps

* L2TP VPN Throughput
• Unencrypted: 845.3 Mbps
• Encrypted: 333.2 Mbps

* PPTP VPN Throughput
• Unencrypted: 1012.6 Mbps
• Encrypted: 401.4 Mbps

* 66 Byte Packet forwarding rate: 154,069 pps / 156,977 pps

* 1,518 Byte Packet forwarding rate: 81,193 pps / 81,193 pps

BASIC FUNCTIONS

* WAN Connection Type
• Static/Dynamic IP
• PPPoE
• PPTP
• L2TP

* MAC Clone: Modify WAN/LAN MAC Address†

* DHCP
• DHCP Server/Client
• DHCP Address Reservation
• Multi-net DHCP
• Multi-IP Interfaces

* IPv6: support

* VLAN: 802.1Q VLAN

* IPTV: IGMP v2/v3 Proxy

ADVANCED FUNCTIONS

* ACL: IP/Port/Protocol/Domain Name Filtering

* Advanced Routing
• Static Routing
• Policy Routing

* Bandwidth Control:
• IP/Port-based Bandwidth Control

* Load Balance
• Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing, Failover)
• Online Detection

* NAT
• Multi-Net NAT
• Virtual Server
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP

* Session Limit: IP-based Session Limit

MANAGEMENT

* Omada App: Yes.

* Centralized Management： Management of up to 2 Omada switches, and 10 Omada access points

* Cloud Access: Yes.

* Service： Dynamic DNS (Dyndns, No-IP )

* Maintenance
• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Syslog Support

* Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.

* Management Features
• Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
• Management of up to 2 Omada switches and 10 Omada access points

OTHERS
* Certification: CE, FCC, RoHS

* Package Contents
• ER7212PC
• Power Adapter
• Power Cord
• Quick Installation Guide

* System Requirements:
• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10
• MAC OS, NetWare, UNIX or Linux

* Environment
• Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing
