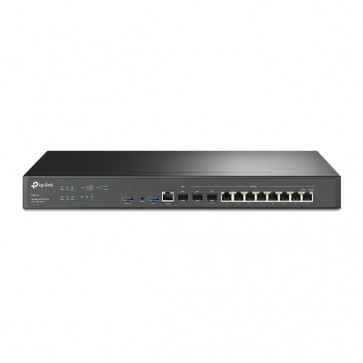

TP-Link Omada ER8411 VPN Router with 10G Ports
* TP-Link Gigabit VPN Router
* Two 10GE SFP+ Ports
* Up to 10 WAN Ports
* Integrated into Omada SDN
* Abundant Security Features
Availability: In stock
Highlights:
* Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*3, Centralized Cloud Management, and Intelligent Monitoring.
* Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
* Two 10GE SFP+ Ports: 1× WAN and 1× WAN/LAN 10GE SFP+ ports provide high-bandwidth aggregation connectivity.
* Up to 10 WAN Ports: Fiber and RJ45 WAN ports with load balance raise the utilization rate of multi-line broadband 1.
* Highly Secure VPN: Enterprise-standard SSL/ IPSec / PPTP / L2TP VPN & OpenVPN / L2TP over IPSec VPN are ideal for use across multiple branches and for WFH.
* Abundant Security Features: Powerful Firewall, DoS defense, IP/MAC/URL filtering, and IP-MAC Binding, and One-Click ALG Activation provide world-class security.
TP-Link Omada ER8411 VPN Router Specifications:
SECURITY
* Access Control: Source/Destination IP Based Access Control
* Filtering
• WEB Group Filtering
• URL Filtering
• Web Security
* ARP Inspection
• Sending GARP Packets
• ARP Scanning
• IP-MAC Binding
* Attack Defense
• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
HARDWARE FEATURES
* Standards and Protocols
• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
* Interface
• 2× 10GE SFP+ Ports (1 WAN, 1 WAN/LAN)
• 1× 1GE SFP WAN/LAN Ports
• 8× 1GE RJ45 WAN/LAN Ports
• 1× RJ45 Console Ports
• 2× USB Ports (Connecting 4G/3G Modem as WAN Backup)
* Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)
EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m)
EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5e, 6 cable (Max 100 m)
* Fan Quantity: 2
* Button: Reset Button
* Power Supply: Redundant Dual Power Supplies (100–240 VAC, 50/60 Hz)
* PoE Budget: -
* Flash: 4MB SPI NOR + 256 MB NAND
* DRAM: 4 GB DDR4
* LED: PWR, SYS, WAN, LAN, USB, FAN
* Dimensions ( W x D x H ): 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
* Protection: 4 kV surge protection
* Enclosure: Steel
* Mounting: Rack Mountable
* Max Power Consumption:
• 26.36 W (with USB 3.0 connected)
• 19.12 W (without USB 3.0 connected)
PERFORMANCE
* IPS Throughput
TCP: 4924 Mbps;
UDP: 4521 Mbps
* DPI Throughput
- TCP: 5524 Mbps;
- UDP: 3547 Mbps
* WireGuard VPN: 1411 Mbps
* Concurrent Session: 12,300,000
* New Sessions /Second: 20,000
* NAT (Static IP)
• Upload: 9445.82 Mbps
• Download: 9449.26 Mbps
* NAT(DHCP)
• Upload: 9426.83 Mbps
• Download: 9426.20 Mbps
* NAT(PPPoE)
• Upload: 9413.96 Mbps
• Download: 9102.01 Mbps
* NAT (L2TP)
• Upload: 4230.62 Mbps
• Download: 4169.53 Mbps
* NAT (PPTP)
• Upload: 3933.86 Mbps
• Download: 3821.97 Mbps
* 64 Byte Packet Forwarding Rate
• Upload: 1080 Mbps
• Download: 1030 Mbps
* IPsec VPN Throughput
• SHA1-AES256: 2140.45 Mbps
• SHA2-AES256: 2080.20 Mbps
* OpenVPN
• 1665.64 Mbps
* L2TP VPN Throughput
• Unencrypted: 5013.50 Mbps
• Encrypted: 2274.74 Mbps
* PPTP VPN Throughput
• Unencrypted: 3933.86 Mbps
• Encrypted: 3821.97Mbps
* SSL VPN Throughput: 1511.10 Mbps
* 66 Byte Packet forwarding rate: -
* 1,518 Byte Packet forwarding rate
• Upload: 9970 Mbps
• Download: 9970 Mbps
BASIC FUNCTIONS
* WAN Connection Type
• Static/Dynamic IP
• PPPoE
• PPTP
• L2TP
• Mobile Broadband: 4G/3G modem for backup via USB port‡
* MAC Clone: Modify WAN/LAN MAC Address†
* DHCP
• DHCP Server/Client
• DHCP Address Reservation
• Multi-net DHCP
• Multi-IP Interfaces
* IPv6: WAN Connection
* VLAN: 802.1Q VLAN
* IPTV: IGMP v2/v3 Proxy
ADVANCED FUNCTIONS
* ACL: IP/Port/Protocol/Domain Name Filtering
* Advanced Routing
• Static Routing
• Policy Routing
* Bandwidth Control:
• IP/Port-based Bandwidth Control
• Guarantee & Limited Bandwidth
* Load Balance
• Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing, Failover)
• Online Detection
* NAT
• One-to-One NAT
• Multi-Net NAT
• Virtual Server
• Port Triggering
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
* Security
• SPI Firewall
• VPN Passthrough
• FTP/H.323/PPTP/SIP/IPsec ALG
• DoS Defence, Ping of Death
• Local Management
* Session Limit: IP-based Session Limit
VPN
SSL VPN
• SSL VPN Server
• SSL VPN Client
• 500 OpenVPN Tunnels
* IPsec VPN
• 300 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, SHA1, SHA2, AES128, AES192, AES256 Encryption Algorithm
• IKE v1/v2
• MD5, SHA1 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
* PPTP VPN
• PPTP VPN Server
• PPTP VPN Client (32)
• 300 Tunnels (Shared with L2TP)
• PPTP with MPPE Encryption
* L2TP VPN
• L2TP VPN Server
• L2TP VPN Client (32)
• 300 Tunnels (Shared with PPTP)
• L2TP over IPSec
* OpenVPN
• OpenVPN Server
• OpenVPN Client (10)
• 110 OpenVPN Tunnels
* Web Authentication
• No Authentication
• Simple Password
• Hotspot(Local User / Voucher/ SMS / Radius)
• External Radius Sever
• External Portal Sever
• Facebook Check-In
• Instagram Follow
MANAGEMENT
* Omada App: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
* Centralized Management
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
* Cloud Access: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
* Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
* Maintenance
• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)
• NTP Synchronize
• Syslog Support
* Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.
* Management Features
• Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
OTHERS
* Certification: CE, FCC, RoHS
* Package Contents
• Omada 10G Multi-WAN Security Gateway ER8411
• Power Cord
• Rack-Mount Kit
• Quick Installation Guide
* System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux
* Environment
• Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
