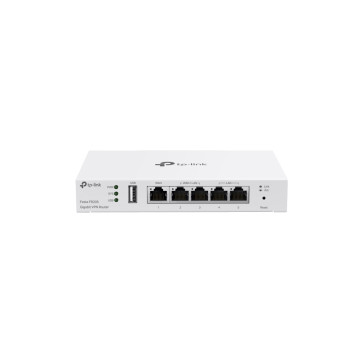

TP-Link Festa FR205 Gigabit VPN Router

TP-Link Festa FR205 Gigabit VPN Router Highlight Features:

* Free Cloud Centralized Management: Accessible via the Festa app or the web†.

* Easy Setup and Use: No professional IT technician is required. Festa App, Self-Organizing Networking, and Zero-Touch Provisioning technology make it a breeze.

* Complete Festa Ecosystem: Business-class features with consumer-inspired simplicity. It's ideal for small businesses, home offices, cafes, retail, prosumers, advanced consumers, and large households.

* 5× Gigabit Ports: 1× WAN, 2× WAN/LAN, and 2× LAN ports for high-speed Gigabit connectivity.

* 1× USB WAN Port: Enables mobile broadband backup via a 4G/3G modem‡.

* Load Balancing on Up to 3 WAN Ports: Optimizes multi-line broadband utilization.

* High-Security VPN Options: Supports IPSec, PPTP, L2TP, and OpenVPN.

* Business-Level Quality: Features an elegant metal casing and a design suitable for desktop or wall mounting.

TP-Link Festa FR205 Gigabit VPN Router Specifications:

SECURITY
------------------------------------------
Access Control: Source/Destination IP-Based Access Control
Filtering: URL Filtering

HARDWARE FEATURES
------------------------------------------
Standards and Protocols
• IIEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP

Interface
• 1× Gigabit WAN port
• 2× Gigabit WAN/LAN ports
• 2× Gigabit LAN ports
• 1× USB 2.0 (supports USB LTE dongle‡)

Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5e, 6 cable (Max 100 m)

Fan Quantity: Fanless
Button: Reset Button
Power Supply: External 12V/1A DC Adapter
Flash: 128 MB NAND
DRAM: 256 MB DDR
LED: PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB
Dimensions ( W x D x H ): 6.2×4.0×1.0 in (158×100.7×25.4 mm)
Enclosure: Steel
Mounting: Desktop/Wall-mount
Max. Power Consumption: 7.94 W

PERFORMANCE
------------------------------------------
Concurrent Session: 150,000
New Sessions /Second: 2,600

IPsec VPN Throughput
• ESP-SHA1-AES256: 259.78 Mbps
• ESP-SHA256-AES256: 260.81 Mbps
• ESP-SHA384-AES256: 37.65 Mbps
• ESP-SHA512-AES256: 38.32 Mbps

OpenVPN: • 21.70 Mbps

L2TP VPN Throughput
• Unencrypted: 640.99 Mbps
• Encrypted: 77.31 Mbps

PPTP VPN Throughput
• Unencrypted: 759.55 Mbps
• Encrypted: 75.80 Mbps

66 Byte Packet Forwarding Rate
• Upload/Download: 954.50 Mbps
• Bi-Directional: 1130.00 Mbps

1,518 Byte Packet forwarding rate
• Upload/Download: 997.50 Mbps
• Bi-Directional: 1965.00 Mbps

BASIC FUNCTIONS
------------------------------------------
WAN Connection Type
• Static IP
• Dynamic IP
• PPPoE (supports MRU Configuration)
• PPTP
• L2TP

MAC Clone: Modify WAN MAC Address

DHCP
• DHCP Server
• DHCP Options Customization
• Multi-IP Interfaces
• Multi-Net DHCP

IPv6: StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode

VLAN: 802.1Q VLAN

IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

TRANSMISSION
------------------------------------------
Load Balance
• Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing, Failover)
• Online Detection

NAT: NAT-DMZ

Routing
• Static Routing
• Policy Routing

Bandwidth Control: IP-based Bandwidth Control

VPN
------------------------------------------
IPsec VPN
• 20 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256, SHA2-384 and SHA2-512 • Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1 Authentication Algorithm, SHA2 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)

PPTP VPN
• PPTP VPN Server
• PPTP VPN Client (10)*
• 16 Tunnels
• PPTP with MPPE Encryption

L2TP VPN
• L2TP VPN Server
• L2TP VPN Client (10)*
• 16 Tunnels
• L2TP over IPSec

OpenVPN
• OpenVPN Server
• OpenVPN Client (10)*
• 50 OpenVPN Tunnels
• "Certificate + Account" Mode
• Full Mode

Management Features
------------------------------------------
Centralized Management:（via Festa App or Web UI)
APP support: Festa App
Cloud Access: Free Cloud
Service: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)

Maintenance
• Web Management Interface
• SNMP v1/v2c/v3
• Port Mirroring
• Syslog Support

Zero-Touch Provisioning: √

Management Features
• Self-Organizing Network (SON)
• Auto Topology
• Multi-site Management
• Remote Maintenance
• Batch Firmware Upgrading
• Batch Configuration
• Integrated Troubleshooting Tools
• Monitor Network Status
• Access Condition Logs and Alerts

OTHERS
------------------------------------------
Certification: CE, FCC, RoHS,VCCI, BSMI, KC

Package Content
• Festa FR205
• Power Adapter
• RJ-45 Ethernet Cable
• Quick Installation Guide
• Silicone Feet

System Requirements
• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
• MAC OS, NetWare, UNIX or Linux

Environment
• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing
