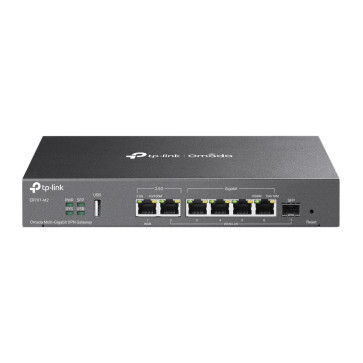

TP-Link ER707-M2 Omada Multi-Gigabit VPN Gateway

TP-Link Omada ER707-M2 VPN Router Specifications:

SECURITY
----------------------------------------------------
* Access Control: Source/Destination IP Based Access Control

* Filtering
• WEB Group Filtering
• URL Filtering
• Web Security

* ARP Inspection
• Sending GARP Packets
• ARP Scanning
• IP-MAC Binding

* Attack Defense
• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN

HARDWARE FEATURES
----------------------------------------------------
* Standards and Protocols
• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q， IEEE802.3bz
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP, WireGuard VPN

* Interface
• 1× 2.5G RJ45 WAN Port
• 1× 2.5G RJ45 WAN/LAN Port
• 1× Gigabit SFP WAN/LAN Port
• 4× Gigabit RJ45 WAN/LAN Ports
• 1× USB 2.0 Port (Supports USB storage, and LTE backup with LTE dongle)

* Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
• 2500BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)

* Fan Quantity: Fanless

* Button: Reset Button

* Power Supply: External 12V/1.5A Adapter

* PoE Budget: -

* Flash: 128 MB NAND

* DRAM: 1 GB DDR4

* LED: PWR, SYS, SFP, USB, WAN (Speed, Link/Act), LAN (Speed, Link/Act)

* Dimensions ( W x D x H ): 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)

* Protection: 4 kV surge protection

* Enclosure: Steel

* Mounting: Desktop/Wall/Rackmount

* Max Power Consumption:
14.2 W (with USB2.0 connected)
7.1 W (without USB2.0 connected)

PERFORMANCE
----------------------------------------------------
* DPI Throughput
TCP: 208 Mbps;
UDP: 161 Mbps

* DPI Throughput
TCP: 1823 Mbps;
UDP: 1272 Mbps

* NAT (Static IP): 2365.17 Mbps / 2364.45 Mbps

* NAT(DHCP): 2364.45 Mbps / 2366.04 Mbps

* NAT(PPPoE): 2347.14 Mbps / 2348.29 Mbps

* NAT (L2TP): 1308.86 Mbps / 974.10 Mbps

* NAT (PPTP): 1236.27 Mbps / 1280.99 Mbps

* IPsec VPN Throughput
• ESP-SHA1-AES256: 673.3 Mbps
• ESP-SHA256-AES256: 650.2 Mbps
• ESP-SHA384-AES256: 629.3 Mbps
• ESP-SHA512-AES256: 633.8 Mbps

* L2TP VPN Throughput
• Unencrypted: 1243.7 Mbps
• Encrypted: 561.0 Mbps

* SSL VPN Throughput: 132.24 Mbps

* 66 Byte Packet Forwarding Rate
Upload: 3,471,004pps
Download: 3,298,939pps

* 1,518 Byte Packet forwarding rate
Upload: 202,666pps
Download: 202,348pps

BASIC FUNCTIONS
----------------------------------------------------
* WAN Connection Type
• IPv4_Static IP
• IPv4_Dynamic IP
• IPv4_PPPOE
• IPv4_L2TP
• IPv4_PPTP
• IPv6_PPP
• IPv6_DHCPv6
• IPv6_Static IP
• IPv6_6to4
• IPv6_Pass-Through
• Mobile Broadband: 4G/3G modem for backup via USB port

* MAC Clone: Modify WAN/LAN MAC Address†

* DHCP
• DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces*
• Multi-Net DHCP*

* IPv6: StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode

* VLAN: 802.1Q VLAN

* IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

ADVANCED FUNCTIONS
----------------------------------------------------
* Advanced Routing
• Static Routing
• Policy Routing
• RIP (only in Standalone Mode)
• OSPF (only in Standalone Mode)

* Bandwidth Control
• IP/Port-based Bandwidth Control
• Guarantee & Limited Bandwidth

* Load Balance
• Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing§, Failover)
• Online Detection

* Load Balance
• Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing, Failover)
• Online Detection

* NAT
• One-to-One NAT§
• Multi-Net NAT
• Port Forwarding
• Port Triggering§
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP

* Session Limit: IP-based Session Limit

VPN
----------------------------------------------------
* SD-WAN: √ (Only in Controller Mode)

* SSL VPN
SSL VPN Server
60 SSL VPN Tunnels

* IPsec VPN
• 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, SHA1, AES128, AES192, AES256 Encryption Algorithm
• IKEv1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)

* PPTP VPN
• PPTP VPN Server
• PPTP VPN Clients (12)
• 60 Tunnels (Shared with L2TP)
• PPTP with MPPE Encryption

* L2TP VPN
• L2TP VPN Server
• L2TP VPN Clients (12)
• 60 Tunnels (Shared with PPTP)
• L2TP over IPSec

* OpenVPN
• OpenVPN Server*
• 10 OpenVPN Clients*△
• 16 OpenVPN Tunnels*

* WireGuard VPN • 20 Tunnels

AUTHENTICATION
----------------------------------------------------
Web Authentication
• No Authentication
• Simple Password*
• Hotspot (Local User/Voucher*/SMS*/Radius*)
• External Radius Server
• External Portal Server*
• LDAP

MANAGEMENT
----------------------------------------------------
* Omada App: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

* Centralized Management
• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller

* Cloud Access: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

* Service: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)

* Maintenance
• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3*
• Diagnostics (Ping & Traceroute)§
• NTP Synchronize§
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support

* Zero-Touch Provisioning: Yes. Requires the use of Omada Cloud-Based Controller.

* Management Features
• Automatic Device Discovery*
• Batch Configuration*
• Batch Firmware Upgrading*
• Intelligent Network Monitoring*
• Abnormal Event Warnings*
• Unified Configuration*
• Reboot Schedule*

OTHERS
----------------------------------------------------
* Certification: CE, FCC, RoHS

* Package Contents
• ER707-M2
• Power Adapter
• Quick Installation Guide
• Rackmount Kit

* System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux

* Environment
• Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% non-condensing
